FG078 –OMEGA TOUCH LMC 09-12 RAC
12

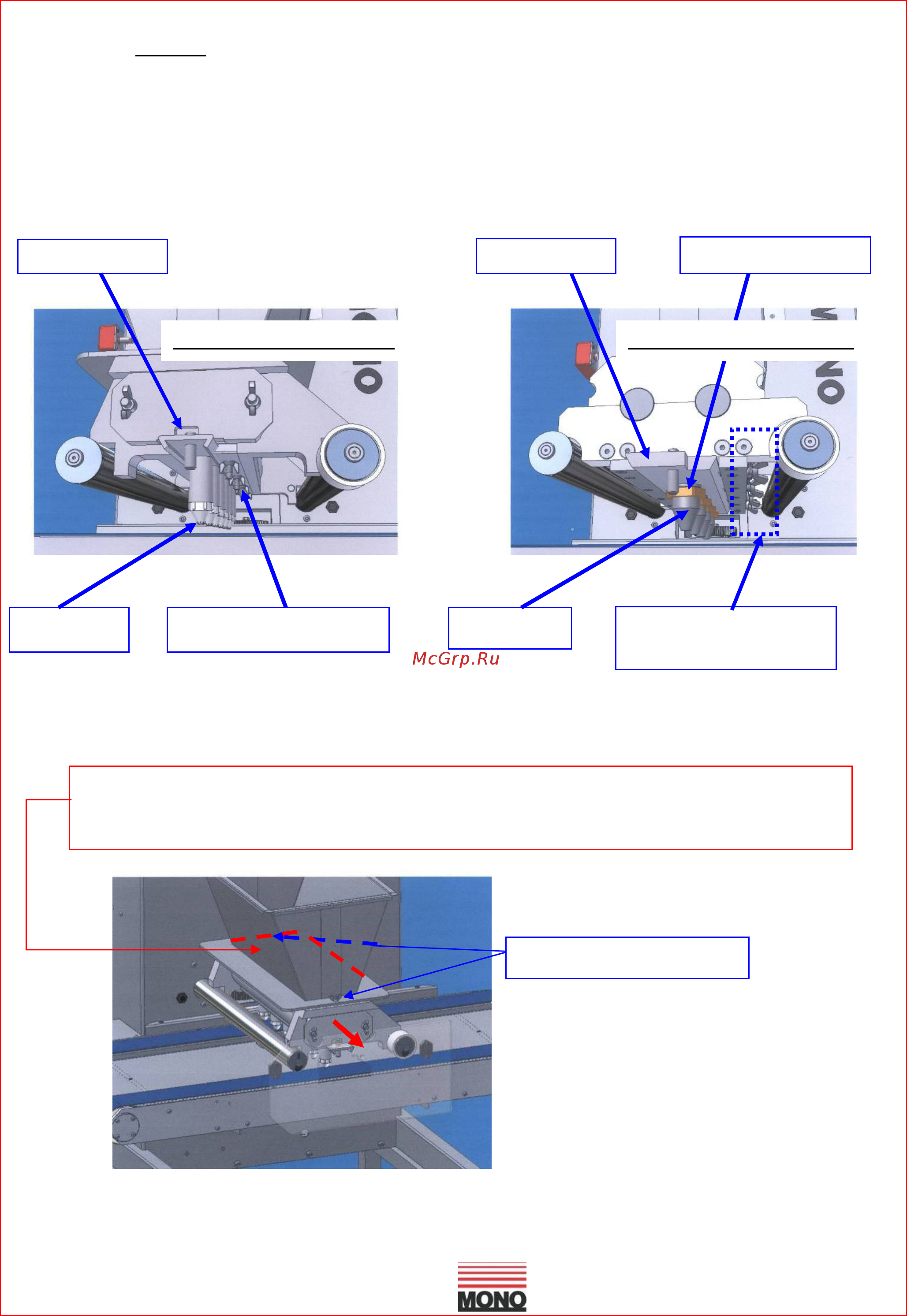

3. Slacken template clamp strip nuts or thumbscrews (depending on type of hopper)
Remove fitted template from pump assembly by sliding out to avoid subsequent
damage.
NOTE.
Thumbscrews only need to be released slightly to allow the template to slide away
from the pump assembly. If loosened too much, the template will have to be supported.
4 To reduce weight and bulk, separate and remove empty feed hopper from pump
assembly whilst still on the machine by unscrewing the wing nuts.
To gain access to the inner wingnut, slide the complete hopper away from the machine
body slightly (keep on support bars) - this will also disengage the pump assembly from
the drive shaft.
Ensure that the nuts are placed where they will not be lost.
CLAMP STRIP NUTS
TEMPLATE
NOZZLES
TEMPLATE
NOZZLES
CLAMPING
THUMBSCREWS
NOZZLE NUT
HARD DOUGH HOPPER SOFT DOUGH HOPPER
HOPPER WINGNUTS
