FG078 –OMEGA TOUCH LMC 09-12 RAC
9
10 The bakery manager or the bakery supervisor should carry out daily safety checks
on the machine.
11 Do not operate machine without hopper template and guard fitted correctly.
12 Due to the essential requirement for handling heavy components during cleaning,
it is recommended that protective footwear be worn when carrying out such
procedures.

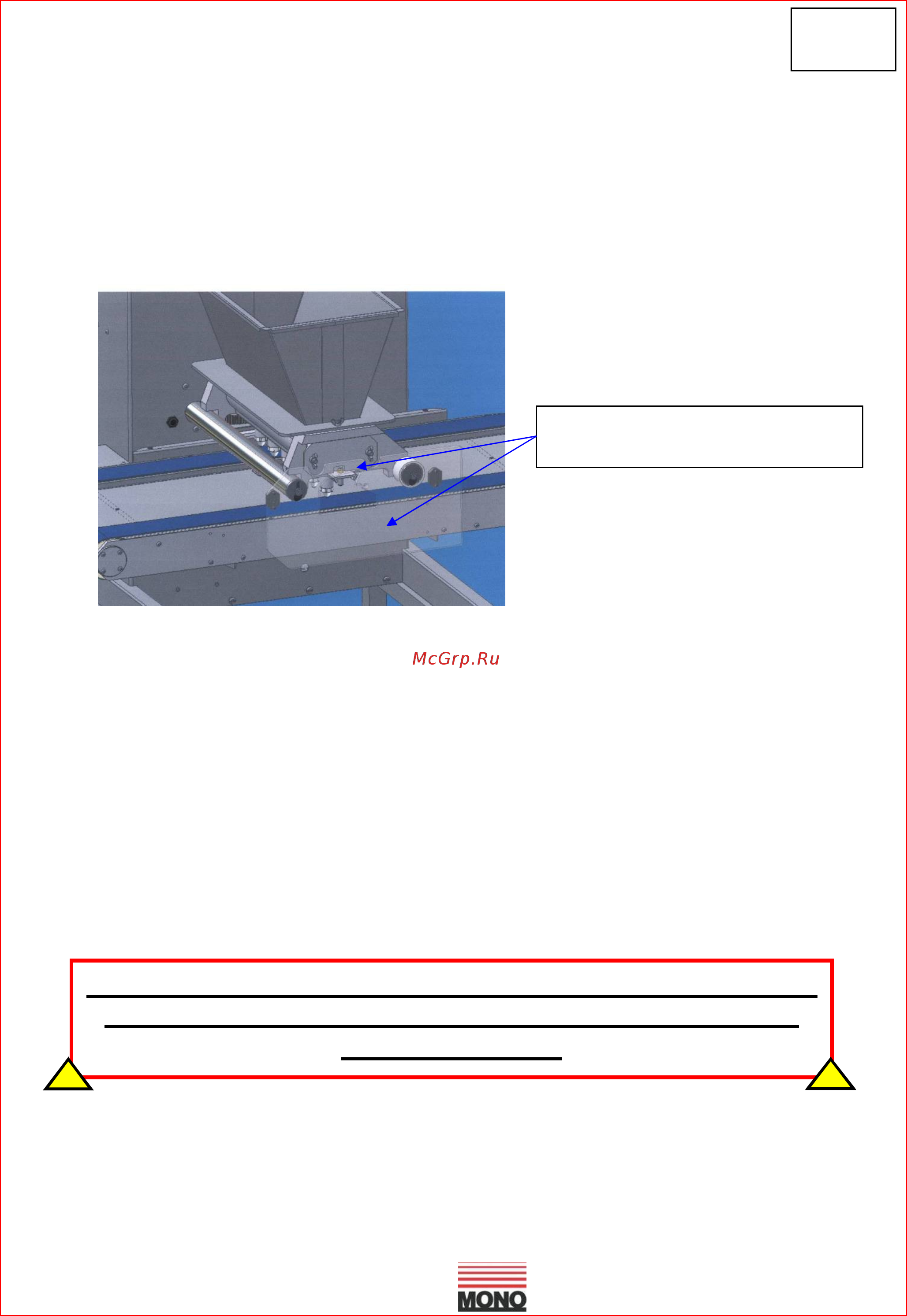

(11) HOPPER TEMPLATE AND
GUARD FITTED
ALL CLEANING AND MAINTENANCE OPERATIONS MUST
BE MADE WITH MACHINE DISCONNECTED FROM THE
POWER SUPPLY.
