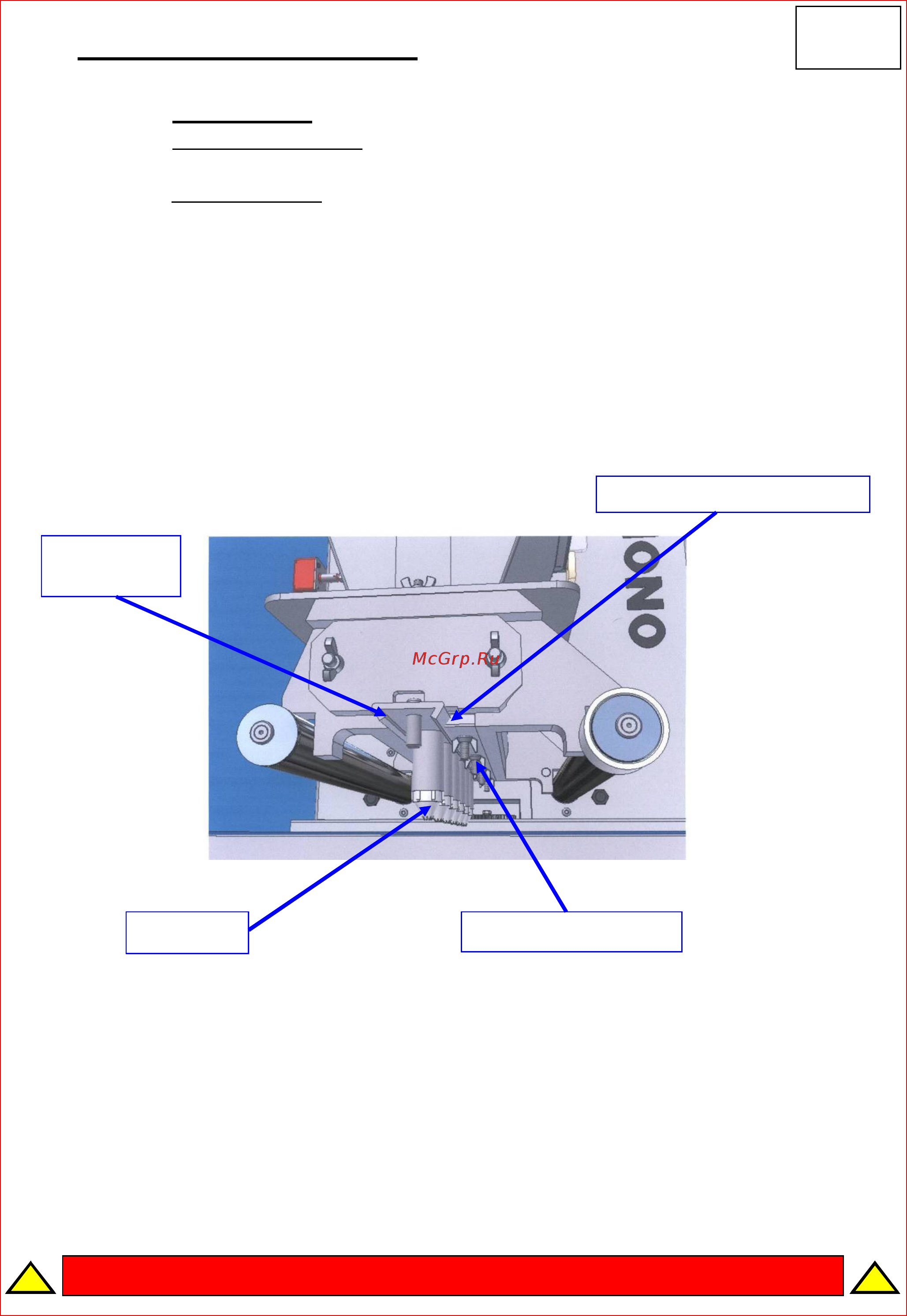

9b FITTING A TEMPLATE
• Soft dough
Non-rotary templates that can be fitted with nozzles, requires screwing the
nozzles into the threaded holes provided.
Rotary templates can have plastic nozzles screwed into nozzle holders
(straight or offset).
OR
Metal nozzles secured in place by a separate nut.
1 Select template and nozzles required.
(Nozzles are not required for sheeting, staggered or stub templates)
2 Attach nozzles to template body:
3 Slide template into matching recess at base of pump assembly until the stop is in
position.
4 Tighten nuts on clamp strip (on underside of pump assembly) to secure template.
NOTE. If the nuts are not securely tightened, leakage of mix will occur,
affecting deposit weights.
TEMPLATE
BODY
NOZZLES CLAMP STRIP NUTS
RECESS FOR TEMPLATE
DO NOT OPERATE MACHINE WITHOUT TEMPLATE FITTED
