FG078 –OMEGA TOUCH LMC 09-12 RAC
17

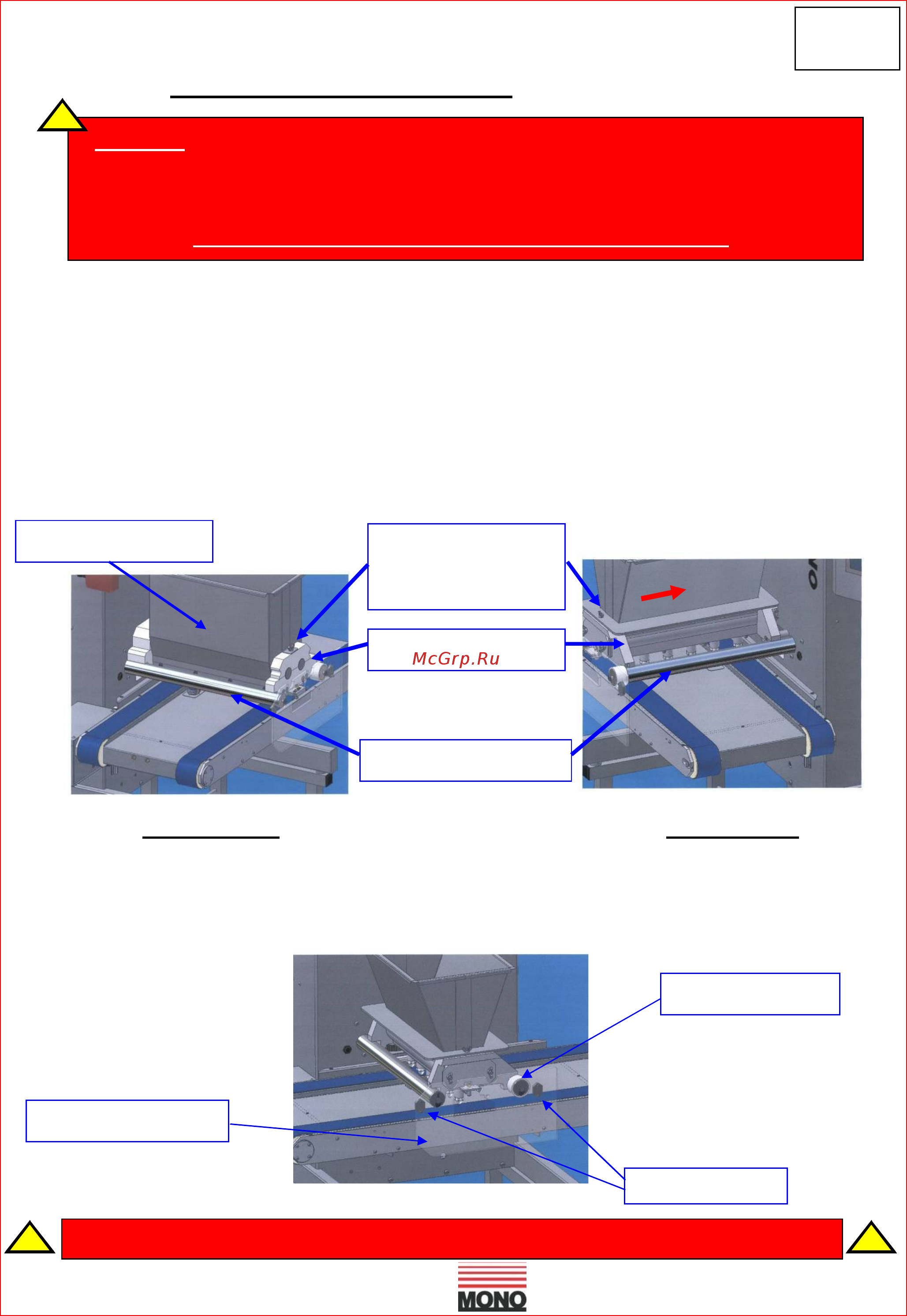

9a FITTING THE HOPPER
CAUTION SHOULD BE TAKEN WHEN FITTING HOPPER AND PUMP ASSEMBLY
AS WEIGHT EXCEEDS 25KGS ON SOME MODELS
It will need to be lifted off by two people, or
dismantled into smaller components while still on the machine.
MAKE SURE FLOOR AREA AROUND MACHINE IS CLEAN
To reduce weight and bulk fit the complete hopper assembly in two stages - first the
pump assembly onto the support bars, then the feed hopper body onto the pump
assembly.
1 By hand, align pump assembly drive gear roller with drive shaft on machine.
2 Fit hopper to pump assembly and secure with wing nuts.
3 Slide hopper on support bars until fully up against machine.
4 After the hopper is fitted, the hopper-locking ring MUST BE replaced on the
support bar and safety cover replaced with the reflectors facing towards machine
body.
PUMP ASSEMBLY
FEED HOPPER
LOCKING RING
SAFETY COVER
DO NOT OPERATE MACHINE WITHOUT TEMPLATE FITTED
REFLECTORS
Omega
Touch
FEED HOPPER
WINGNUTS
(EACH END)
HARD DOUGH SOFT DOUGH
SUPPORT BARS
