8.2. Grind adjustment system

8.2.1. Micrometrical system / Parallel micrometrical system

Rotate the grind regulator ( ) until reaching the grind level desired. Rotating the

grind regulator counterclockwise will result in a courser grind; turning the regulator

clockwise will result in a ner grinder* (Fig. 3).

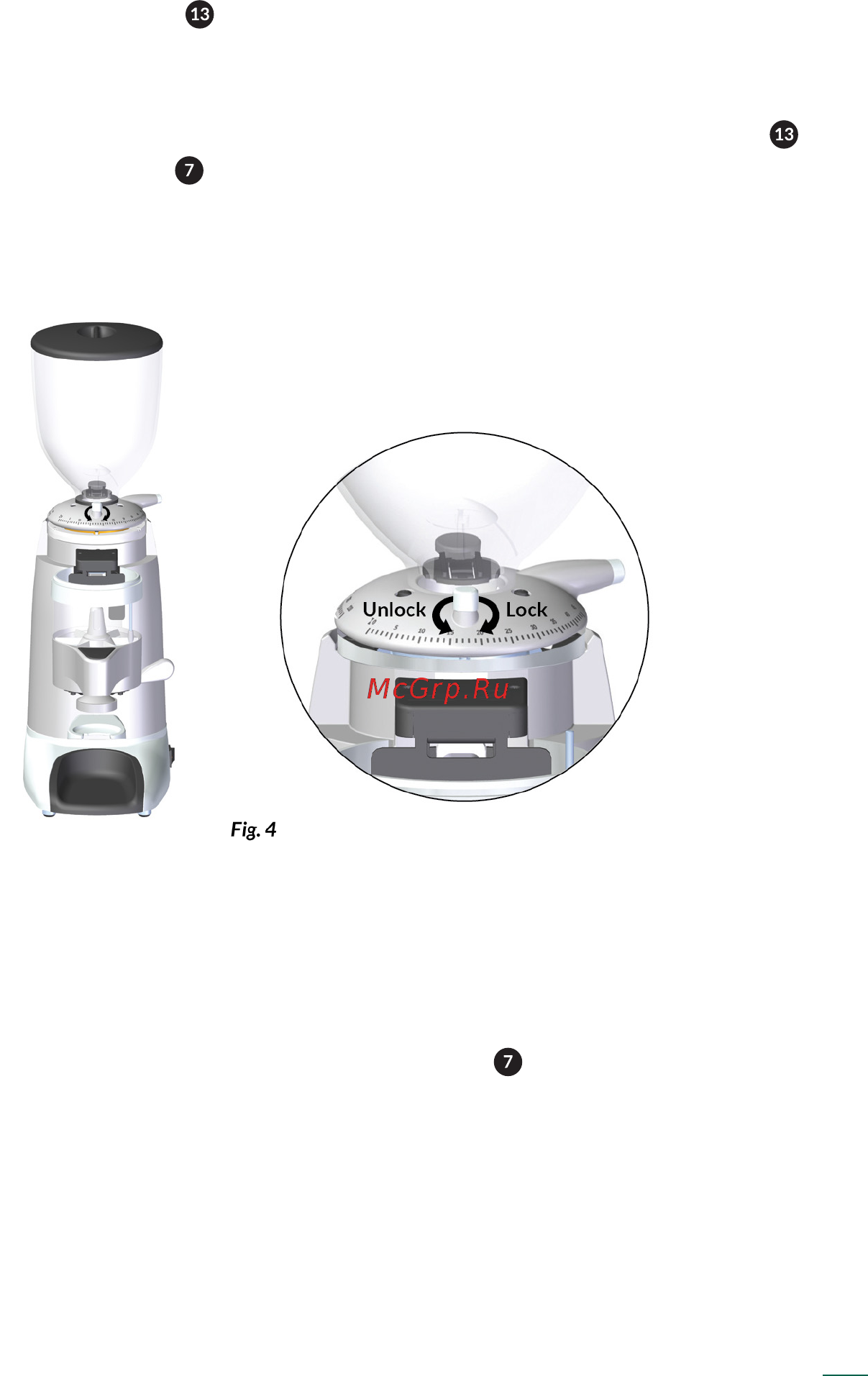

Once you reach the desired grinding point, you can x the grinding regulation ( )

using the regulation break ( ) (Fig. 4). Except K3 and K3 ELITE models.

*NOTE: Changing grind settings must be done when the grinder is on and burrs are in motion.

Not doing this suposes that the burrs will gunk up and cleaning will be required.

8.2.2. Stepped grind adjustment

In the stepped adjustment versions, the positions on the grind regulator are limited

by “steps” that are dened by the hole and pin points (Fig. 5).

The instructions detailed in section 8.2.1. on adjusting the regulator should be

followed, while at the same time, pulling the brake post ( ) (Fig. 5) up to release the

locking action of the post.
