E n g l i s h | 3
III. INSTALLATION AREA
The appliance shall be installed in enclosed and well ventilated areas (not outdoors).
Before positioning the appliance, check the overall dimensions and the exact position of the
electrical connection.
It is advised to place the oven under an extractor hood or in such a way that hot fumes and odours
exit the oven via adequate ventilation to the outside.
The oven must be placed on a flat surface so that it does not slip or turn over.
The installation area must be able to support the weight of the appliance filled to maximum capacity.
See the information level on the back of the oven for the gross weight.
Make sure that it is placed so that the door may be fully opened.
Position it so that the back of the oven is easily accessible for maintenance and connection to the
main electrical supply.
The appliance is not meant to be fitted and a 15 cm space must be left all round it.
It is not advised to place it near heat, fryers or other hot liquids. If this is not possible at least
respect the following distances from machinery: 50 cm from the sides and above the appliance and
70 cm from behind.
Do not place the device near materials or containers of inflammable liquids (such as walls, furniture,
screens, gas canisters) as it can be a fire hazard. If this is not possible, cover the inflammable parts
with fire and heatproof material and check fire hazard regulations.
IV. PREPARING FOR INSTALLATION
Remove the outer packaging (wooden caging and/or carton box) and dispose of it in compliance
with the laws in force in the country of installation.
REMOVING PROTECTIVE FILM ETC.

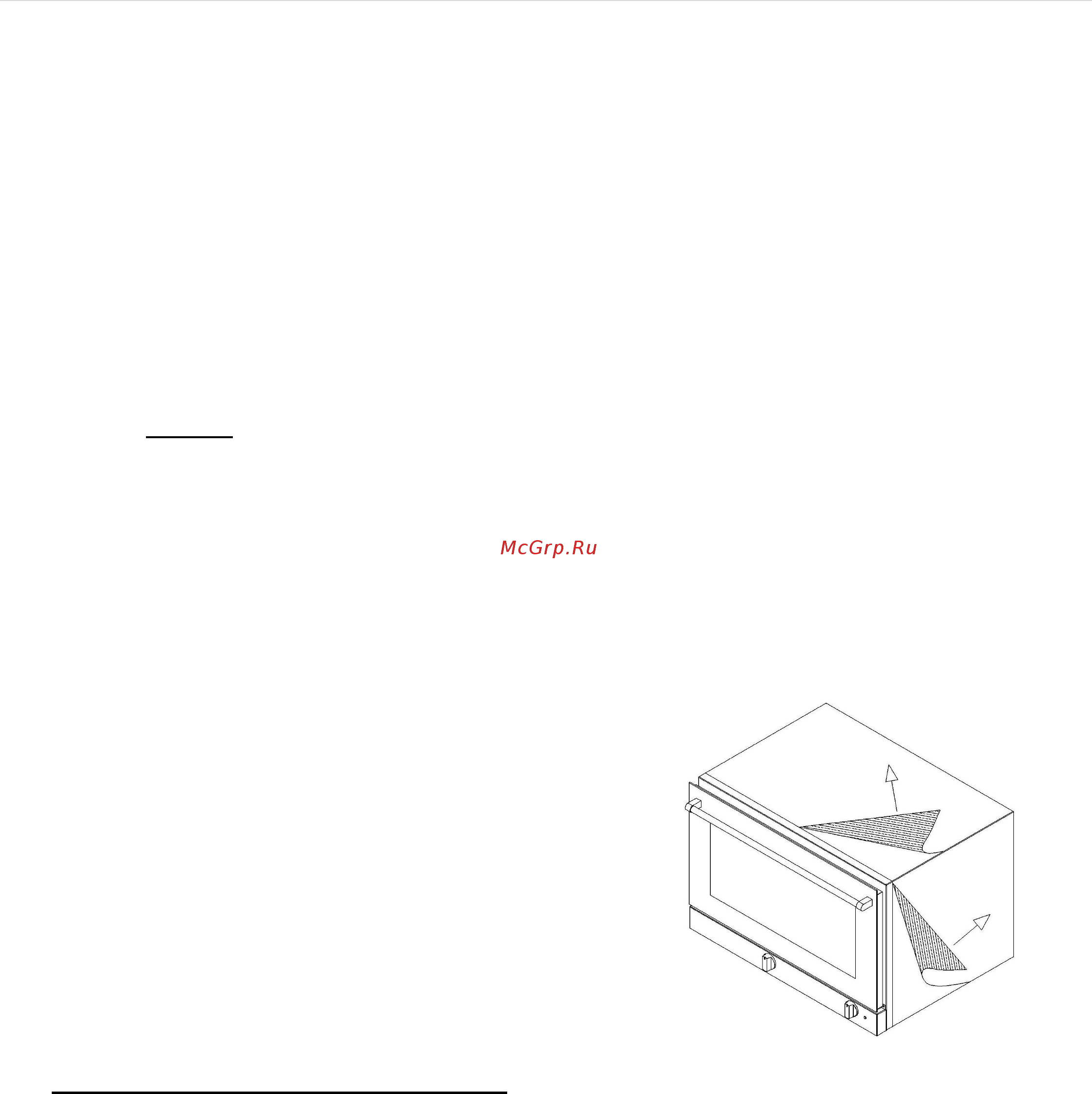

Remove the protection film from the external and
internal walls. (See image)
Remove all information covering from the
inside, and take off all plastic packaging.
STAND
Do not use the appliance without stands.
The stands are already screwed to the underside of the oven.
If they are not used, this prevents airflow from cooling the electric parts and outsides of the oven
which causes over-heating and damage to components.
The oven will function correctly if placed level on a flat surface.
