E n g l i s h | 4
V. ELECTRICAL CONNECTION
WARNING: The main connection must be carried out by a qualified and authorised
technician according to national, international and local laws in the country where it is
installed.
Before the main connection, ensure that the frequency (…..Hz) and voltage (….V) meet the
requirements indicated in the in the information tag on the back of the appliance.
OVENS WITH CABLE AND SINGLE PHASE PLUGS
For appliances with cable and plug (single phase 220-240V) the plug merely needs to go into the
appropriate socket (the socket must be adapted for the supplied plug and must withstand the
voltage required by the appliance indicated on the information plate). The product must be
positioned so that the plug is always accessible.
The appliance comes with a certified cable and plug therefore they must not be tampered with or
modified.
Only the cable can be substituted: this must be carried out by a qualified authorized technician.
The ground wire must always be yellow green.
CABLE SUBSTITUTION
This must be carried out by a qualified authorized technician. The ground wire must always
be yellow green.
WARNING: the yellow/green voltage wires in the ground cable must be 3cm longer than the
others.
Check that all the connections are tight before connecting the oven to the main.
WARNING: Erroneous connection could lead to overheating of the terminal board which
could lead to blowout and electric shock.
Check there is no static discharge between live and earth. Check the limit switch continuity between
the external casing and the ground wire of the main. It is advised to use a multimeter to carry out
these operations.
The appliance must be connected to the main using a H07RN-F cable.

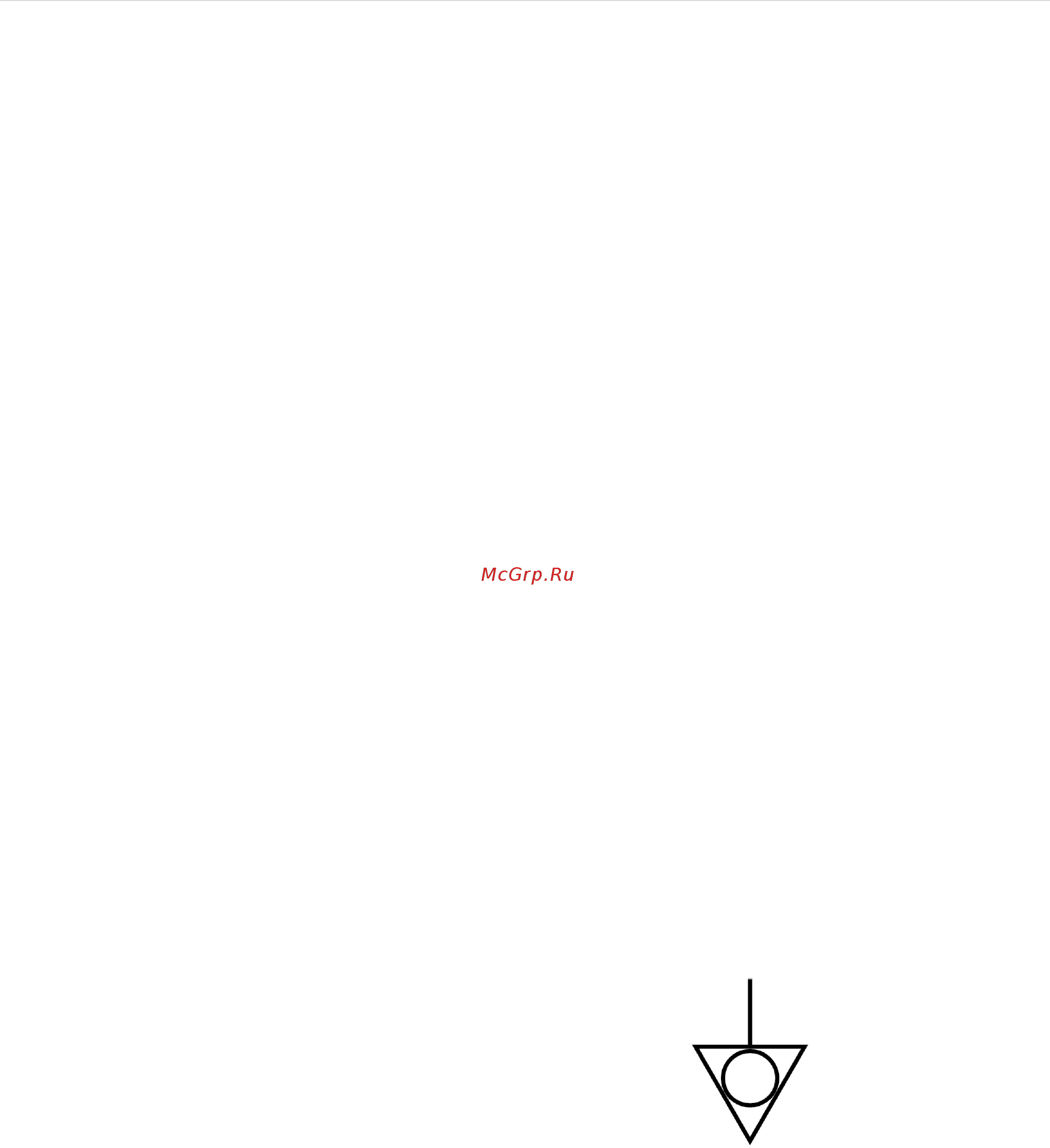

EQUIPOTENTIAL CONNECTION
This connection shall be carried between the
different appliances with the terminal marked by
the symbol: (see image).
This terminal enables the connection of
Yellow/Green cable with a section between 2.5
and 10mm².
The appliance shall be included in an
equipotential system whose efficiency shall be
duly verified according to the provisions of the
laws in force.
