10
English
STANDARD ACCESSORIES
Standard accessories are subject to change without
notice.
The charger and battery supplied are different depending
on the set specification.

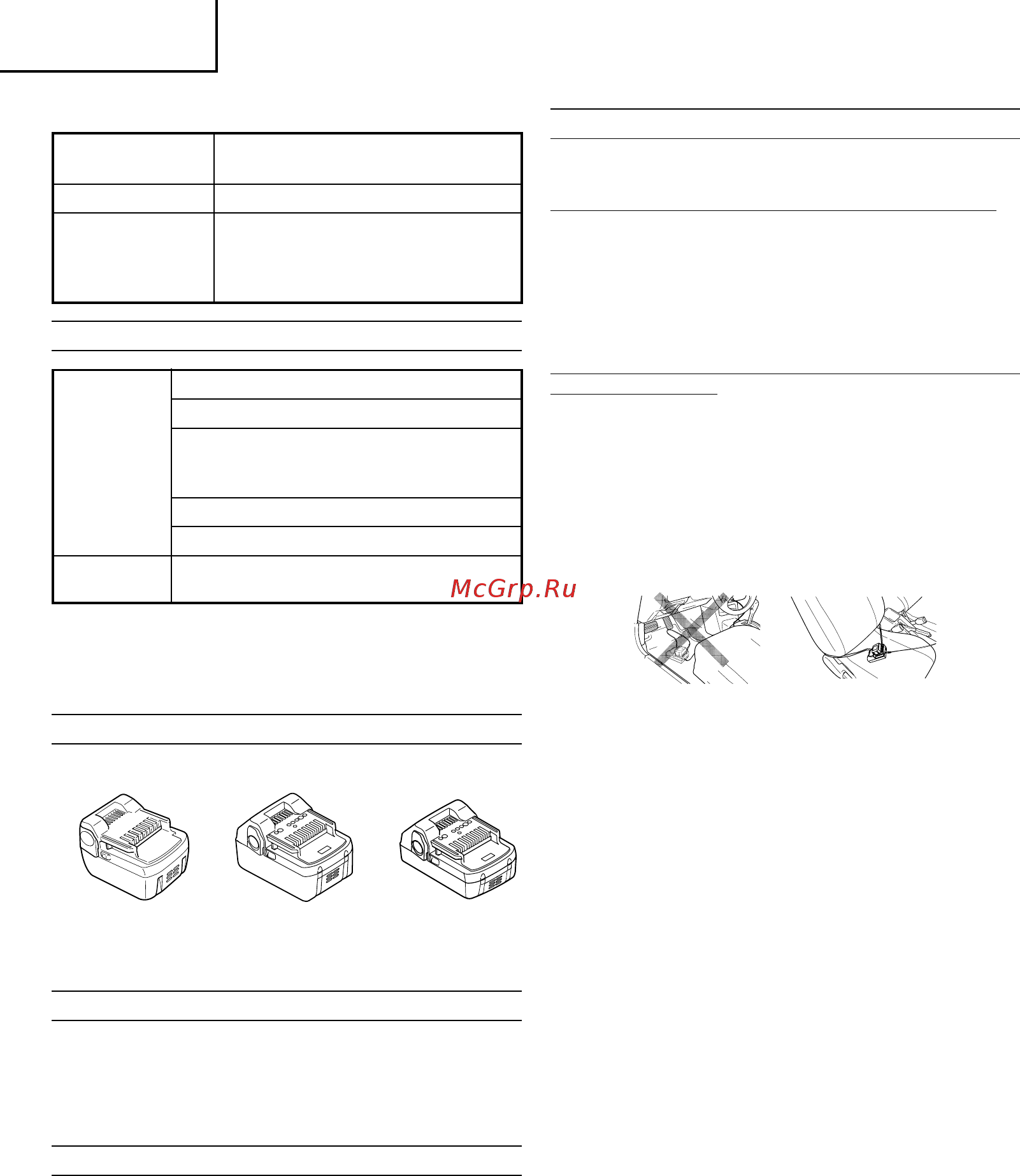

OPTIONAL ACCESSORIES (sold separately)
Battery
(BSL1430) (BSL1830) (BSL1820)
(BSL1440) (BSL1840)
Optional accessories are subject to change without notice.
APPLICATIONS
Drilling of brick and concrete block, etc.
Driving and removing of machine screws, wood
screws, tapping screws, etc.
Drilling of various metals
Drilling of various woods
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch
(2 pcs.) to remove the battery (See Figs. 1 and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (See
Fig. 2).
CHARGING
Before using the power tool, charge the battery as follows.
1. Connect to the power source
When charging the battery from an AC power source
Connect the charger’s power cord to the receptacle.
When connecting the plug of the charger to a
receptacle, the pilot lamp will blink in red (At 1-
second intervals).
CAUTION
Do not use the electrical cord if damaged. Have it
repaired immediately.
When charging the battery from a DC 12V in-car power
source (UC18YML2)
Secure the battery charger in place in the car.
Use the strap supplied with the battery charger to
fasten the battery charger in place and prevent it
from moving inadvertently. (See Fig. 14)
CAUTION
Do not place the battery charger or battery under
the driver’s seat. Secure the battery charger in
place to prevent it from moving inadvertently as
this may lead to an accident.
Fig. 14
Insert the cigarette lighter connecting plug into the
cigarette lighter socket.
If the plug is loose and falls out of the cigarette
lighter socket, repair the socket. As the socket may
be faulty, you are recommended to contact your
local car dealer. Continued use of the socket may
result in an accident due to overheating.
2. Insert the battery into the charger.
Firmly insert the battery into the charger until the line
is visible, as shown in Fig. 3, 4.
Lines are not displayed on the UC18YFSL. Make sure
that the battery is set firmly in place.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light up
continuously in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or
the rechargeable battery.
CHARGER
Model
UC18YRSL, UC18YFSL,
UC18YGSL, UC18YML2
Charging voltage 14.4 V – 18 V
UC18YRSL: 0.6 kg
Weight
UC18YFSL: 0.5 kg
UC18YGSL: 0.4 kg
UC18YML2: 0.7 kg
1 Plus driver bit (No. 2) ...................... 1
2 Charger ............................................. 1
DV14DBEL
3 Battery .............................................. 2
DV18DBEL
[DV14DBEL] BSL1440 or BSL1430
[DV18DBEL] BSL1840 or BSL1830 or BSL1820
4 Plastic case .......................................1
5 Battery cover .................................... 1
DV14DBEL (NN)
Wituout chager, battery, plastic case
DV18DBEL (NN)
and battery cover.
01Eng_DV14DBEL_WE.p65 6/12/13, 14:5410
