-11-

4. Removal of the armature ass'y from the inner cover

As illustrated in Fig. 3, support the Inner Cover [21] <21> with a tubular jig, and then push down on the top

of the pinion of the Armature [26] <26>.

5. Removal of the stator from the housing

[For DV 13SS, DV 16SS]

First insert a flat-blade screwdriver into the longitudinal cut of a sponge at the rear end of the switch, loosen

both of the upper two setscrews, and then remove the internal wires. Remove the Tapping Screws D4 x 45

[28], and then slightly tap the end surface of the Housing [34] with a wooden hammer. The stator [29] can

then be removed from the Housing.

[For DV 13VSS, DV 16VSS]

First, disconnect the internal wires from the upper side of the Switch <41> by pulling the faston terminal. To

disconnect the internal wires from the switch, insert a small flat-blade screwdriver into the windows near the

terminals and pull out the internal wires. Remove the Tapping Screws D4 x 45 <28> and slightly tap the end

surface of the Housing <34> with a wooden hammer. The stator <29> can then be removed from the

Housing <34>.

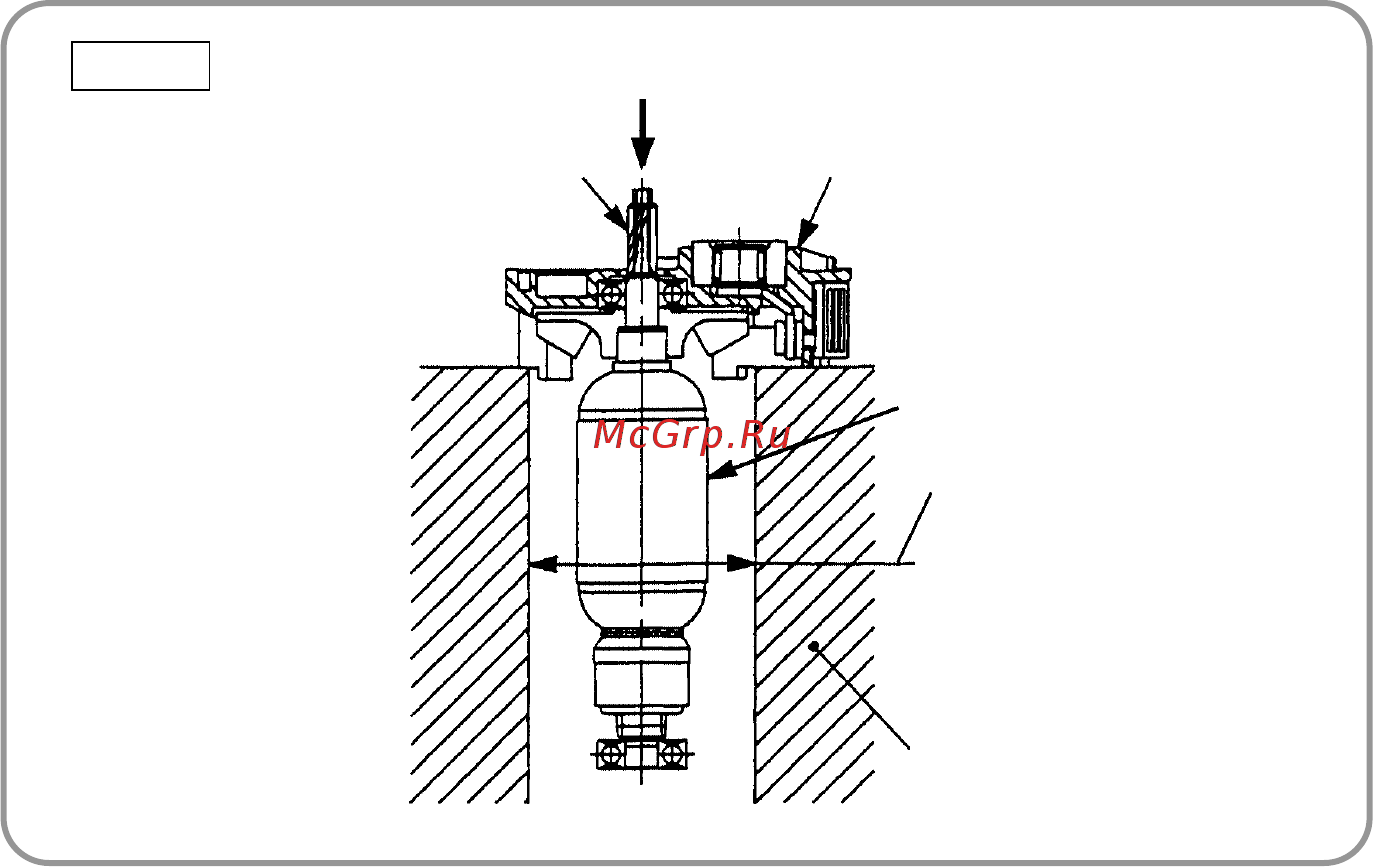

Fig. 3

Pinion

60 mm dia. to 70 mm in dia.

Push

Inner Cover [21]<21>

rmature

[

]

<26>

Tubular jig
