-17-

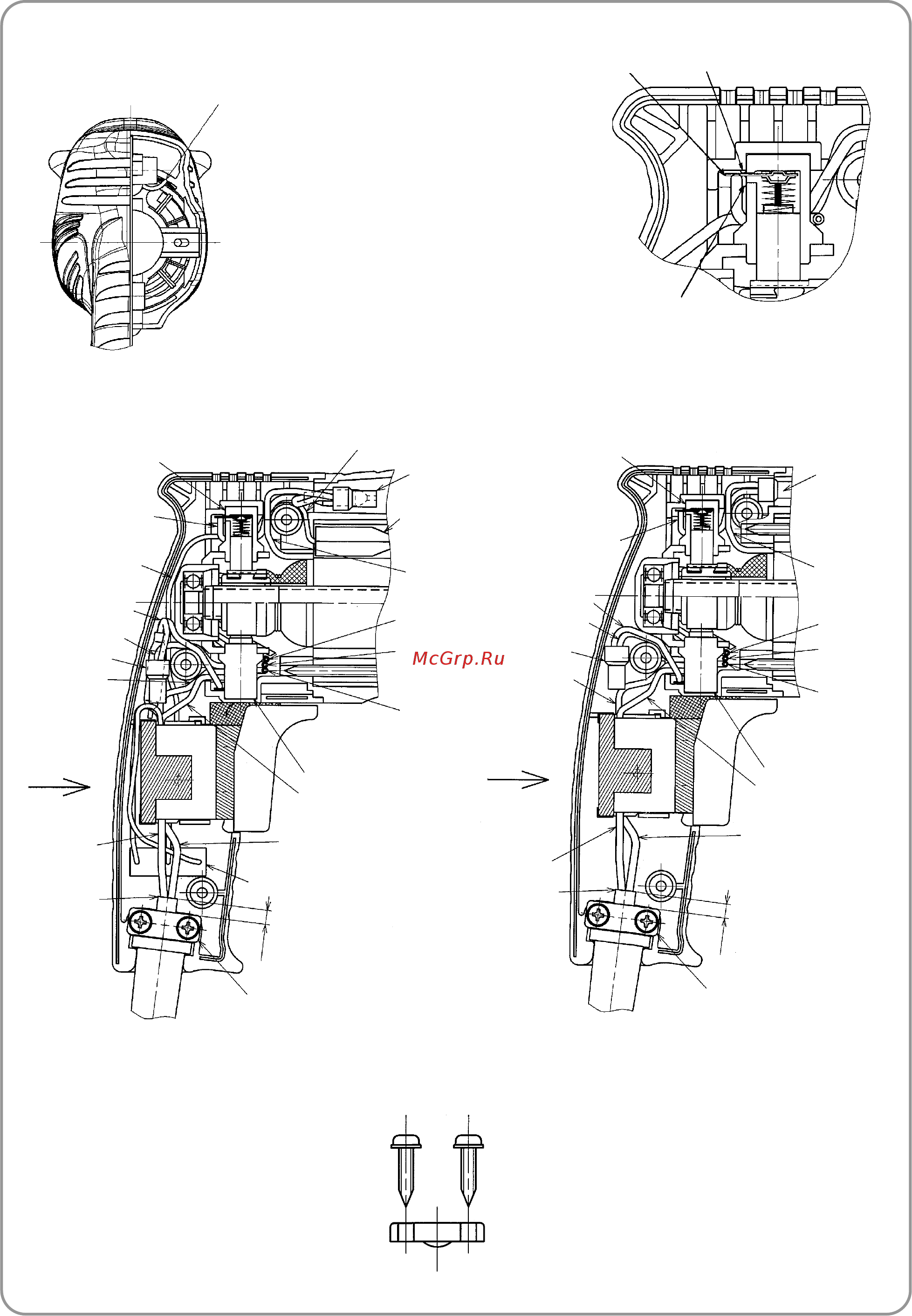

7. Internal Wire Arrangement and Wiring Work
A. Internal wire arrangement
[For DV 13SS, DV 16SS]
Stator: Red
Choke Coil: Brown
Choke Coil: Blue
Stator: White
Connector
Stator: Gray
Cord:
White or Blue
A
A
Cord [45]
Cord Clip [38]
5
+5
0
Noise Suppressor
Cord:
Black or Brown
Stator: Red
Stator: Red
Stator: Gray
Stator: White
Stator: Black
Connector
Choke Coil:
Brown
Stator: White
Connector
Stator: Gray
Cord:
White or Blue
Cord [45]
Cord Clip [38]
5
+5
0
Cord:
Black or Brown
Stator: Red
(a)
(b)
Mounting the cord clip
(1) For products with noise suppressor (2) For products without noise suppressor
Stator: Gray
Stator: White
Stator: Black
Connector
Earth Terminal 46]
Insert the Earth Terminal [46] between
the Stator [29] and Housing [34].
Thread the lead wire under the
Brush Holder [36].
Neutral wire of capacitor
Neutral wire
of capacitor
Put the carbon terminal
between (a) and (b).
Thread the lead wire under the
Brush Holder [36].
Lead wire:
Blue
Thread the lead wire
under the Brush
Holder [36].
Thread the lead wire
under the Brush
Holder [36].
