-16-

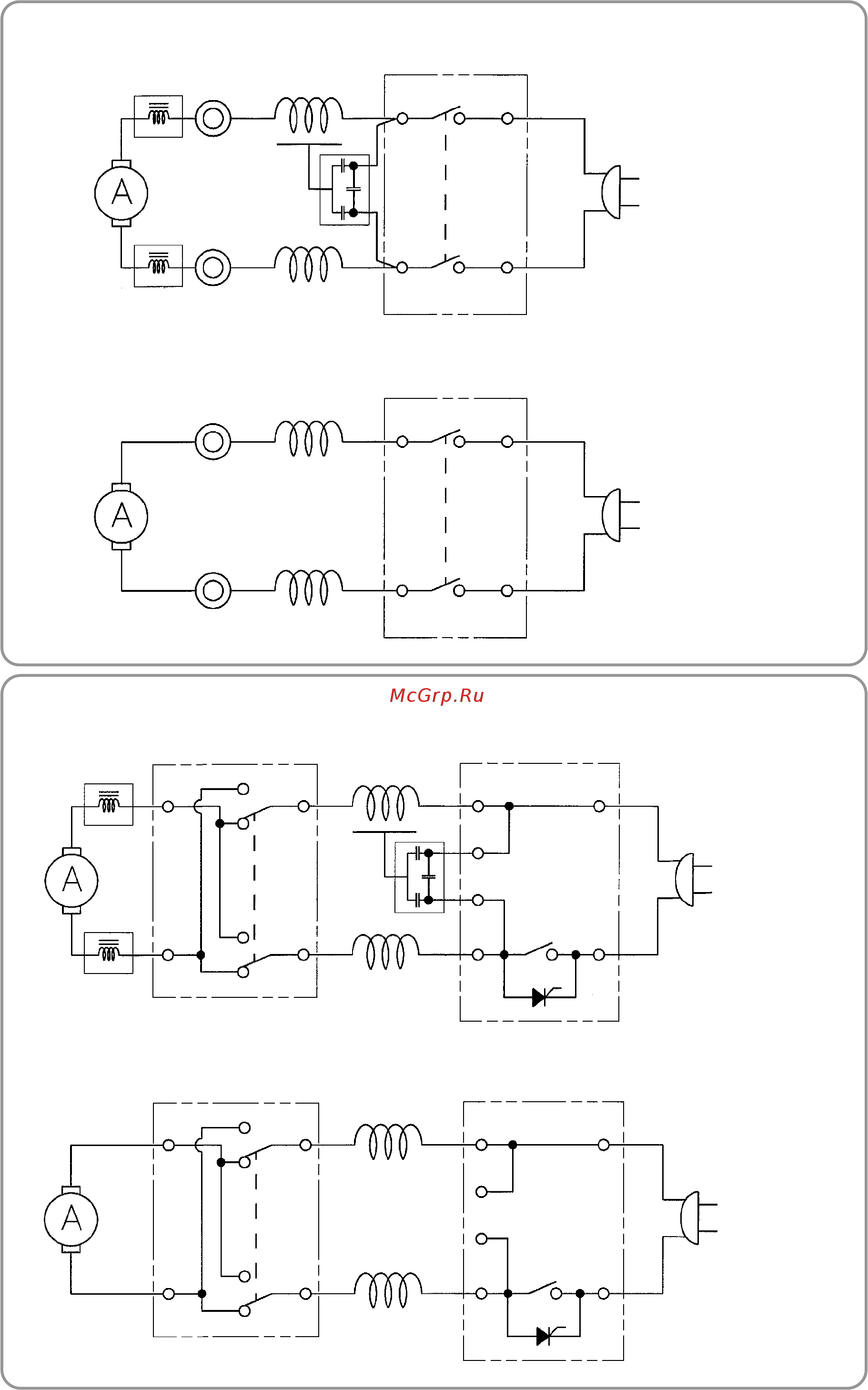

6. Wiring Diagrams
[For DV 13SS, DV 16SS]
(1) For products with noise suppressor
(2) For products without noise suppressor
[For DV 13VSS, DV 16VSS]
(1) For products with noise suppressor
(2) For products without noise suppressor
Blue
Brown
Choke Coil
Connector
White
Gray
Stator
1a 1
2a 2
Black
Red
Choke Coil
Connector
Stator
Switch
Noise
Suppressor
White or Blue
Black or Brown
Cord Ass’y
Blue
Brown
Connector
White
Gray
Stator
1a 1
2a 2
Black
Red
Connector
Stator
White or Blue
Black or Brown
Cord Ass’y
Switch
Blue
Brown
Choke Coil
Whit
e
Gray
Stator
1a 1
2a 2
Black
Red
Choke Coil
Stator
Speed Control Switch
Noise
Suppressor
White or Blue
Black or Brown
Cord Ass’y
1a
2b
45
36
Reversing Switch
Blue
Brown
Whit
e
Gray
Stator
1a 1
2a 2
Black
Red
Stator
Speed Control Switch
White or Blue
Black or Brown
Cord Ass’y
1a
2b
45
36
Reversing Switch
