-19-

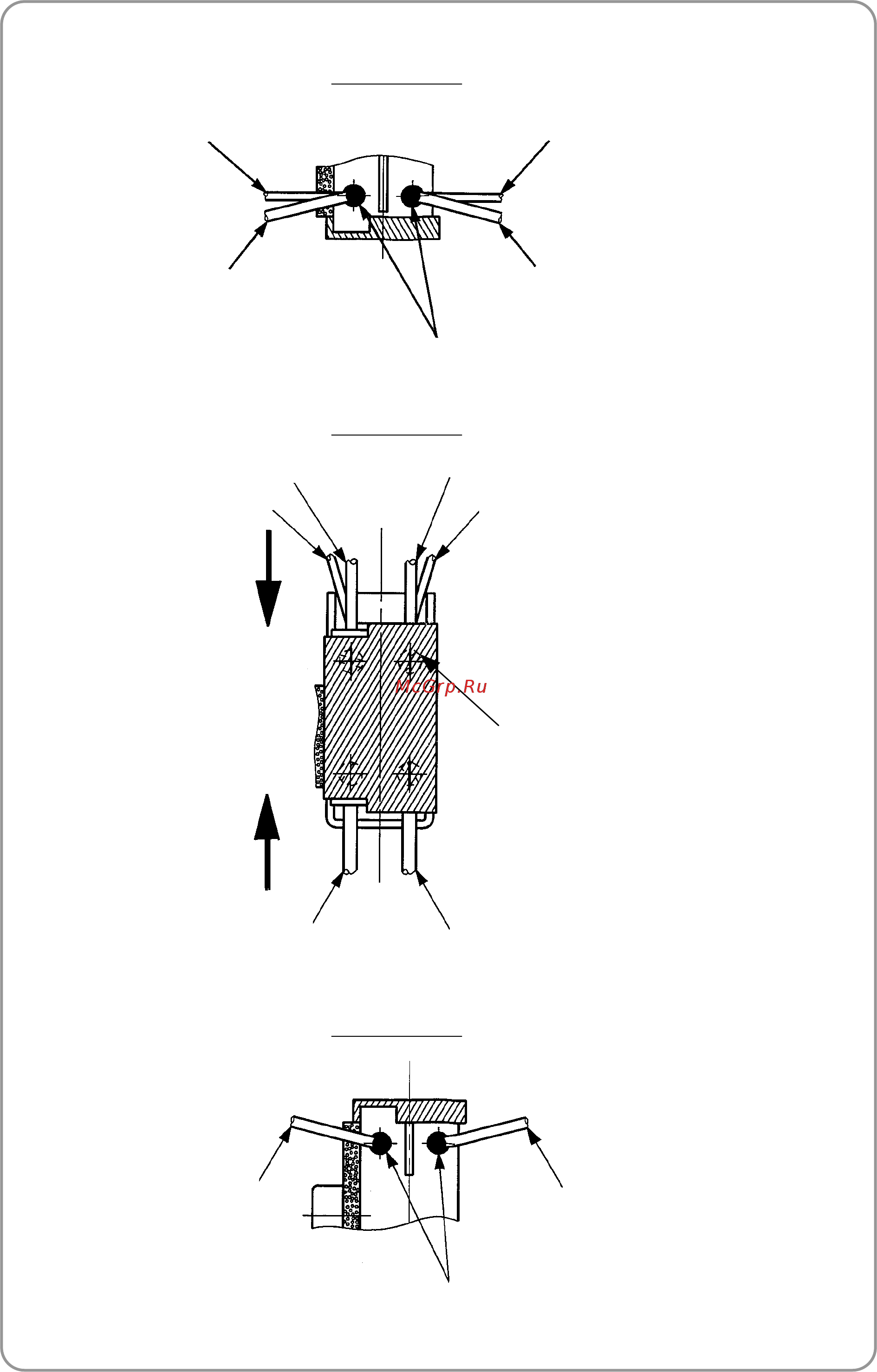

B. Switch Connection
[For DV 13SS, DV 16SS]
View from B
Stator: Red
Stator: Gray
B
C
Stator: Red
Stator: Gra
y
Cord:
Black or Brown
Cord:
White or Blue
Cord:
Black or Brown
Cord:
White or Blue
Lead wire of capacitor for
noise suppression
(for destination customer only)
Lead wire of capacitor for
noise suppression
(for destination ustomer only)
Lead wire of capacitor fo
r
noise suppression
Lead wire of capacitor fo
r
noise suppression
Insert the flat-blade
screwdriver into the
longitudinal cut of the sponge
to tighten or loosen the four
A
pply silicon grease to prevent the entry of dust.
(Shinetsu Silicon KE-45W or Three Bond 1215)
A
pply silicon grease to prevent the entry of dust.
(Shinetsu Silicon KE-45W or Three Bond 1215)
View from A
View from C
