General Description
7 GENERAL DESCRIPTION
7.1 Introduction
MQL/MQH units are water chillers / air - cooled
heat pumps with a refrigerant circuit equipped with
rotary compressors for sizes 4 and 7 and with scroll
compressors for size 8 to 17.
MQL/MQH units are designed for outdoor installa-
tion and to ensure highly reliable and efficient per-
formance. These appliances are fit for medium and
small air - conditioning applications in the residential
and tertiary sectors.
We can supply our ranges in 7 different sizes.
Please note that sizes 8 and 10 are available with
single and three - phase power supply.
All the units have no surge tank in the hydraulic cir-
cuit, since the control allows the system to work with
a water content of 3.5 l/kW.

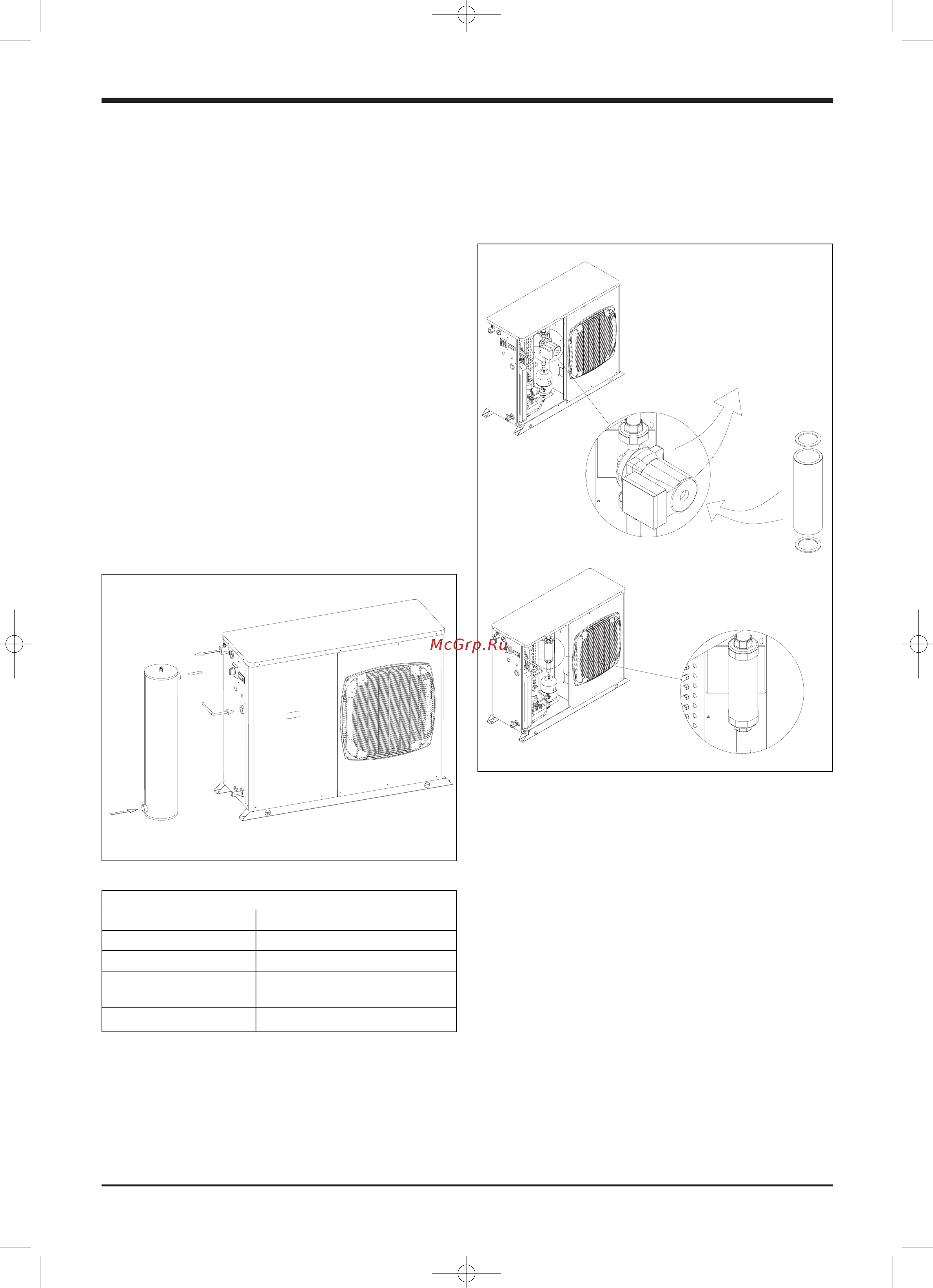

However, it is possible to buy separately the external
water tank for installations with a water content low-
er than 3.5 l/kW (see picture).
All the units are equipped with a pump; in this case
too, it is possible to buy a kit which makes it possi-
ble to remove the pump from the unit and to install a
pump outside the unit (see picture).
External Tank Dimensions:
Volume 15 l
Diameter 170 mm
Height 820mm
Connections
IInlet / Outlet
Fitting gas thread
Operating weight 25 kg
7.2 General Specifications
MQL/MQH units are supplied complete and
equipped with all coolant connecting pipings and
internal electrical wirings. When the assembly is fin-
ished, each unit is subjected to a complete final test
to check the proper working of all refrigeration cir-
cuits.
The structure is made of galvanized - steel elements
assembled through tropicalized - steel screws.
All the galvanized - steel parts are protected by RAL
9001 - white baked polyester enamel, which makes
the unit corrosion - proof and weather - proof.
Manuale MQL-MQH 10.6.2005 12:26 Pagina 20
