General Description

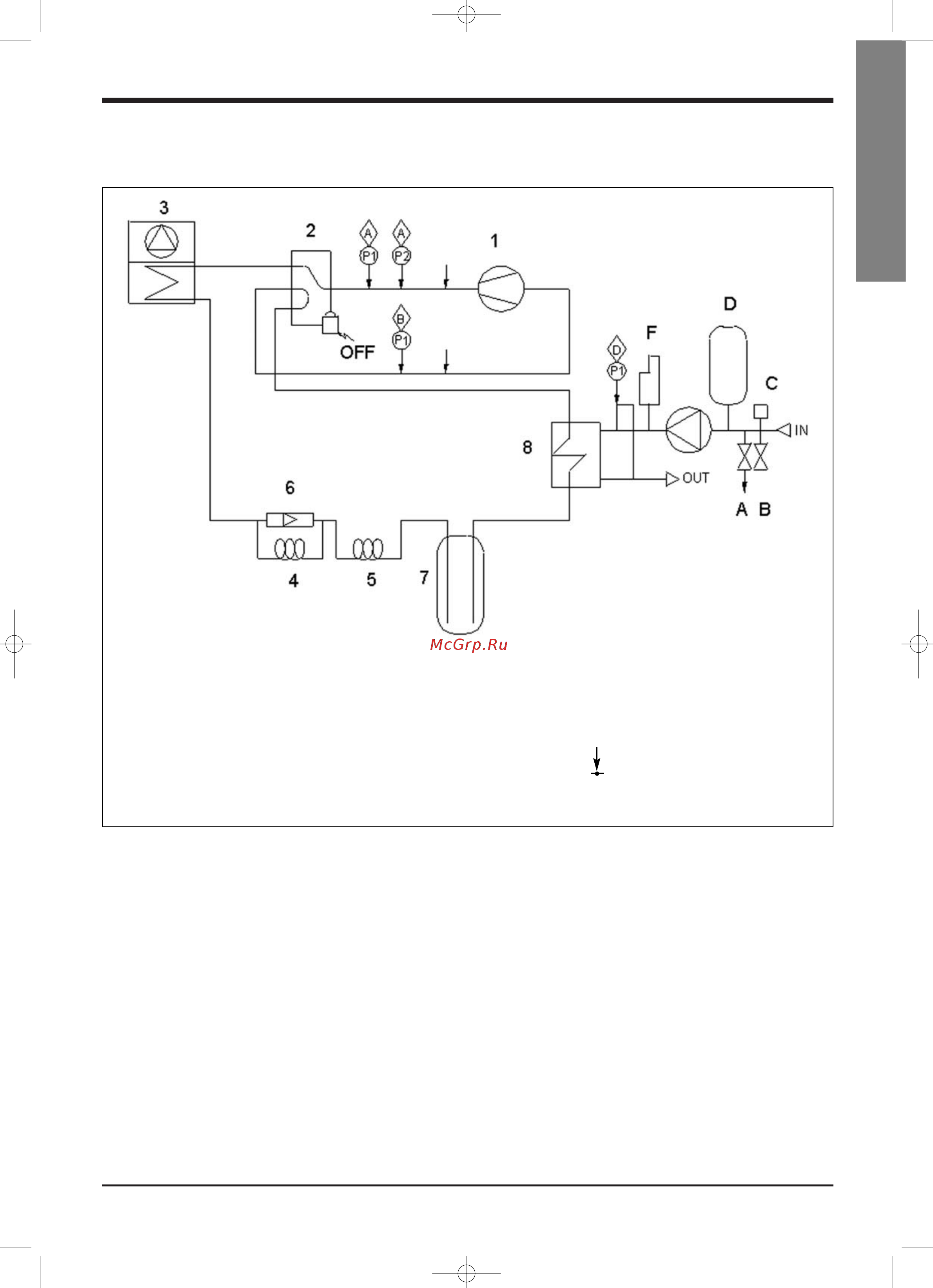

Outline refrigerator MQH 10-17
Members hydraulic system:
A Drain Valve
B Safety Valve
C Water Manometer
D Expansion Tank
E Pump
F Air vent
Members system refrigerator:
1 Compressor
2 4 Way Valve
3 Coil + Fan
4 Capillary tube
5 Capillary tube
6 Valve not return
7 Liquid Receiver
8 Heat exchanger
Devices of Emergency:
A+P1 High Pressure Switch
A+P2 Emergency ventilation
B+P1 Low Pressure Switch
D+P1 Deicing Pressure Switch
Tapping point
