Page 21
English
General Description
7.3 Compressors
Compressors are of rotary type for sizes 4 and 6 and
of scroll type for sizes 8 to 17, with built - in motor
protection.
Compressors are mounted on shock absorbers, in or-
der to reduce any possible vibrations. Motors are of
direct - start type, cooled by the sucked coolant gas;
furthermore, they are equipped with guards in order
to protect windings from overtemperature, while the
electronic control maintains the discharge tempera-
ture within the permissible limit.
7.4 Coolant Circuit
Each unit is equipped with a coolant circuit includ-
ing:
a service valve for the coolant load, a thermostatic
expansion valve (4 - 8), a dewaterer filter (4 - 8),
a HP and LP pressure switch.
7.5 Water exchanger
Evaporators are of stainless steel plate - type.
Their thermal insulation is ensured by a flexible
closed - cell insulating coating.
Furthermore, protection against frost is ensured by
electric heaters. These exchangers can work up to a
pressure of 3 - bar on the hydraulic side and up to a
pressure of 30 - bar on the coolant side.
Hydraulic connections to the evaporator are of 1" fe-
male gas threaded type, while the hydraulic circuit's
filling / discharhe connection is 1/2".
7.6 Air exchanger
Coils are made of copper pipes in staggered rows
and mechanically expanded in an aluminium finned
pack.
7.7 Fans
Fans are of direct - coupling propeller type,
equipped with plastic blades with wing - profile.
Each fan is provided with a plastic safety guard.
Finally, motors are completely closed, protection
class IP44, adjustable RPM, and protection thermo-
stat immersed in the windings.
The speed pressure regulator is provided as shop -
mounted accessory and makes it possible to reach
outside air temperatures of - 5°C in cooling mode.

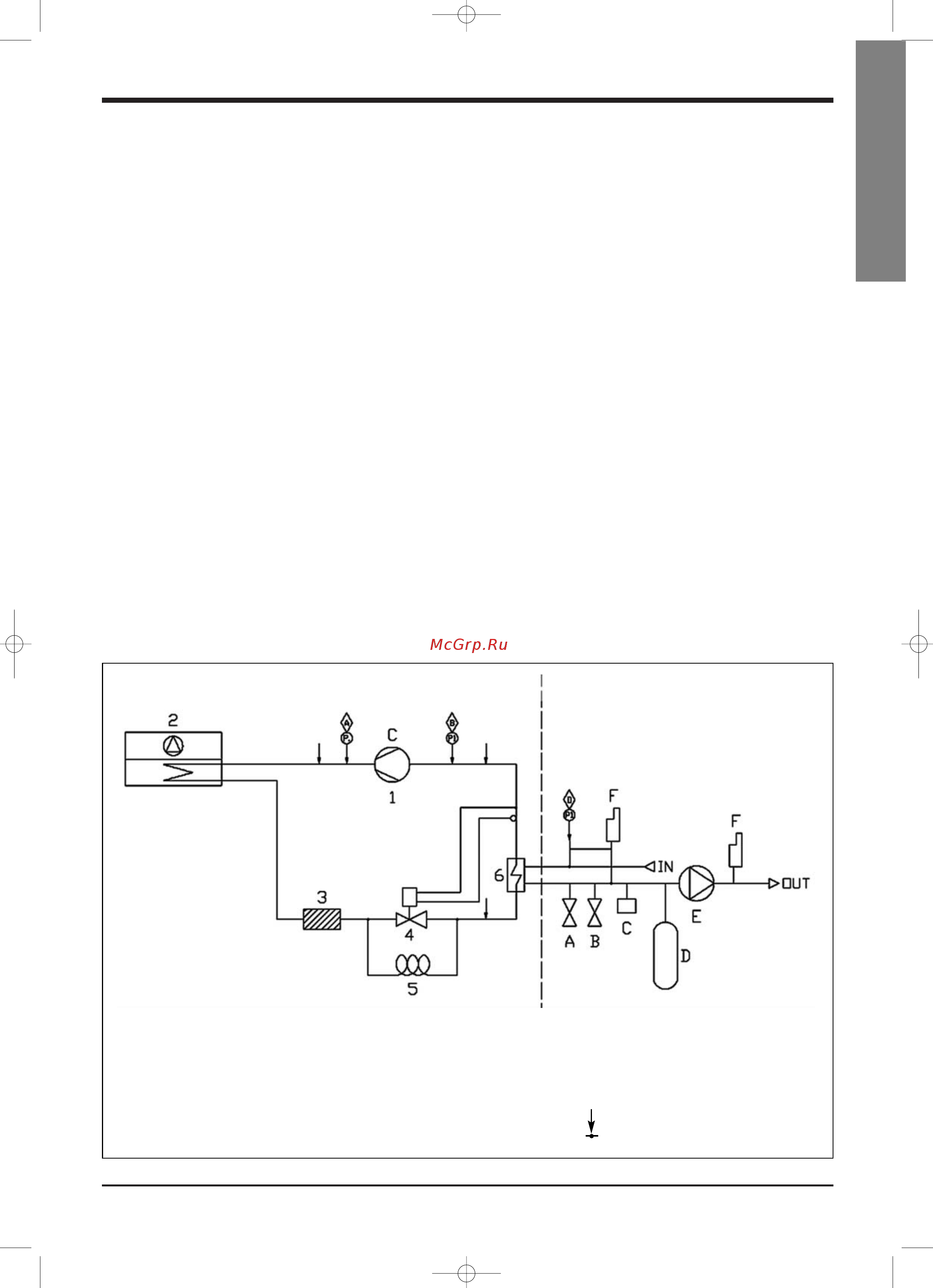

Members hydraulic system:
A Drain Valve
B Safety Valve
C Water Manometer
D Expansion Tank
E Pump
F Air vent
Members system refrigerator:
1 Compressor
2 Coil + Fan
3 Filter
4 TXV
5 Bypass Capillary
(Only 4 and 6 Sizes)
6 Heat exchanger
Devices of Emergency:
A+P1 High Pressure Switch
B+P1 Low Pressure Switch
D+P1 Deicing Pressure Switch
Tapping point
Outline refrigerator MQL 4-8
