10.1.1 PoE Config

On this page, you can configure the parameters to implement PoE function.

Choose the menu PoE→PoE Config→PoE Config to load the following page.

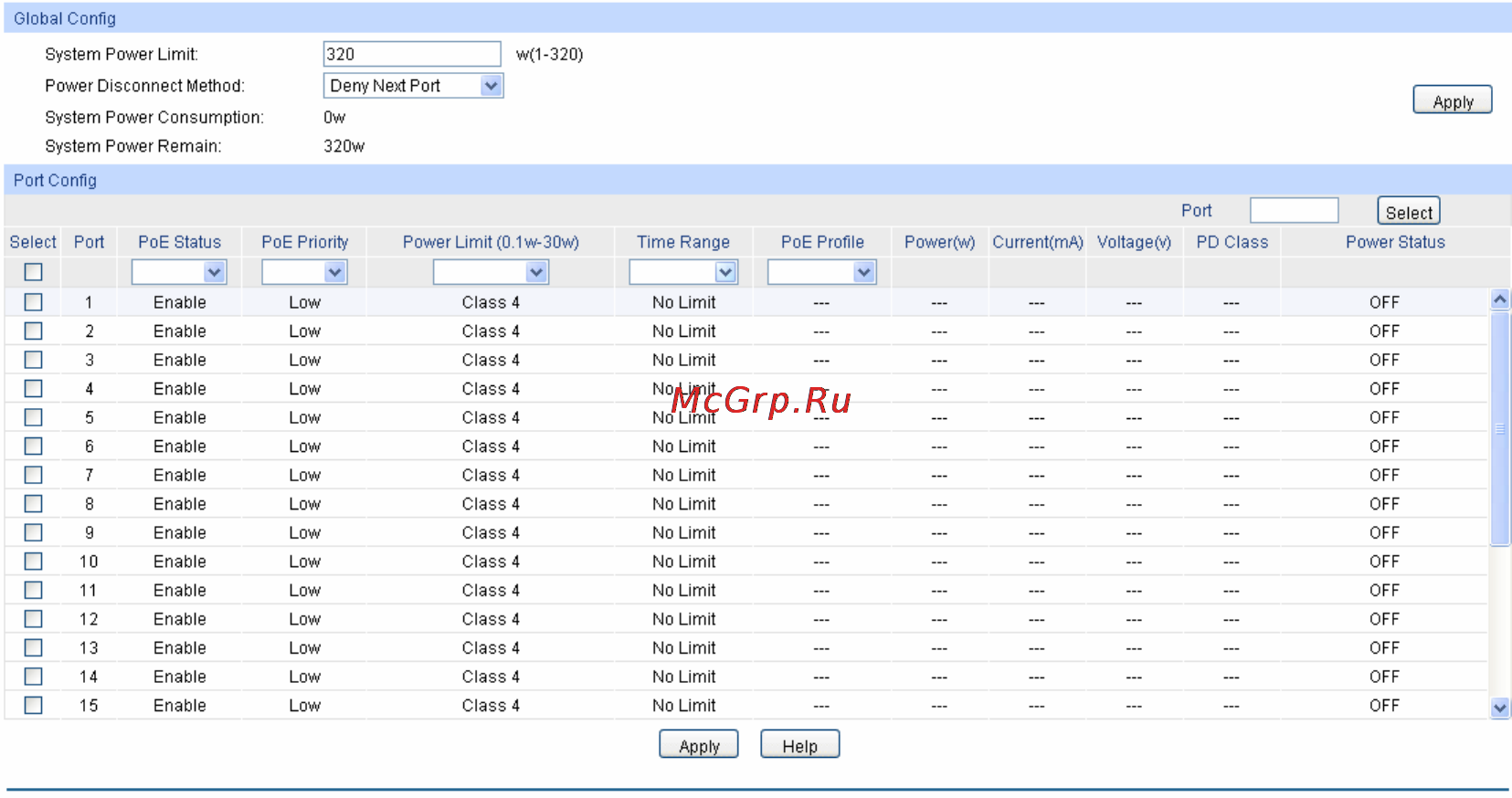

Figure 10-1 PoE Config

The following items are displayed on this screen:

¾ Global Config

System Power

Limit:

Specify the max power the PoE switch can supply.

Power Disconnect

Method:

When the supply power exceeds the system power limit, the PoE

Switch guarantees the power supply with the following two

methods

z Deny Next Port: When the supply power exceeds the system

power limit, the newly-connected PD will be disconnected.

z Deny Lower Priority: When the supply power exceeds the

system power limit, the PD linked to the port with lower

priority will be disconnected.

System Power

Consumption:

Displays the PoE switch's real time system power consumption.

System Power

Remain:

Displays the PoE switch's real time remaining system power.

¾ Port Config

Port Select: Click the [Select] button to quick-select the corresponding entry

based on the port number you entered.

Select: Select the desired port to configure its parameters.

Port: Displays the port number.
