Tp-Link TL-SG3424P [15/259] Appearance description

+ Supports Telnet, CLI, SNMP v1/v2c/v3, RMON and web access.

+ Port Mirroring enables monitoring selected ingress/egress traffic.

2.3 Appearance Description

2.3.1 Front Panel

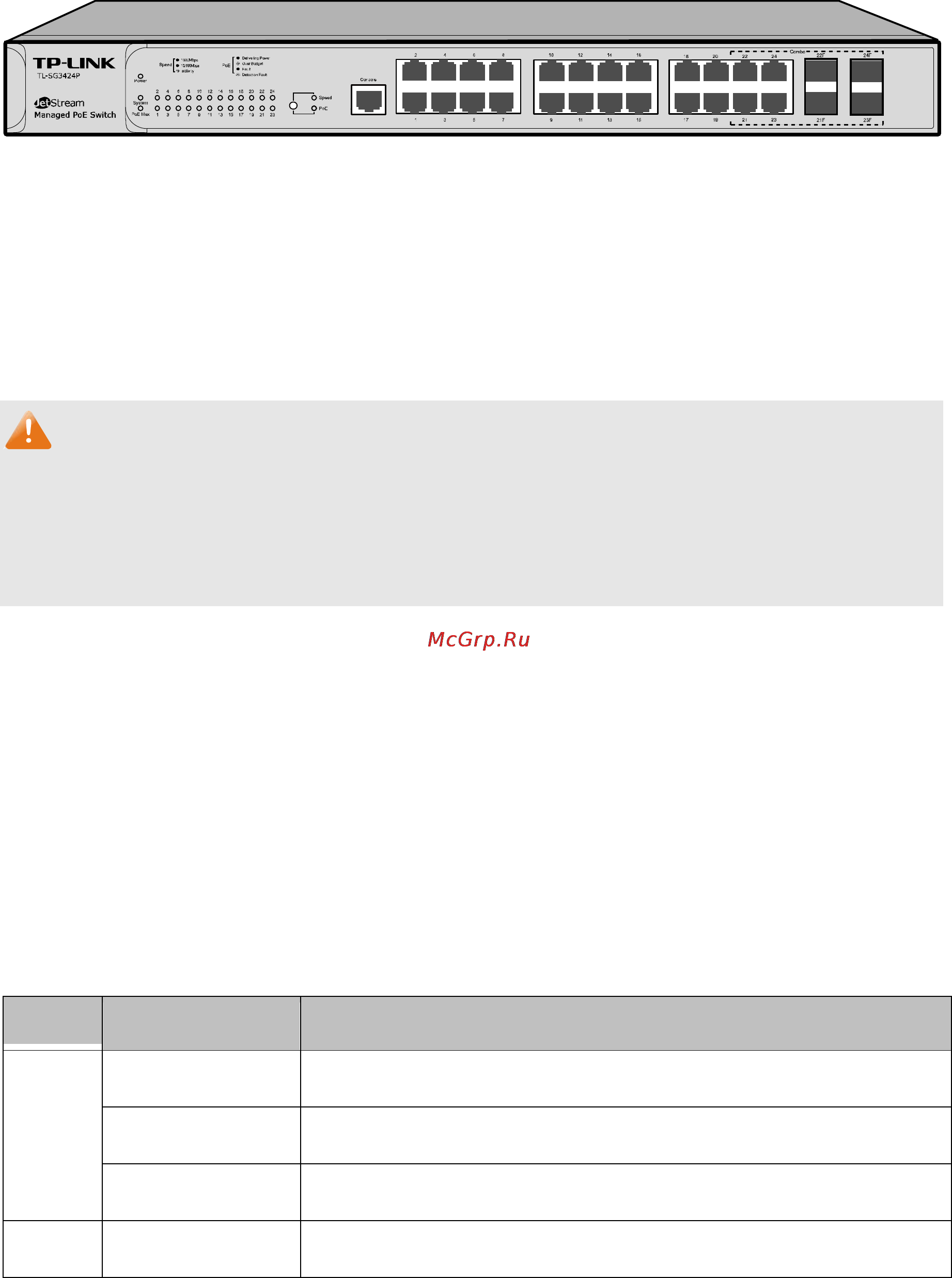

Figure 2-1 Front Panel

a bandwidth of 10Mbps,

1000Mbps LED.

¾ SFP Ports: Designed to install the SFP module.

The following parts are located on the front panel of the Switch:

¾ 10/100/1000Mbps Ports: Designed to connect to the device with

100Mbps or 1000Mbps. Each has a corresponding

Note:

When using the SFP port with a 100M module or a gigabit module, you need to configure its

corresponding Speed and Duplex mode on Switching→Port→Port Config page. For 100M

module, please select 100MFD while select 1000MFD for gigabit module. By default, the Speed

and Duplex mode of SFP port is 1000MFD.

onnect with the serial port of a computer or terminal for monitoring

and configuring the Switch.

¾ LEDs

the PoE LED will turn off after being on for 60 seconds and the Speed LED will light up again.

When the Speed LED is on, the port LED is indicating the data transmission rate.

¾ Console Port: Designed to c

TL-SG3424P has a LED mode switch button which is for switching the LED status indication.

When the Speed LED is on, the port LED is indicating the data transmission rate. When the PoE

LED is on, the port LED is indicating the power supply status. By default the Speed LED is on.

Pressing the mode switch button, the Speed LED will turn off and the PoE LED will light up. Th

LED Status Indication

On The Switch is powered on.

Off The Switch is powered off or power supply is abnormal.

Power

Flashing Power supply is abnormal.

System Flashing The Switch works properly.
