Details: Click Details to display the included TLVs and select the desired
TLVs.
14.2 Device Info
You can view the LLDP information of the local device and its neighbors on the Local Info and
Neighbor Info pages respectively.
14.2.1 Local Info
On this page you can see all ports' configuration and system information.
Choose the menu LLDP→Device Info→Local Info to load the following page.

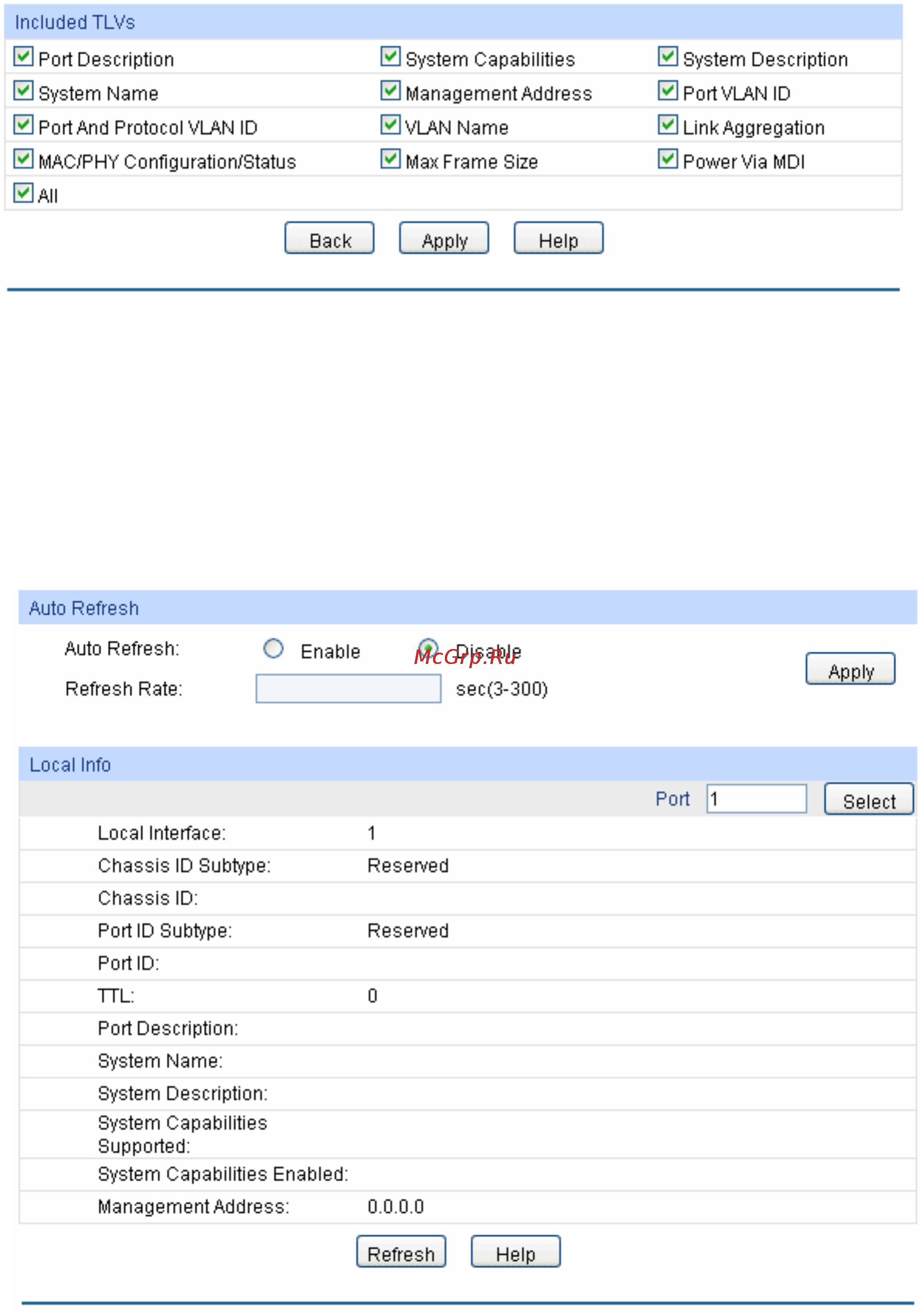

Figure 14-3 LLDP Local Information
The following entries are displayed on this screen:
197
