Profile Name: Enter the name of the profile.
PoE Status: Select to the enable/disable PoE feature for the corresponding
port. If set enable, the port may supply power to the linked PD
(Power Device).
PoE Priority: Cooperates with the Power Disconnected Method to decide the
way to supply power to the new linked PD (Powered Device)
when the surplus power is inadequate. The priority levels include
High, Middle and Low in descending order.
Power Limit: Defines the max power the corresponding port can supply. Class1
represents 4w, Class2 represents 7w, Class3 represents 15.4w,
and Class4 represents 30w.
¾ PoE Profile
Select: Select the desired profile to delete.
Profile Name: Displays the name of the profile.
PoE Status: Displays the PoE status of the port in the profile.
PoE Priority: Displays the PoE priority of the port in the profile.
Power Limit: Displays the max power the port in the profile can supply.
10.2 PoE Time-Range
A time-range based PoE enables you to implement PoE power supply by differentiating the
time-ranges. A time-range can be specified for each port. The port will not supply power when the
specified time-range is configured and the system time is not within the time-range.
On this switch absolute time, week time and holiday can be configured. Configure an absolute time
section in the form of “the start date to the end date” to make the port based on this time range
supply power; configure a week time section to make the port supply based on this time range on
the fixed days of the week; configure a holiday section and select Exclude Holiday to make the port
based on this time range not supply power on some special days. In each time-range, four
time-slices can be configured.
The Time-Range configuration can be implemented on PoE Time-Range Summary, PoE
Time-Range Create and PoE Holiday Config pages.
10.2.1 Time-Range Summary
On this page you can view or delete the current time-ranges.
Choose the menu PoE→PoE Time-Range→PoE Time-Range Summary to load the following
page.

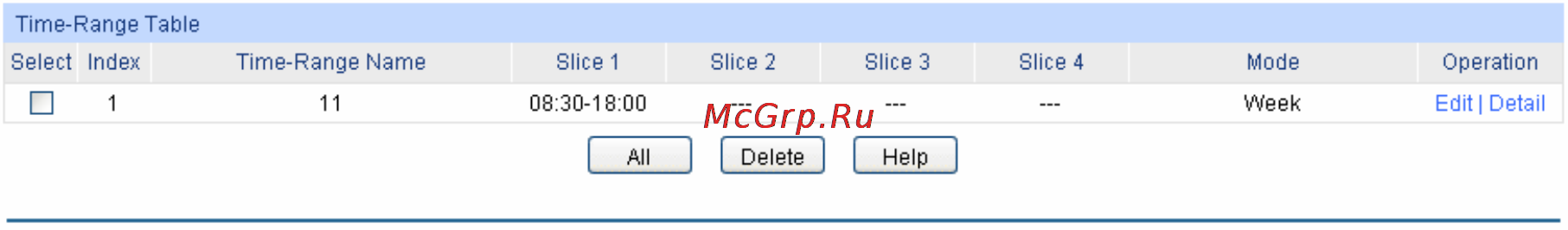

Figure 10-3 Time-Range Table
The following items are displayed on this screen:
129
