Tp-Link TL-SG3424P [136/259] Profile config

PoE Status: Select to disable/enable the PoE feature for the corresponding

port. If set enable, the corresponding port can supply power to the

linked PD (Powered Device).

PoE Priority: Cooperates with the Power Disconnected Method to decide the

way to supply power to the new linked PD (Powered Device)

when the surplus power is inadequate. The priority levels include

High, Middle and Low in descending order.

Power Limit

(0.1w-30w):

Defines the max power the corresponding port can supply. Class1

represents 4w, Class2 represents 7w, Class3 represents 15.4w

and Class4 represents 30w.

Time Range: Select the time range for the PoE port to supply power. If No limit

is selected, the PoE port will supply power all the time.

PoE Profile: Select the profile you want to apply to the selected port. If a PoE

Profile is selected, the three attributes including PoE Status, PoE

Priority and Power Limit are not available.

Power (W): Displays the port's real time power supply.

Current (mA): Displays the port's real time current.

Voltage (V) Displays the port's real time voltage.

PD Class: Displays the class the linked PD (Powered Device) belongs to.

Power Status: Displays the port's real time power status.

10.1.2 Profile Config

PoE (Power over Ethernet) Profile is a short cut for the configuration of the PoE port. You can

create some profiles to be applied to the ports. In a profile, the PoE status, PoE priority and Power

limit are configured.

Choose the menu PoE→PoE Config→Profile Profile to load the following page.

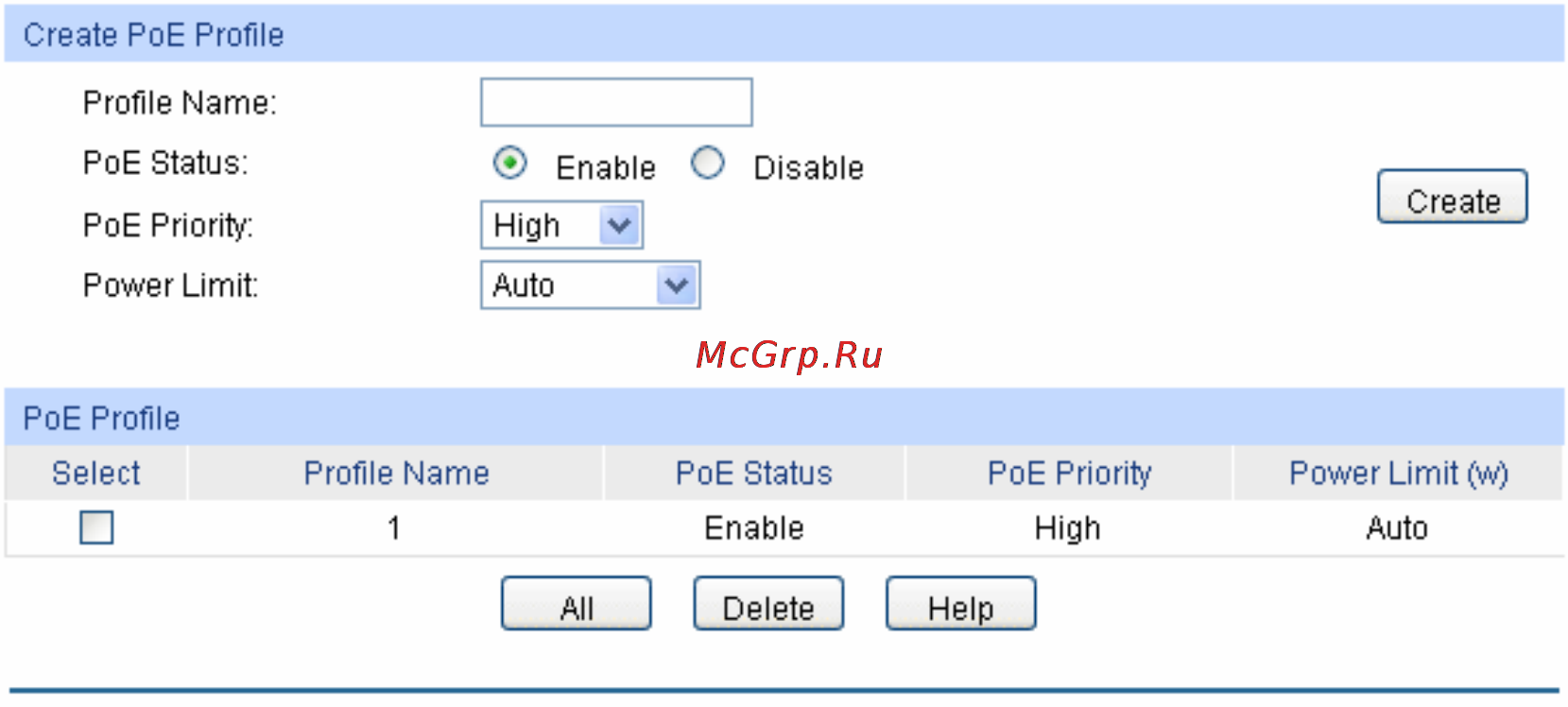

Figure 10-2 Profile Config

The following items are displayed on this screen:

¾ Create PoE Profile
