4 Configure MAC
VLAN 10
On VLANMAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-8A-4C-71.
5 Configure MAC
VLAN 20
On VLANMAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-82-3B-70.
z Configure Switch C
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config page, configure the
link type of Port 2 and Port 3 as GENERAL, and configure the link type
of Port 4 and Port 5 as ACCESS.
2 Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 10, owning Port 2, Port 3 and Port 5,
3 Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 20, owning Port 2, Port 3 and Port 4,
6.6 Application Example for Protocol VLAN

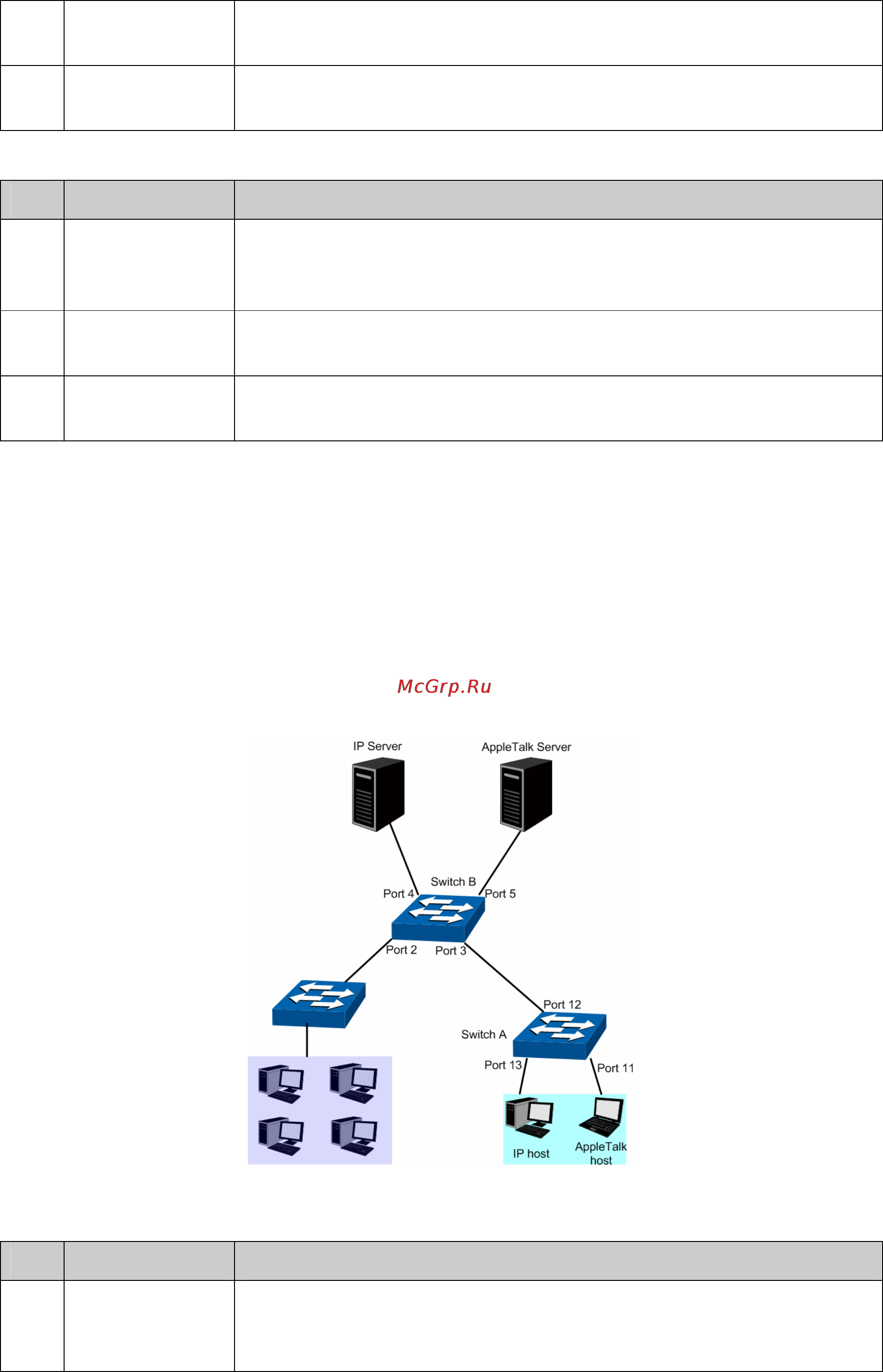

¾ Network Requirements
z Department A is connected to the company LAN via Port12 of Switch A;
z Department A has IP host and AppleTalk host;
z IP host, in VLAN10, is served by IP server while AppleTalk host is served by AppleTalk server;
z Switch B is connected to IP server and AppleTalk server.
¾ Network Diagram
¾ Configuration Procedure
z Configure Switch A
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config page, configure the
link type of Port 11 and Port 13 as ACCESS, and configure the link type
of Port 12 as GENERAL.
