Tp-Link TL-SG3424P [230/259] Memory monitor

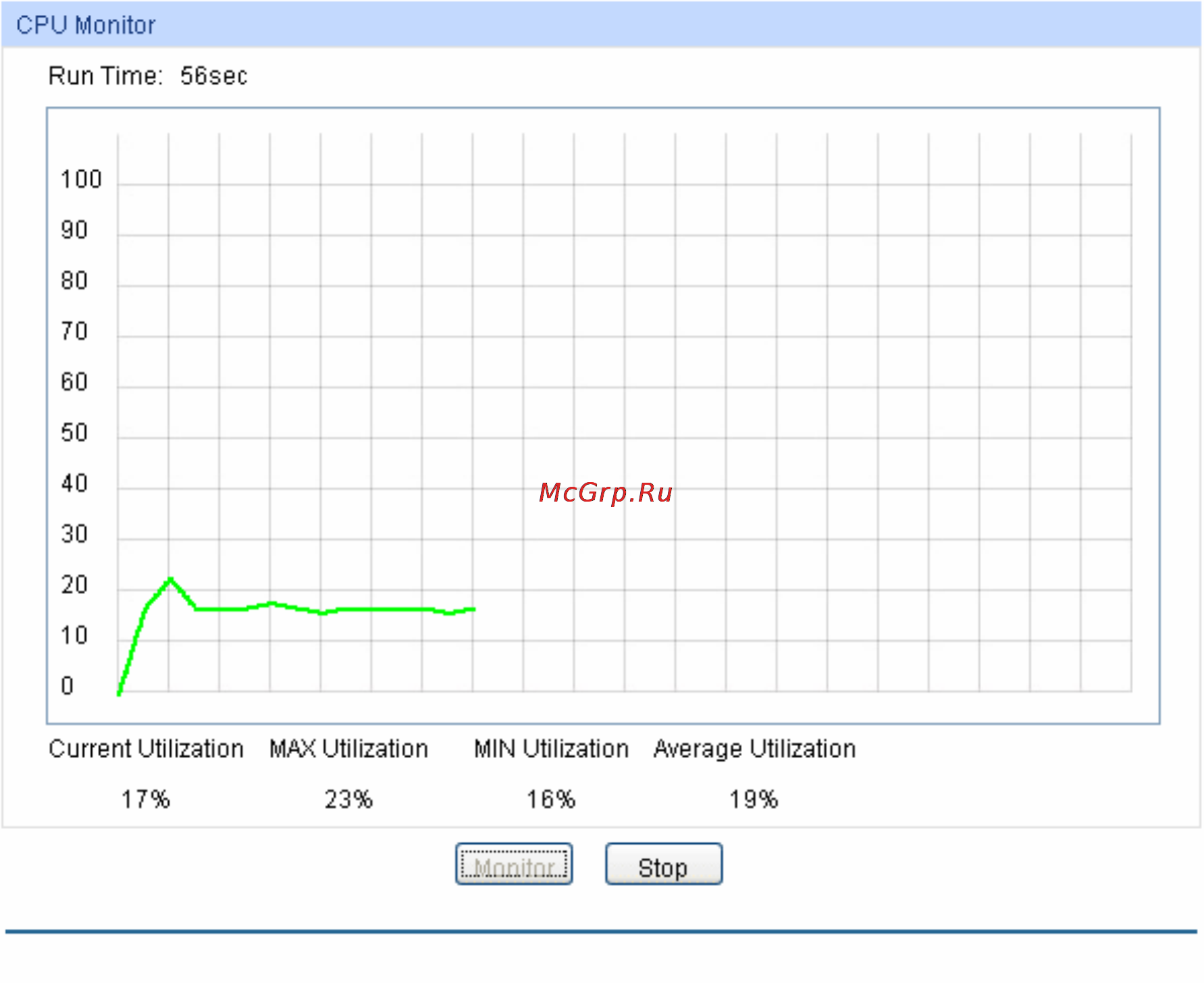

Figure 16-1 CPU Monitor

Click the Monitor button to enable the switch to monitor and display its CPU utilization rate every

four seconds.

16.1.2 Memory Monitor

Choose the menu Maintenance→System Monitor→Memory Monitor to load the following page.

222
