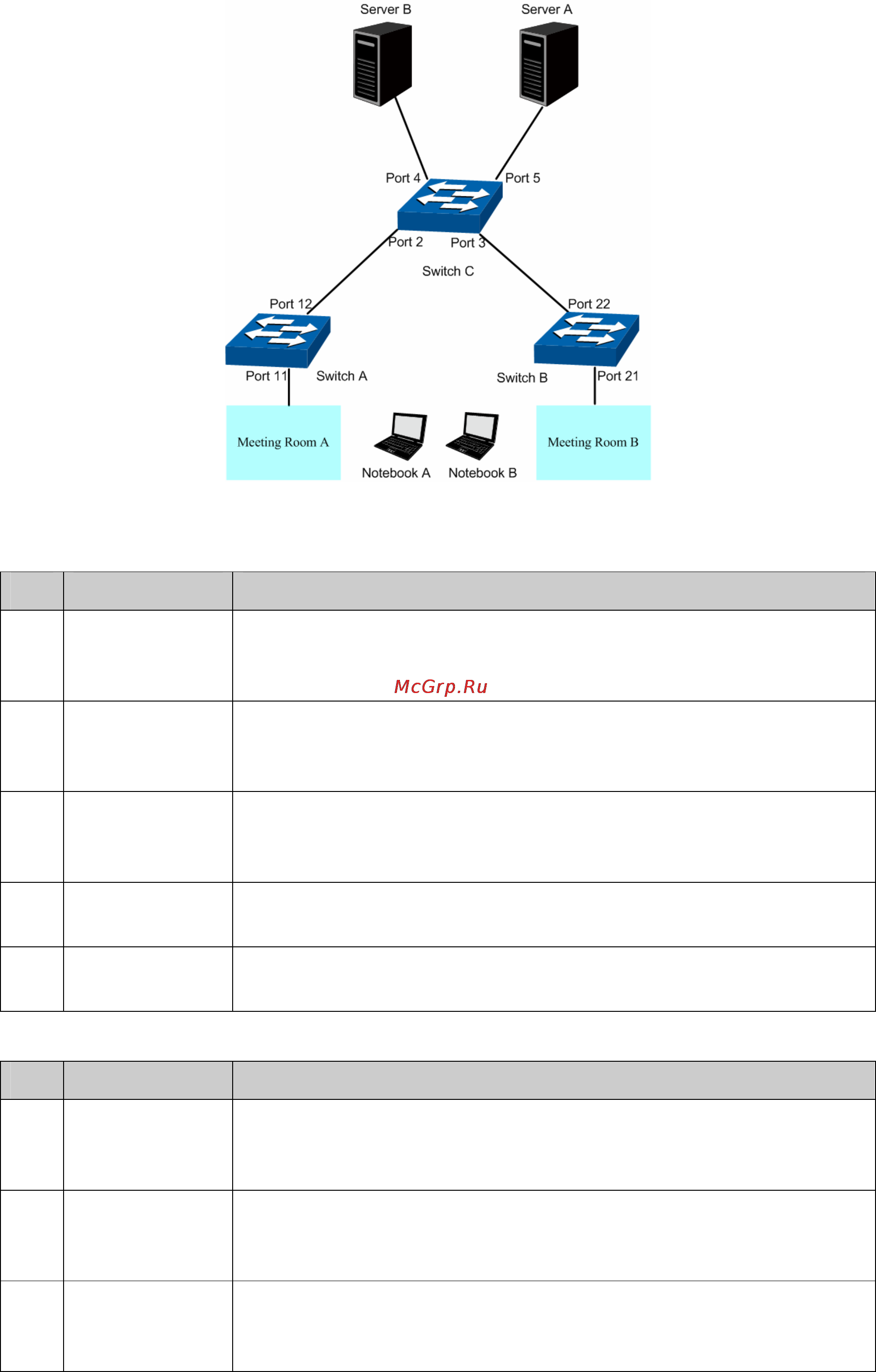

¾ Configuration Procedure
z Configure Switch A
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config page, configure the
link type of Port 11 and Port 12 as GENERAL and TRUNK respectively.
2 Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 10, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
3 Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 20, owning Port 11 and Port 12, and configure
the egress rule of Port 11 as Untag.
4 Configure MAC
VLAN 10
On VLANMAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-8A-4C-71.
5 Configure MAC
VLAN 20
On VLANMAC VLAN page, create MAC VLAN10 with the MAC
address as 00-19-56-82-3B-70.
z Configure Switch B
Step Operation Description
1 Configure the
Link Type of the
ports
Required. On VLAN802.1Q VLANPort Config page, configure the
link type of Port 21 and Port 22 as GENERAL and TRUNK respectively.
2 Create VLAN10 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 10, owning Port 21 and Port 22, and
configure the egress rule of Port 21 as Untag.
3 Create VLAN20 Required. On VLAN802.1Q VLANVLAN Config page, create a
VLAN with its VLANID as 20, owning Port 21 and Port 22, and
configure the egress rule of Port 21 as Untag.
67
