Choose the menu LLDP→LLDP-MED→Port Config to load the following page.

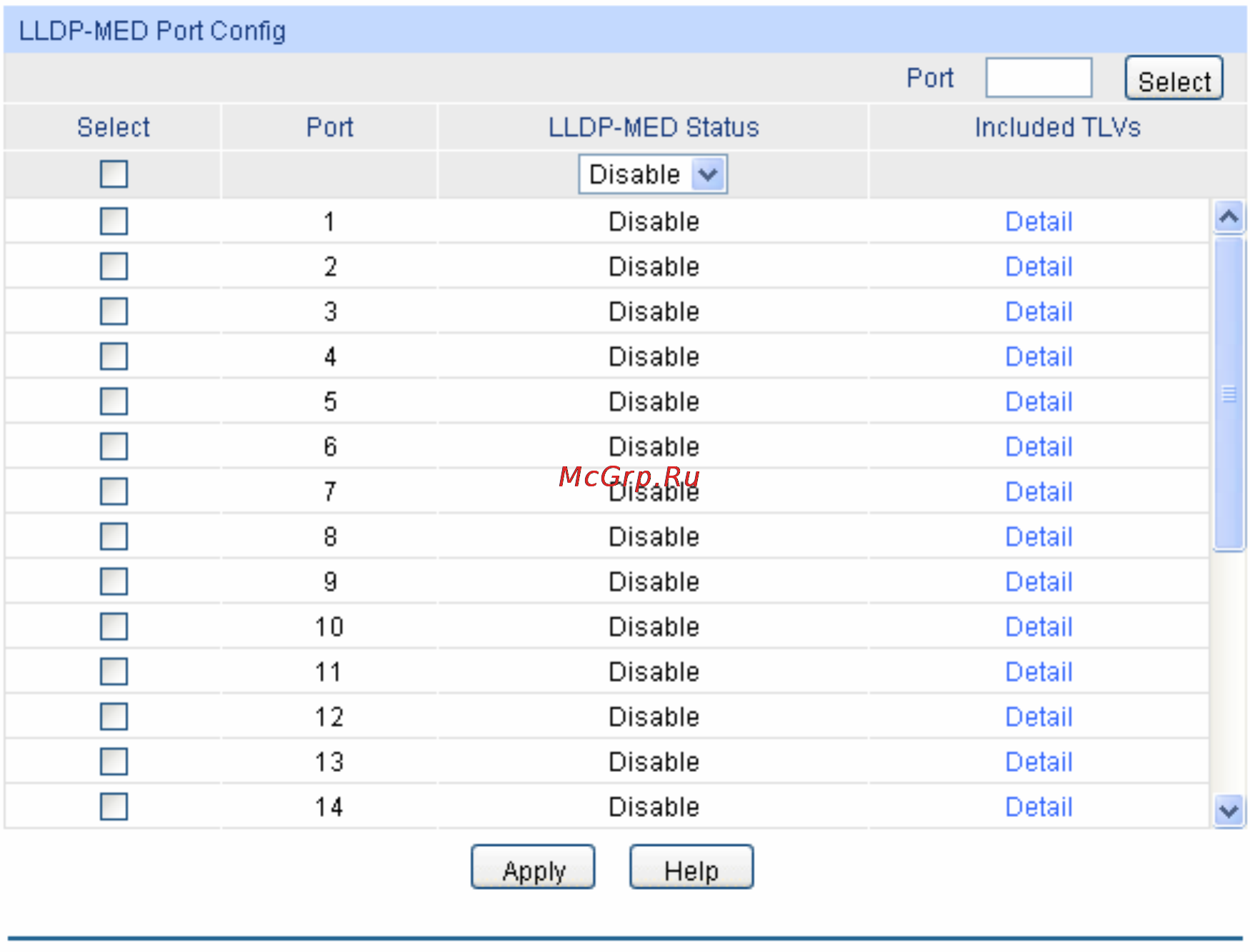

Figure 14-7 LLDP-MED Port Configuration
The following entries are displayed on this screen:
¾ LLDP-MED Port Config
Port Select: Select the desired port to configure.
LLDP-MED Status: Configure the port's LLDP-MED status:
z Enable: Enable the port's LLDP-MED status, and the port's
Admin Status will be changed to Tx&Rx.
z Disable: Disable the port's LLDP-MED status.
Included TLVs: Select TLVs to be included in outgoing LLDPDU.
Details: Click Details to display the included TLVs and select the desired
TLVs.
202
