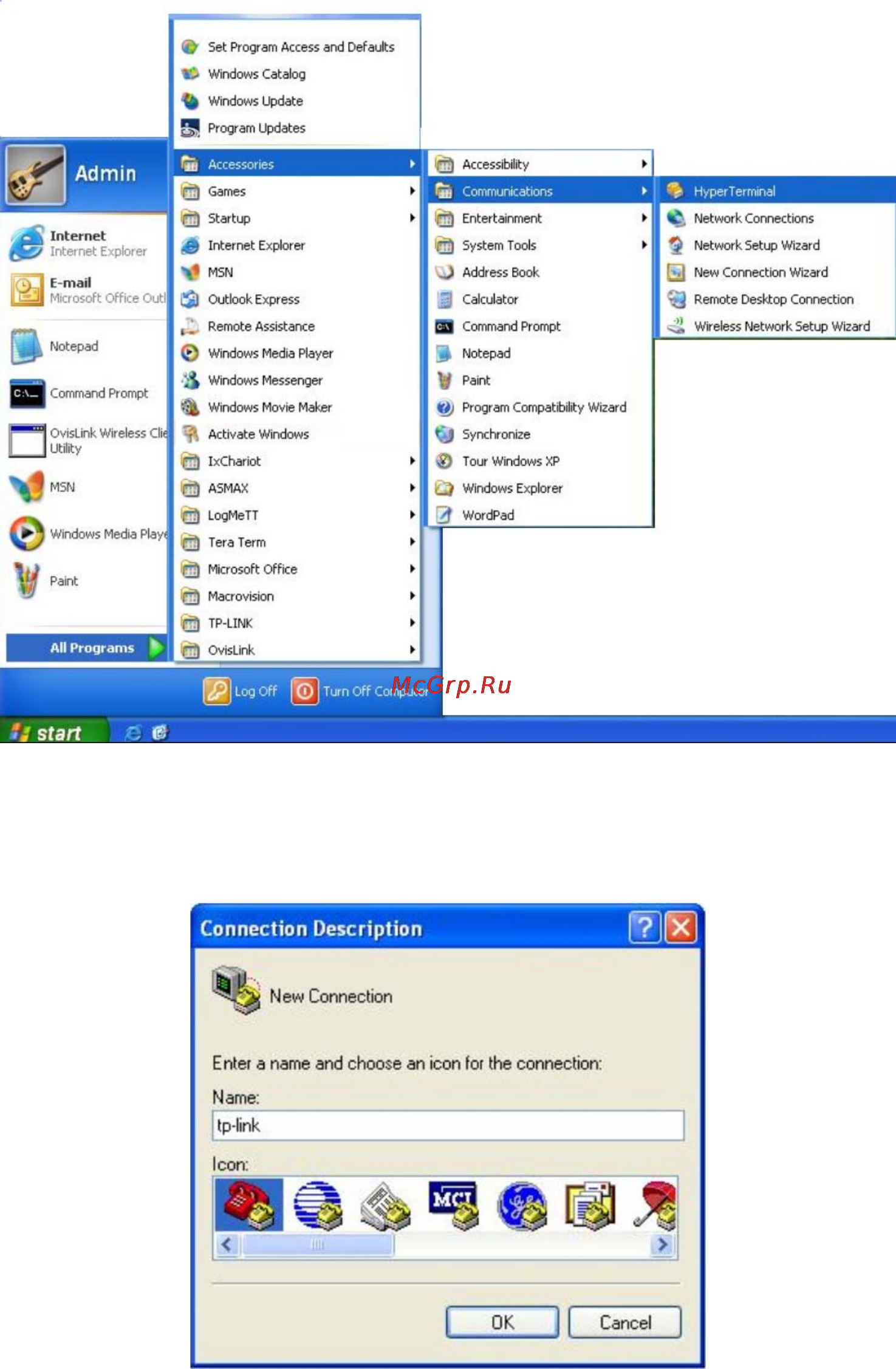

Figure C-2 Open Hyper Terminal

2） The Connection Description Window will prompt shown as the following figure. Enter a

name into the Name field and click OK.

Figure C-3 Connection Description

3） Select the port to connect in the figure below and click OK.

236
