period.

3) To continue, click Connect button after entering the Name and Password on Figure D-12.

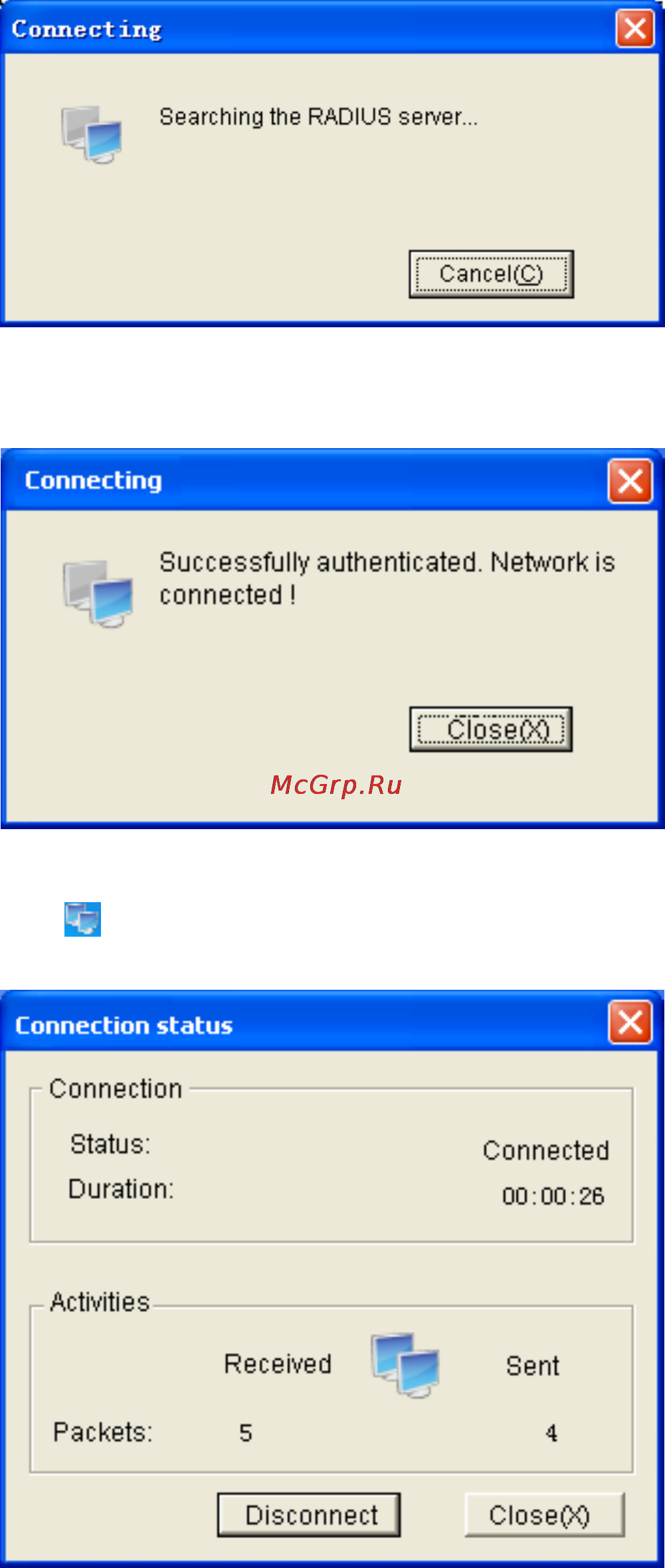

Then the following screen will appear to prompt that the Radius server is being searched.

Figure D-14 Authentication Dialog

4) When passing the authentication, the following screen will appear.

Figure D-15 Successfully Authenticated

5) Double click the icon

on the right corner of desktop, and then the following connection

status screen will pop up.

Figure D-16 Connection Status

246
