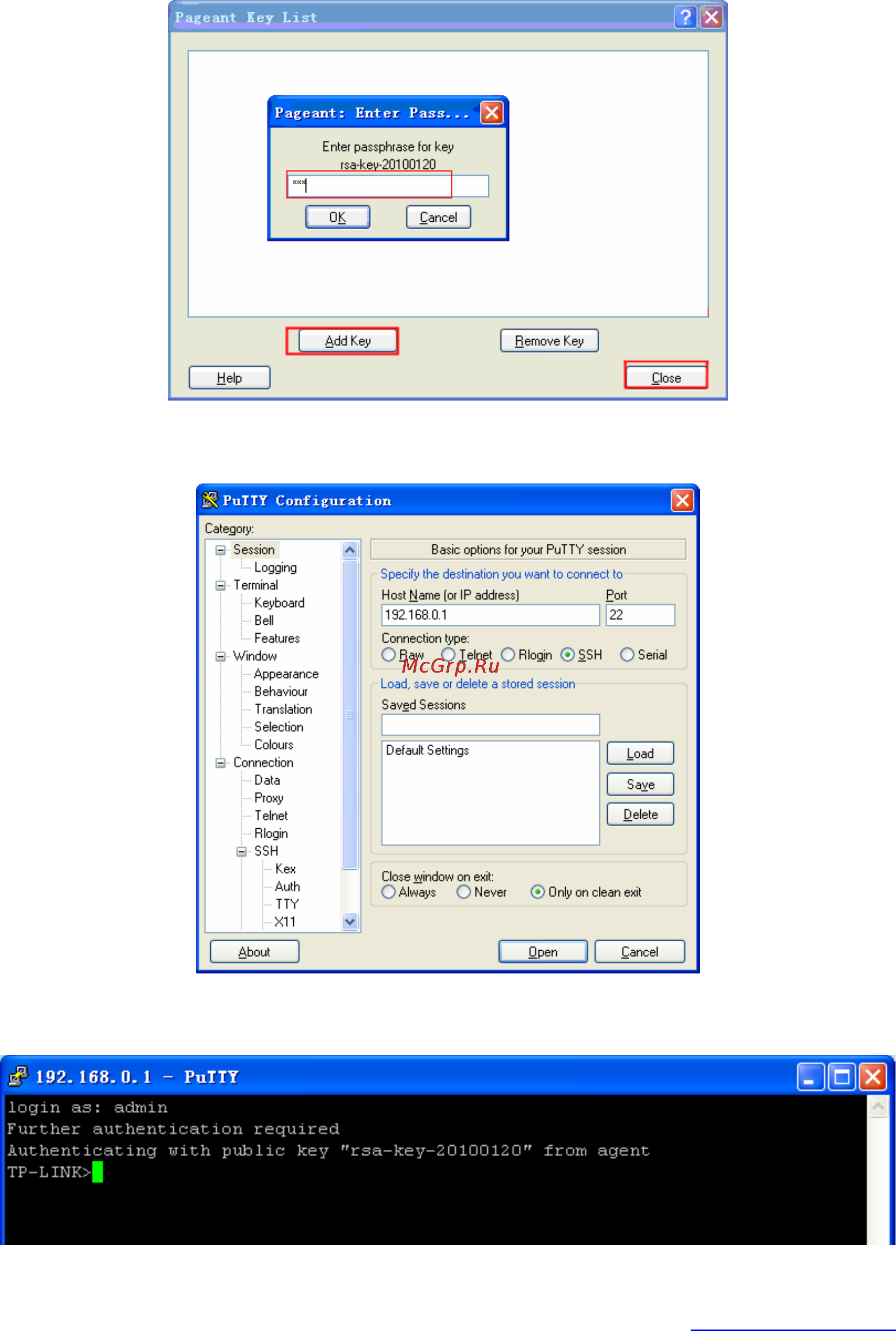

5. After the public key and private key are downloaded, please log on to the interface of PuTTY

and enter the IP address for login.

After successful authentication, please enter the login user name. If you log on to the switch

without entering password, it indicates that the key has been successfully downloaded.

Return to CONTENTS
