• Normal: In this mode, a port can dynamically register/deregister a VLAN and propagate the

dynamic/static VLAN information.

• Fixed: In this mode, a port cannot register/deregister a VLAN dynamically. It only propagates

static VLAN information. That is, the port in Fixed mode only permits the packets of its static

VLAN to pass.

• Forbidden: In this mode, a port cannot register/deregister VLANs. It only propagates VLAN 1

information. That is, the port in Forbidden mode only permits the packets of the default VLAN

(namely VLAN 1) to pass.

Choose the menu VLAN→GVRP to load the following page.

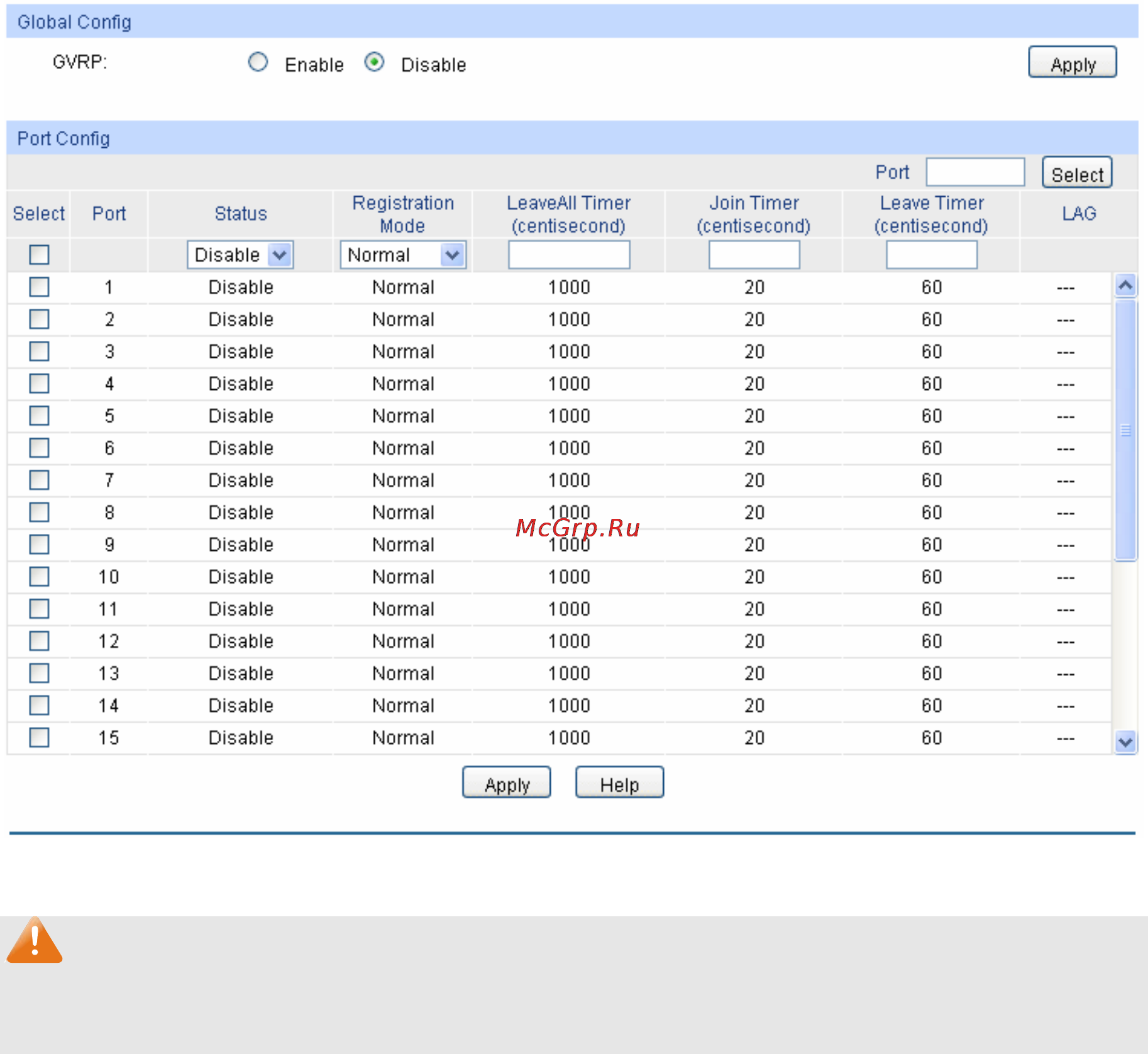

Figure 6-11 GVRP Config

Note:

If the GVRP feature is enabled for a member port of LAG, please ensure all the member ports of

this LAG are set to be in the same status and registration mode.

The following entries are displayed on this screen:

¾ Global Config

GVRP: Allows you to Enable/Disable the GVRP function.

¾ Port Config

Port Select: Click the Select button to quick-select the corresponding entry based

on the port number you entered.

Select: Select the desired port for configuration. It is multi-optional.
