-12-

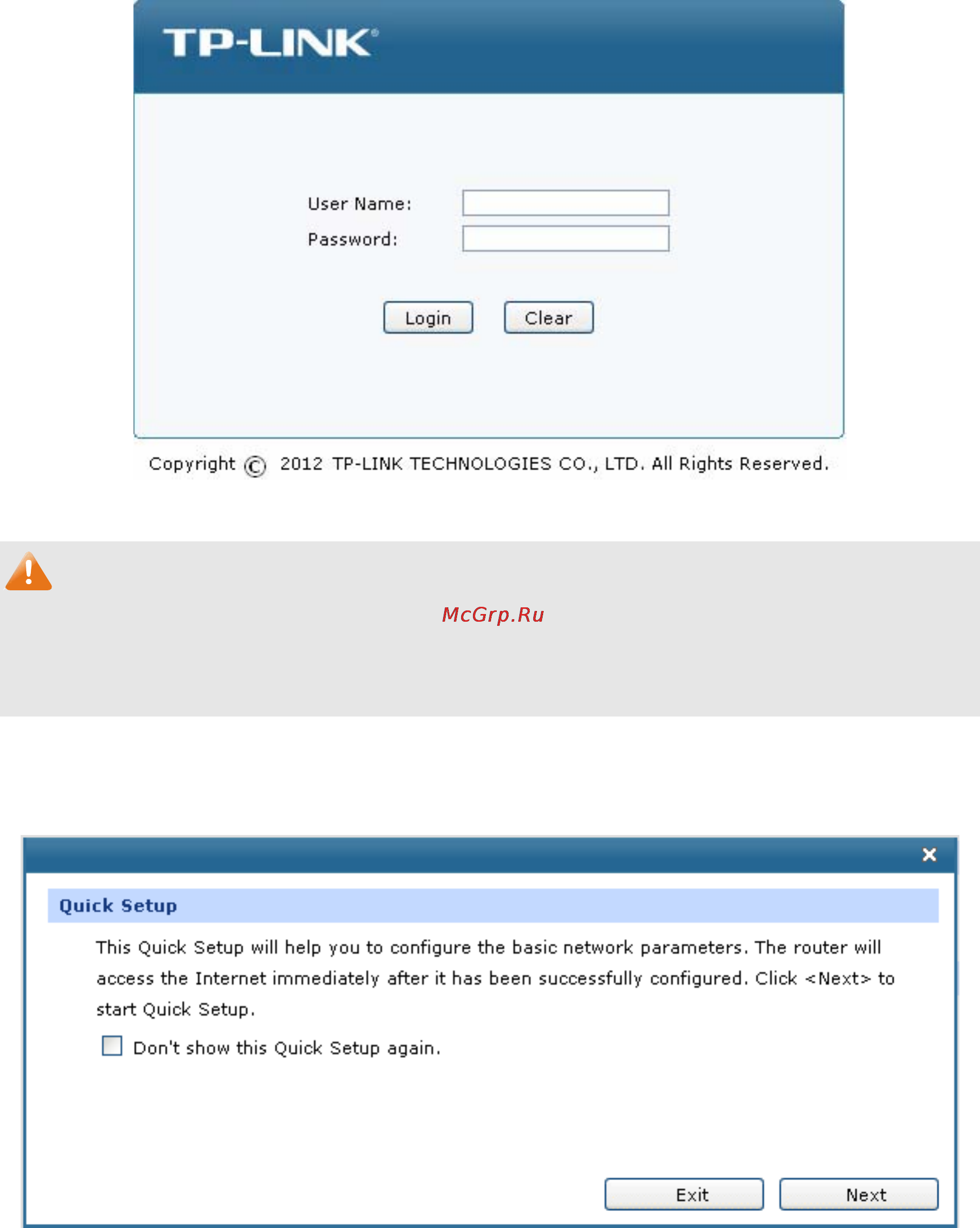

Figure 3-7

Note:

If the above screen (Figure 3-7) does not prompt, it means that your web-browser may be set to a

proxy. Choose Tools menu→Internet Options→Connections→LAN Settings, in the screen that

appears, cancel the Using Proxy checkbox, and click OK to finish it.

After a successful login, the “Quick Setup” screen will pop up as the Figure 3-8 shown. If it does not

prompt, you can click the Quick Setup on the left of the main menu. Then click <Next>.

Figure 3-8 Quick Setup

Select the total number of WAN ports you prefer to use as the Figure 3-9 shown. Then click <Next> to

load the WAN Port screen.
