Tp-Link TL-R460 [18/75] Chapter 4 configuring the router

TL-R460 Cable/DSL Router User Guide

Chapter 4. Configuring the Router

This User Guide recommends using the “Quick Installation Guide” for first-time

installation. For advanced users, if you want to know more about this device and make

use of its functions adequately, you need to read this chapter and configure advanced

settings though the Web-based Utility.

After your successful login, you can configure and manage the router. There are main

menus on the left of the Web-based Utility. Submenus will be available after you click one

of the main menus. On the center of the web-based Utility, you can configure the function.

Besides this, you can refer to the help on the right of the Web-based Utility. To apply any

settings you have altered on the page, please click the Save button.

4.1 Status

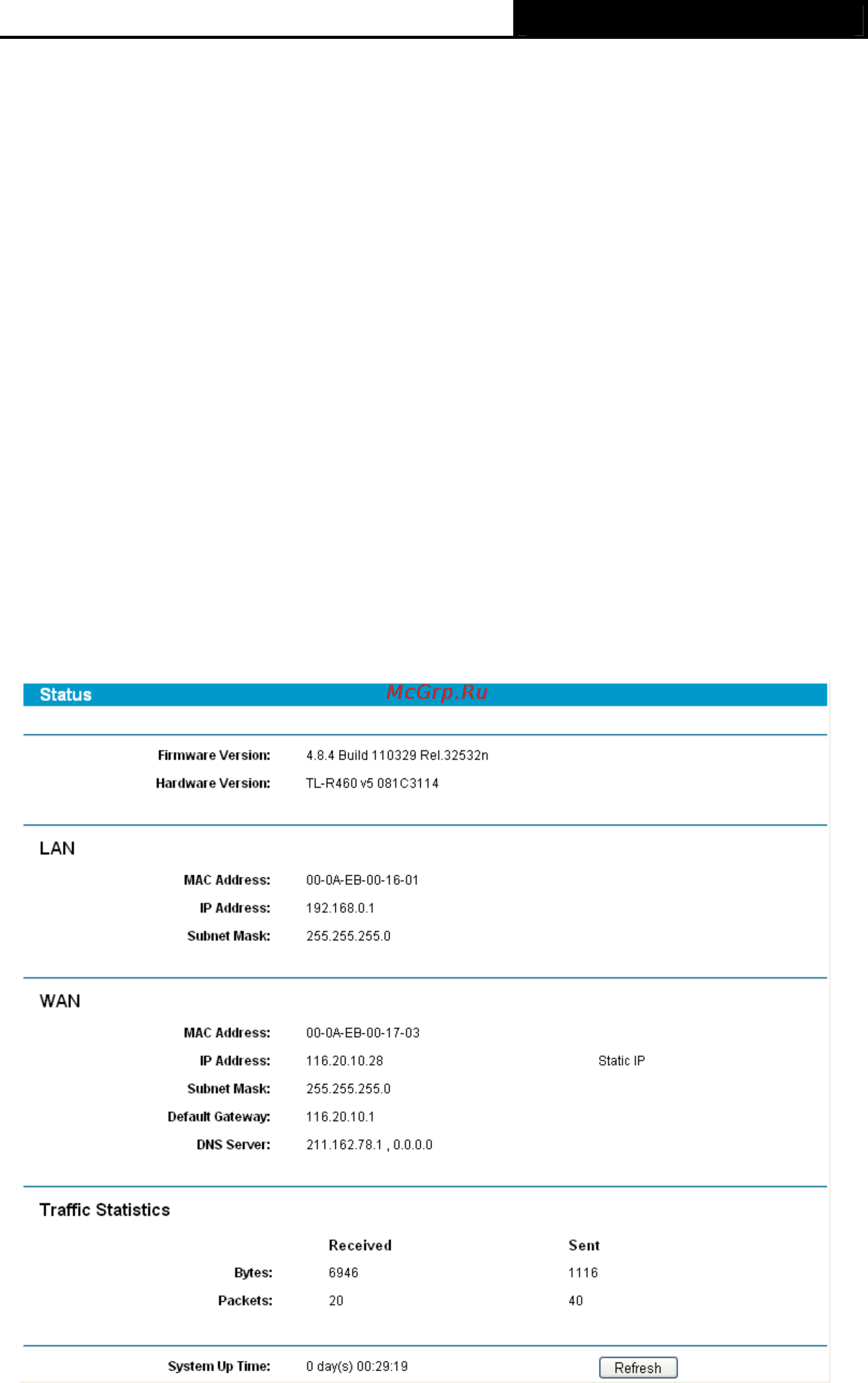

Choose “Status” menu, you can view the router's current status and configuration as

shown in Figure 4-1. All information is read-only.

Figure 4-1

¾ LAN - This field displays the current settings or information for the LAN, including

the “MAC address”, “IP address” and “Subnet Mask”.
