TL-R460 Cable/DSL Router User Guide
4

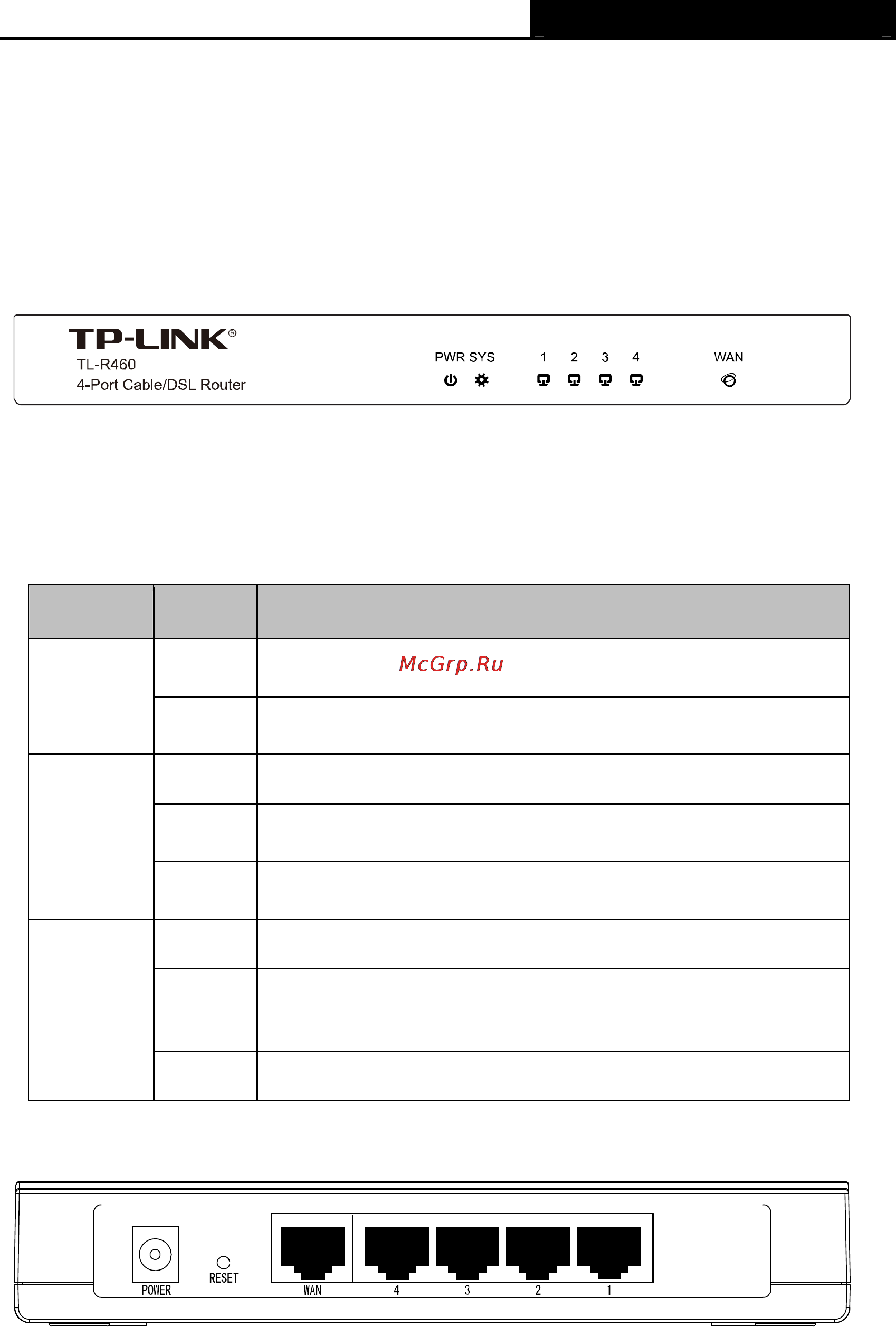

Chapter 2. Hardware Installation
2.1 Panel Layout
2.1.1 The Front Panel
Figure 2-1
The LED indicators displayed on the front panel, the status of these LED indicators
represent the device’s working circs. For details, please refer to LED Explanation.
LED Explanation:
Name Status
Indication
Off No Power.
PWR
On
Power on.
Off The Router has an error.
On
The Router is initializing.
SYS
Flashing
The Router is working properly.
Off There is no device linked to the corresponding port.
On
There are devices linked to the corresponding ports but no
data transmitted or received.
WAN/
1-4 (LAN)
Flashing Sending or receiving data over corresponding port.
2.1.2 The Rear Panel
Figure 2-2
The rear panel contains the following features.
¾ POWER: The Power plug is where you will connect the power adapter.
