TL-R460 Cable/DSL Router User Guide
50
Click the Clear All button to clear all entries.
Click the Save button to save all configurations.

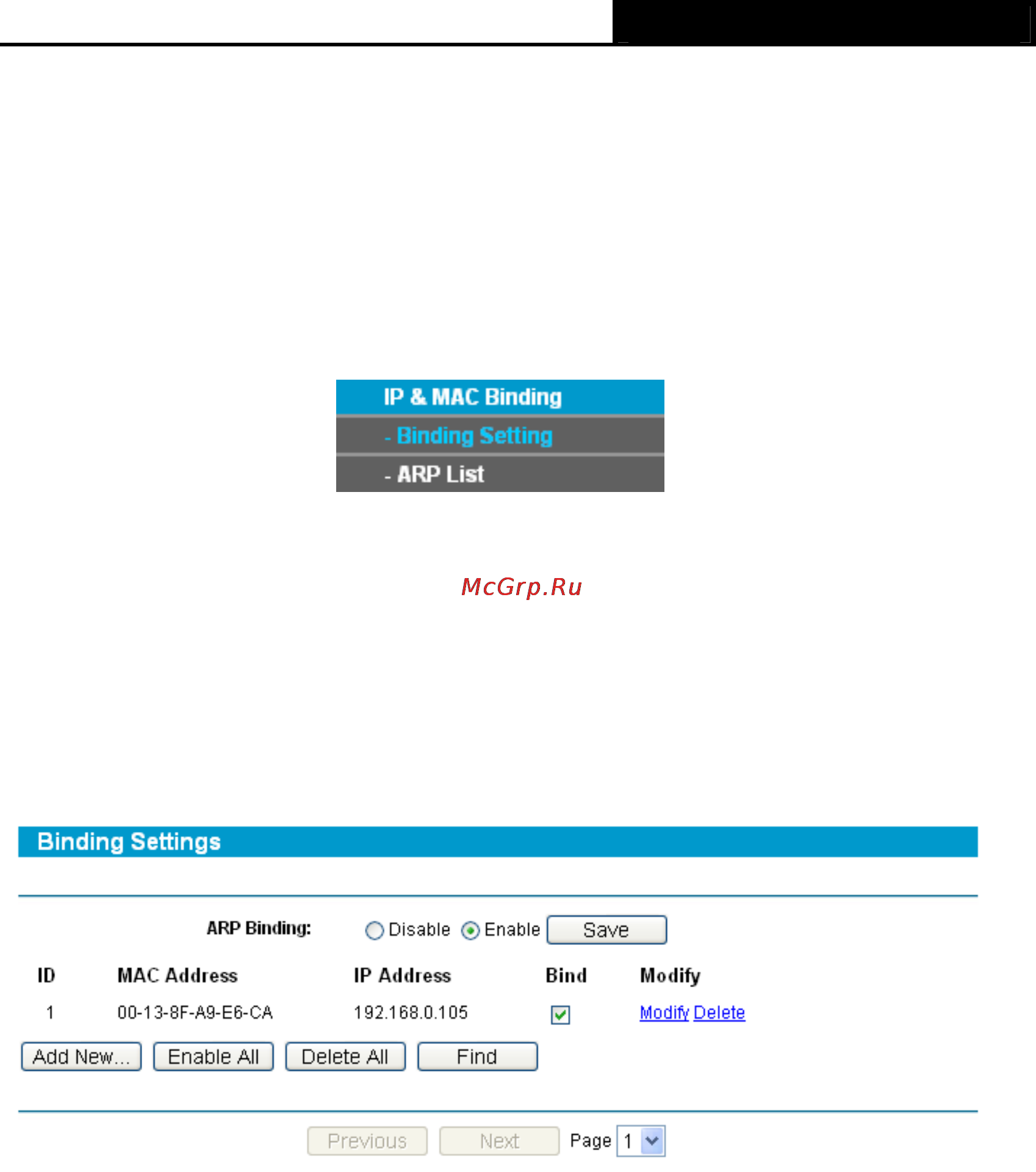

4.9 IP & MAC Binding
Choose menu “IP & MAC Binding”, you can see the submenus under the main menu:
Binding Setting and ARP List.
Figure 4-44
Click any of them, and you will be able to configure the corresponding function. The
detailed explanations for each submenu are provided below.
4.9.1 Binding Setting
Choose menu “IP & MAC Binding→Binding Setting”, you can view and add IP & MAC
binding entries on the next screen (shown in Figure 4-45).
Figure 4-45
¾ MAC Address - This field displays the MAC address of the controlled computer in
the LAN.
¾ IP Address - This field displays the assigned IP address of the controlled computer
in the LAN.
¾ Bind - Select Whether enable the arp binding or not. Only bind the MAC address
and IP address can the function take effect.
To add/modify an IP & MAC binding entry:
Step 1: Click Add New…/Modify shown in Figure 4-45, you will see a new screen
shown in Figure 4-46.
Step 2: Enter the MAC Address and IP Address in the corresponding field.
