TL-R460 Cable/DSL Router User Guide

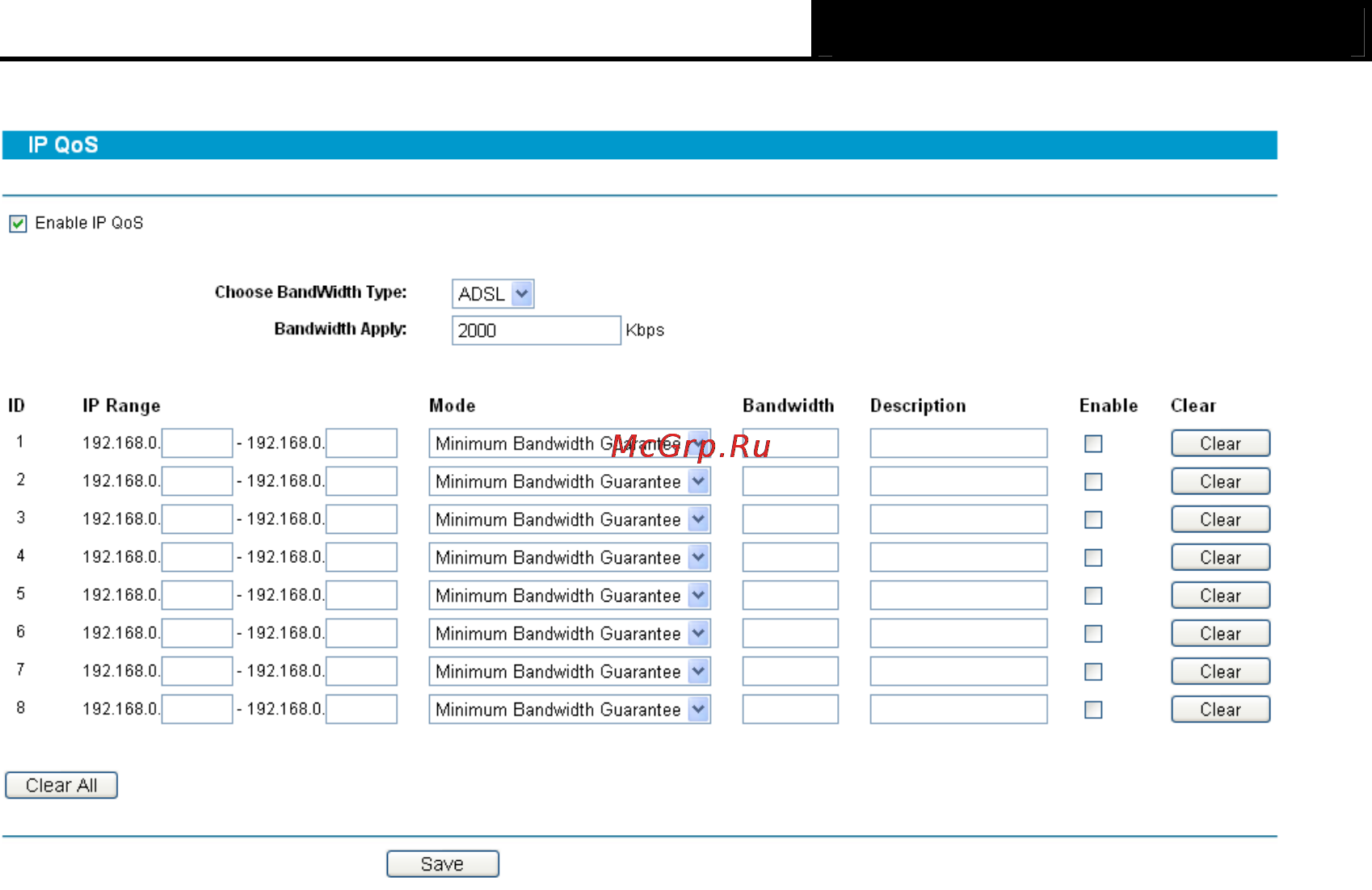

Figure 4-43

¾ Enable IP QoS - Select this option to enable IP QoS function.

¾ Choose BandWidth Type - Select the network connection type. You can select

ADSL or Other.

¾ Bandwidth Apply - Enter the bandwidth you get. If you are not clear about that,

please contact with your ISP for help.

¾ IP Range - Set the IP range of this entry.

¾ Mode - There are 2 types of mode: Minimum Bandwidth Guarantee and

Maximum Bandwidth Limit.

¾ Bandwidth - Set the bandwidth you supply to this entry.

¾ Description - Enter the description of this entry.

¾ Enable - Select this option to enable this entry.

)

Note:

1) The conversion relation of bandwidth: 1Mbps = 1000Kbps.

2) Please choose the Network Connection Type and set the bandwidth according

to your Network. If you are not clear about that, please contact with your ISP for

help.

3) If no IP QoS item is enabled, the Bandwidth Apply won't be effective.

4) IP address range for different entries could not have intersection with each

other.

5) After the configurations, click the Save button for the change to take effect.

Other configurations for the entries as shown in Figure 4-43:

Click the Clear button to clear single entry.
