Tp-Link TL-R460 [43/75] Ip address filtering

TL-R460 Cable/DSL Router User Guide

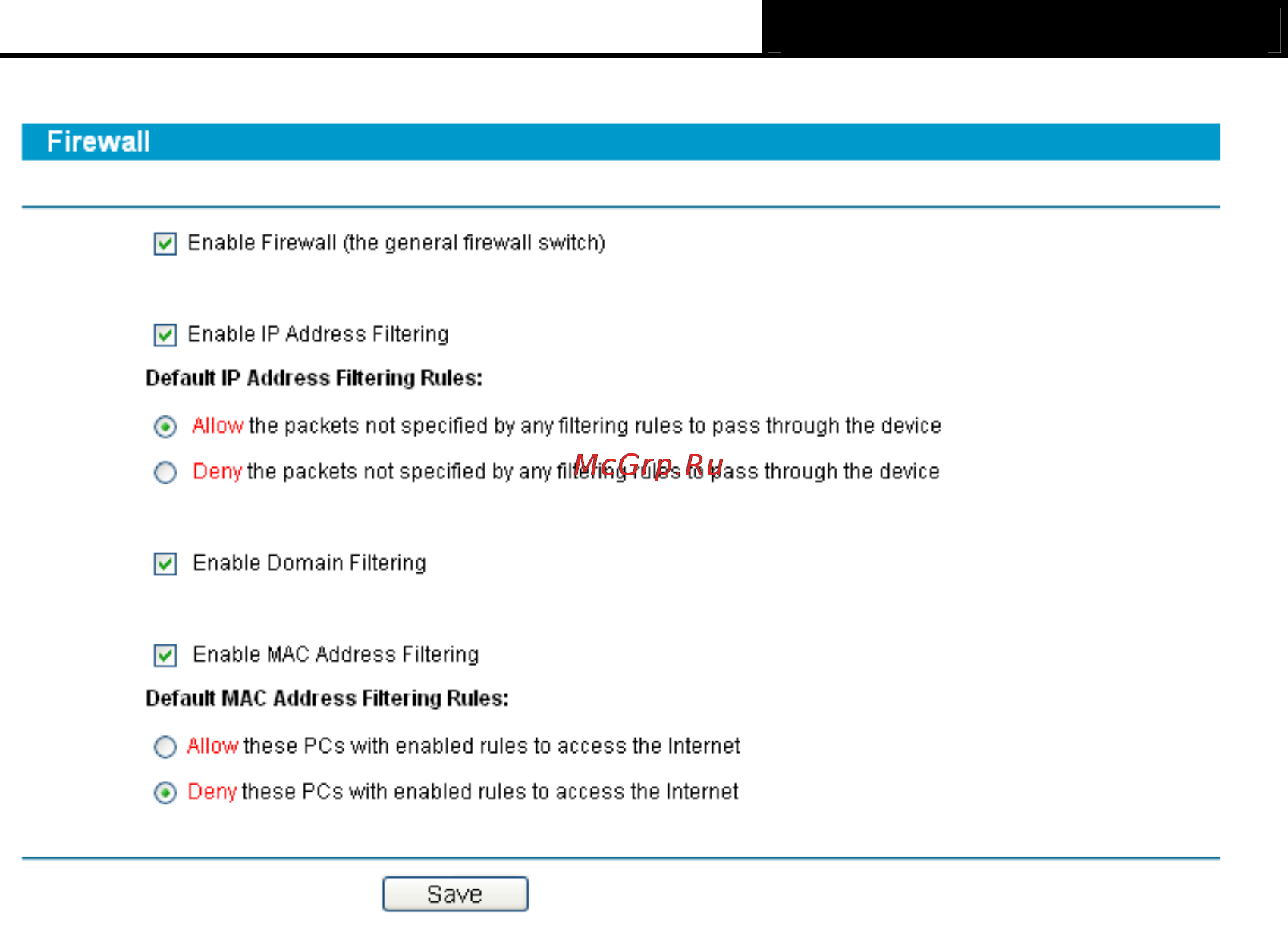

Figure 4-29

¾ Enable Firewall - Enable the general firewall switch or not.

¾ Enable IP Address Filtering - Enable the IP Address Filtering or not. There are two

default filtering rules, please select the rule for your need.

¾ Enable Domain Filtering - Enable the Domain Filtering or not. There are two

default filtering rules, please select the rule for your need.

¾ Enable MAC Address Filtering - Enable MAC Address Filtering or not. There are

two default filtering rules, please select the rule for your need.

4.6.2 IP Address Filtering

Choose menu “Security→IP Address Filtering”, you can configure the IP Address

filtering rule on the next screen (shown in Figure 4-30). The IP Address Filtering feature

allows you to control Internet Access by specific users on your LAN based on their IP

addresses.
