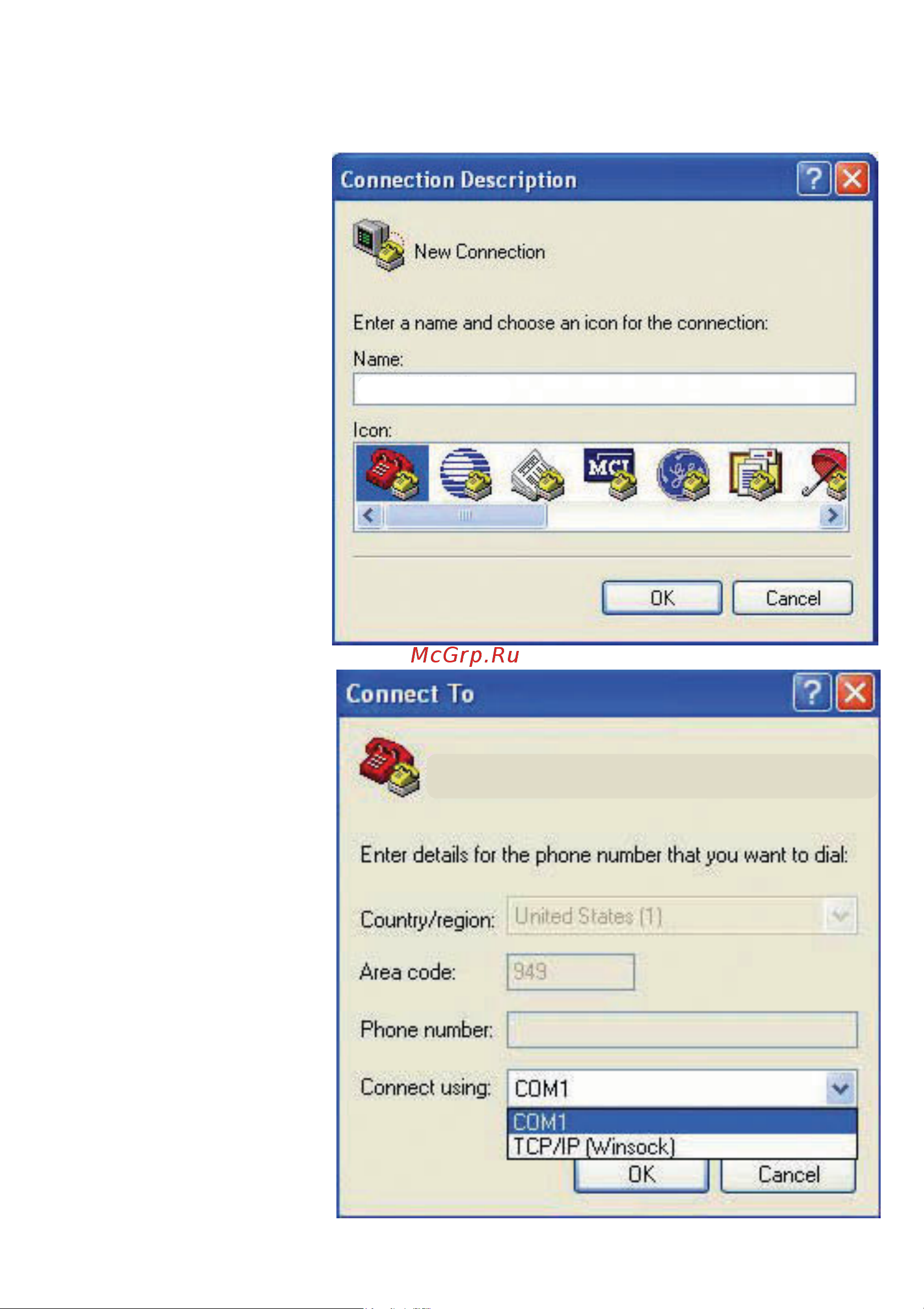

After the Hyper

Terminal window

appears:

Give this new

connection a name.

(e.g., DWL-1750)

Boot Code Firmware Upgrade (continued)

Select correct

COM port.

(e.g.,COM1)

DWL-1750
