Boot Code Firmware Upgrade (continued)

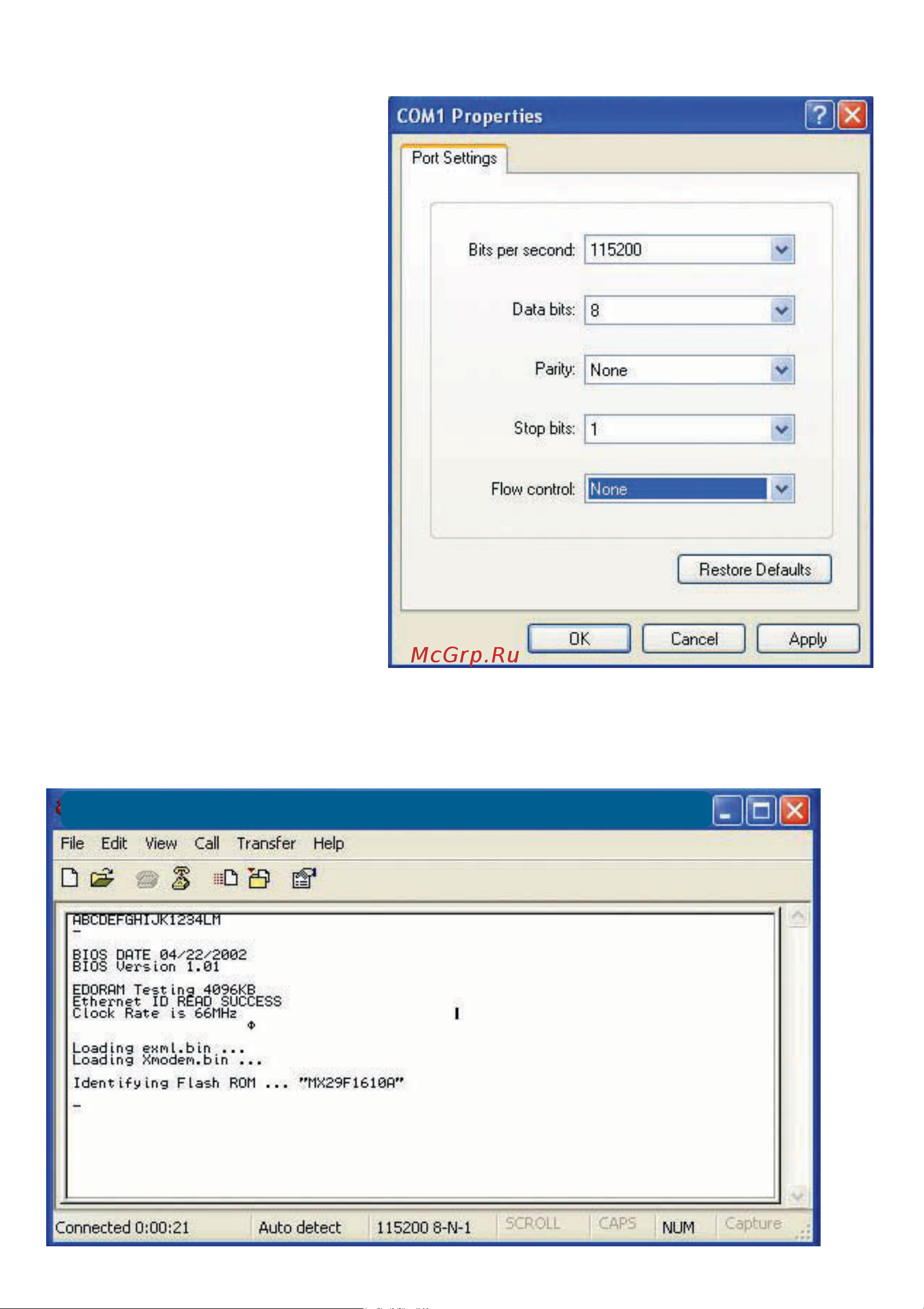

Set baud rate as 115200,

and flow control as None.

Then press OK to bring up

the HyperTerminal window.

Press Esc to reboot the DWL-1750.

After reboot, and when showing EDORAM Testing, press X to enter

console mode.

DWL-1750 - Hyper Terminal
