D-Link DGS-1100 MP/MPP Series Switch User Manual
31
Group Details
The Group Details page lists the devices connected to a specific port. Only devices that have been
recognized as supporting ONVIF or NVRs will be displayed.
To view the following window, click on the Port Information link in the navigation menu and then
click on the Group Details link for a port that has recognized devices connected to it:

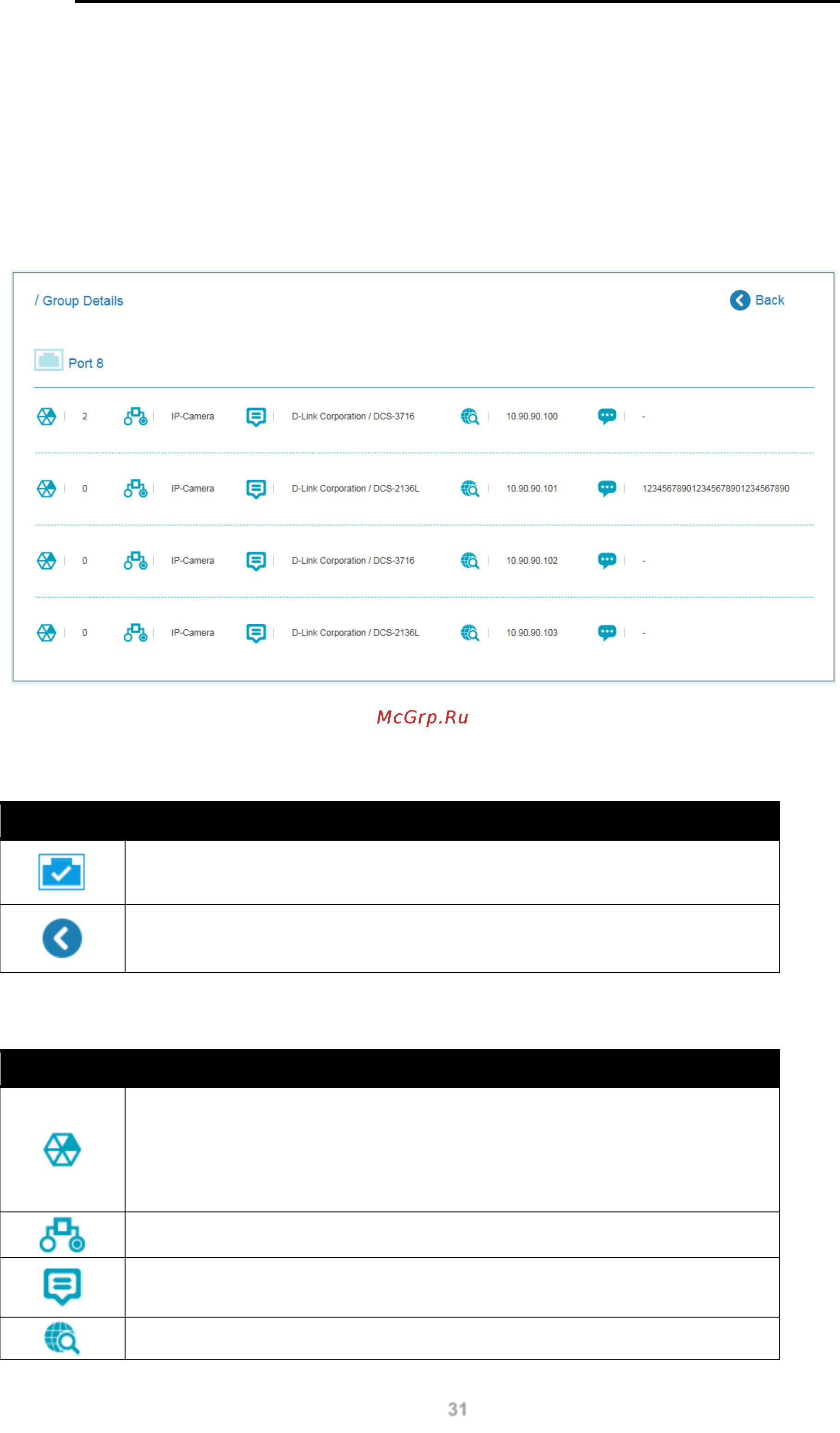

Figure 6-2 Group Details Window
The port number that the Group Details apply to is listed at the top of the page. The icon descriptions
are as follows:
Icon Description
The port number that the Group Details apply to.
Click to go back to the Port Information page.
Hover-over each field to get more information about each value. A breakdown of each field is below:
Icon Description
The Group Number that the device belongs to. All devices managed by an
NVR belong to the same Group Number. These are assigned sequentially,
with NVR1 having Group Number 1. If an NVR is removed, the Group
Numbers will be updated accordingly (if NVR1 is removed then Group
Number 2 will become Group Number 1).
The device type. This can be an IP-Camera or NVR.
The Model name of the IP-Camera. Nothing is displayed in this field if an
NVR is connected.
The IP address of the IP-Camera or NVR.
