D-Link DGS-1100 MP/MPP Series Switch User Manual
37
9. PoE Information
The PoE Information section provides information on the PoE usage of each port. The port number,
PoE status, health status, PoE budget and power consumption is listed for each port. It is possible
to click on the health status to be re-directed to the Health Diagnostic page. Hover-over each field
to get more information about each value.
To view the following window, click on the PoE Information link in the navigation menu:

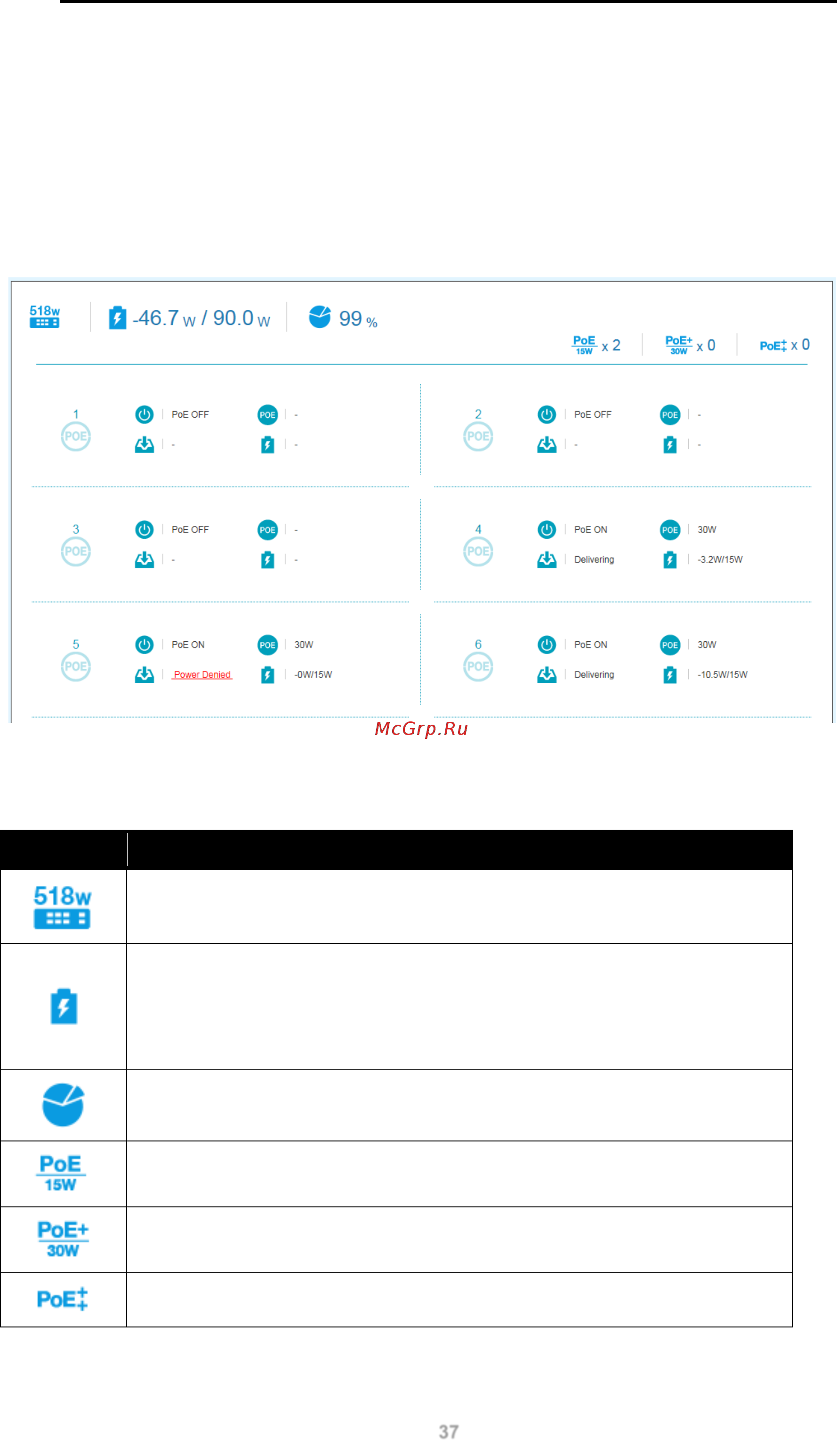

Figure 9-1 PoE Information Window
The total power budget, power consumption, power budget consumption and the types of PoE in
use are listed at the top of the page. The icon descriptions are as follows:
Icon Description
The total PoE power budget.
The PoE consumption of the switch. This is listed as one negative integer
and one positive integer. The negative integer is the power being consumed
by the PoE devices connected to the switch. The positive integer is the total
PoE budget for the ports currently using PoE, based on the type of PoE in
use.
The current utilization of PoE power budget.
The number of 15 W PoE devices discovered.
The number of 30 W PoE devices discovered.
The number of 60/70 W PoE devices discovered.
