D-Link DGS-1100 MP/MPP Series Switch User Manual
48
15. Save and Tools
Firmware Information
Firmware Upgrade & Backup
Configuration Restore & Backup
Reset
Reboot System
Firmware Information
This window is used to show firmware information.

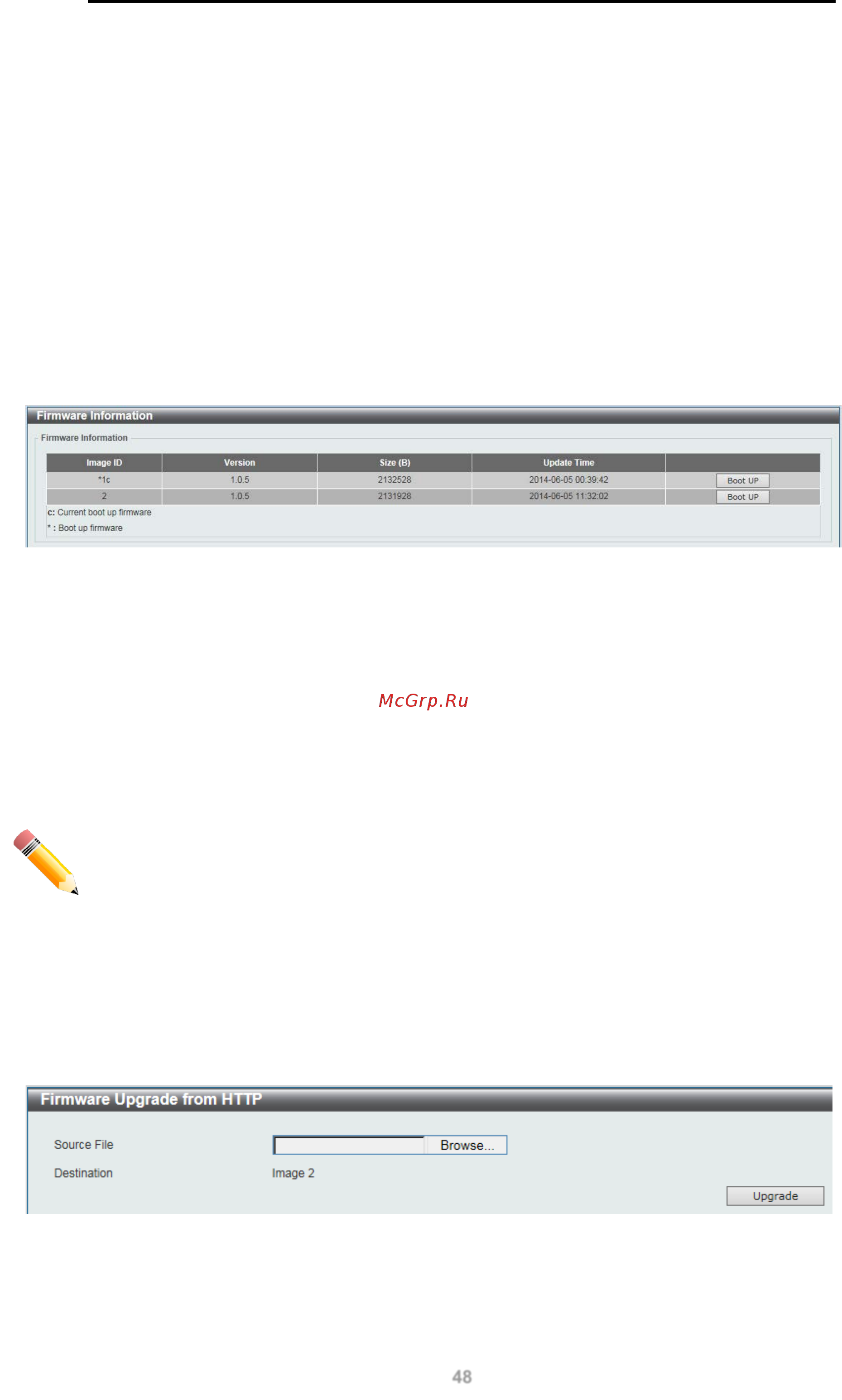

To view the following window, click Tools > Firmware Information, as shown below:
Figure 15-1 Firmware Information window
Boot Up: Clicking the Boot Up button will set that firmware image as the active image to use upon
the next system start up.
NOTE: Changing the firmware only happens after the switch has been manually rebooted. In order
to boot with the newly selected firmware, make sure that the switch is rebooted.
Firmware Upgrade & Backup
NOTE: When upgrading the firmware on the DGS-1100 MP/MPP Series switch, only
the image not currently active can be upgraded. All DGS-1100 MP/MPP Series
switches come with two images, however only one can be active at any time. (e.g. If
image 1 is currently in use, only image 2 can be upgraded, and vice versa.)
NOTE: If the switch is in HTTPS mode, the firmware or configuration cannot be
upgraded using regular HTTP.
Firmware Upgrade from HTTP
This window is used to initiate a firmware upgrade from a local PC using HTTP.
To view the following window, click Tools > Firmware Upgrade & Backup > Firmware Upgrade
from HTTP, as shown below:
Figure 15-2 Firmware Upgrade from HTTP window
The fields that can be configured are described below:
