D-Link DGS-1100 MP/MPP Series Switch User Manual
47
14. Health Diagnostic
The Health Diagnostic page is linked-to by the Port Information and PoE Information pages and
displays an overview of the port status. It contains the port number, Loopback Detection status,
Cable Link status, PoE Status, Tx/Rx Error Counter, number of Discovered Surveillance Devices
on the port (which links to the Group Details page) and the detected cable length. The page
automatically refreshes every 30 seconds.
To view the following window, click on the Health Diagnostic link in the navigation menu:

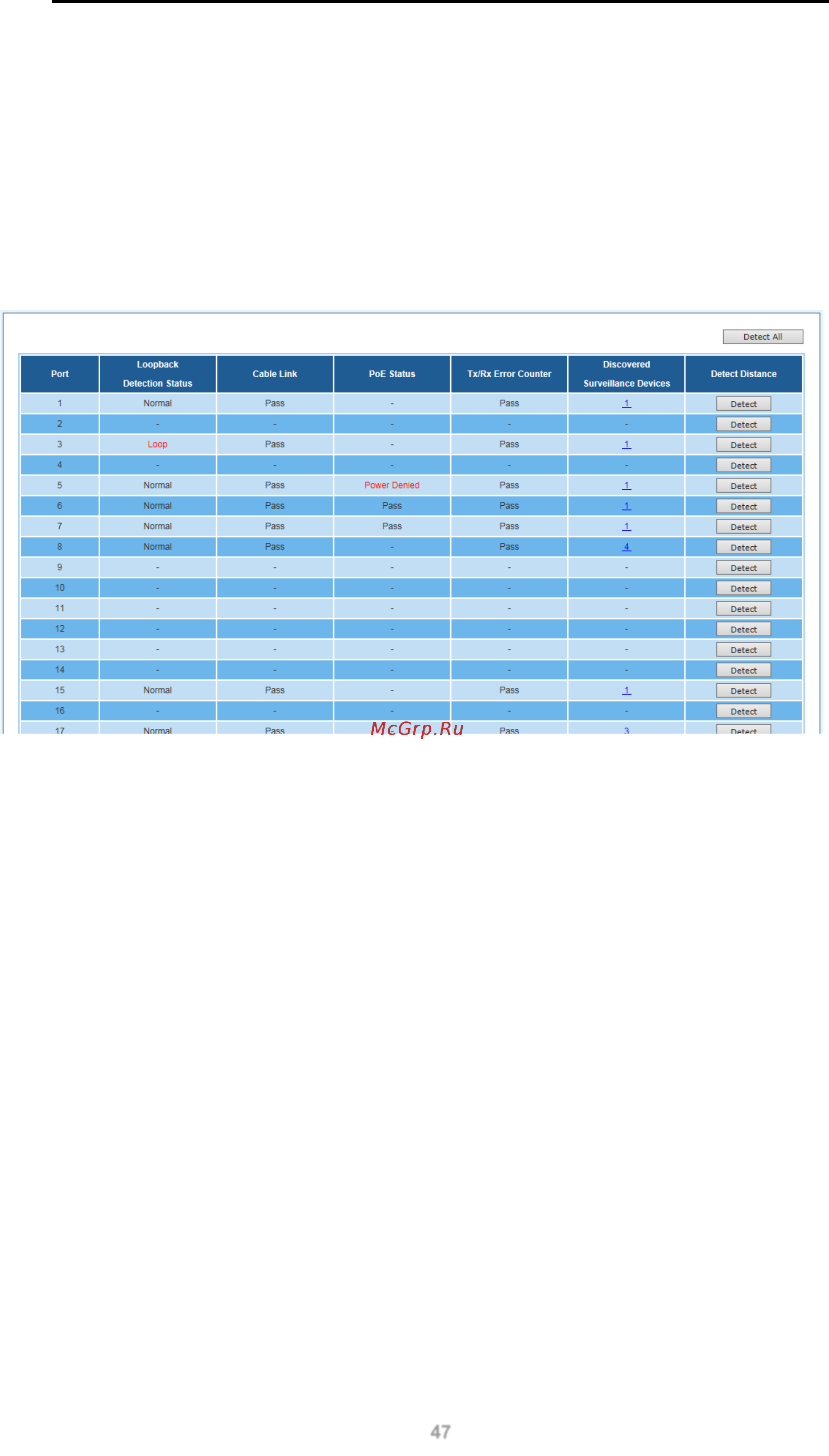

Figure 14-1 Health Diagnostic Window
Detect: Detect the cable length of the listed port.
Detect All: Detect the cable length of all ports.
