D-Link DGS-1100 MP/MPP Series Switch User Manual
27
Enabling and Disabling PoE
CAUTION: Before connecting the Powered Device (PD) and enabling 60/70 W
PoE, make sure it supports IEEE 802.3bt, as otherwise it will become damaged.
The power status of each port can be changed by clicking the power icon on each port. The default
setting for PoE is on. To change the PoE type, first disable PoE and then re-enable it using the
type of PoE required.
The following dialogue box will be displayed when enabling PoE on a port:

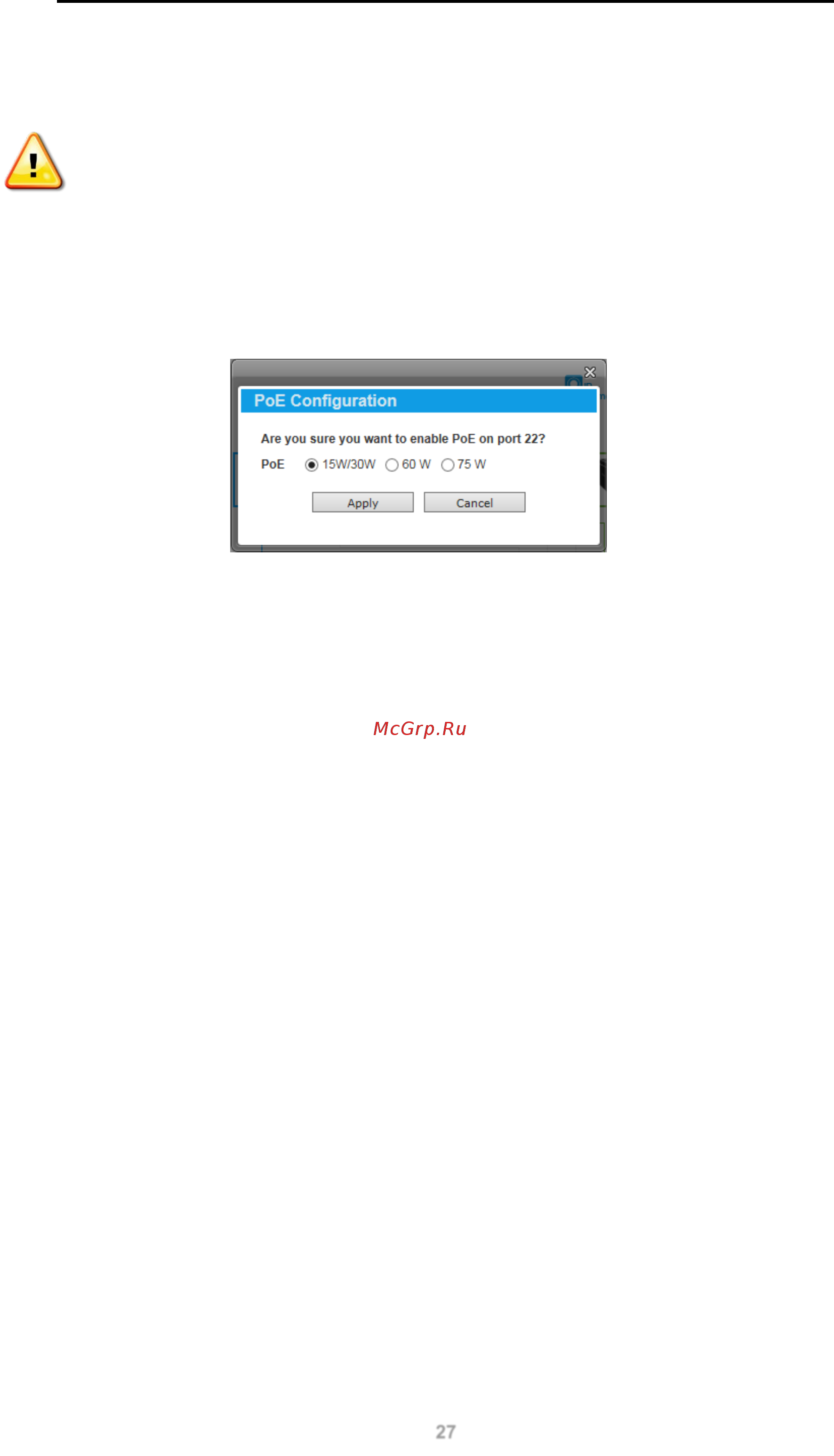

Figure 5-3 PoE Configuration
Choose the type of PoE required. This can be either 15/30 W (60 W or 75 W is for MPP Series
only).
Click the Apply button to accept the changes made.
