D-Link DGS-1100 MP/MPP Series Switch User Manual
26

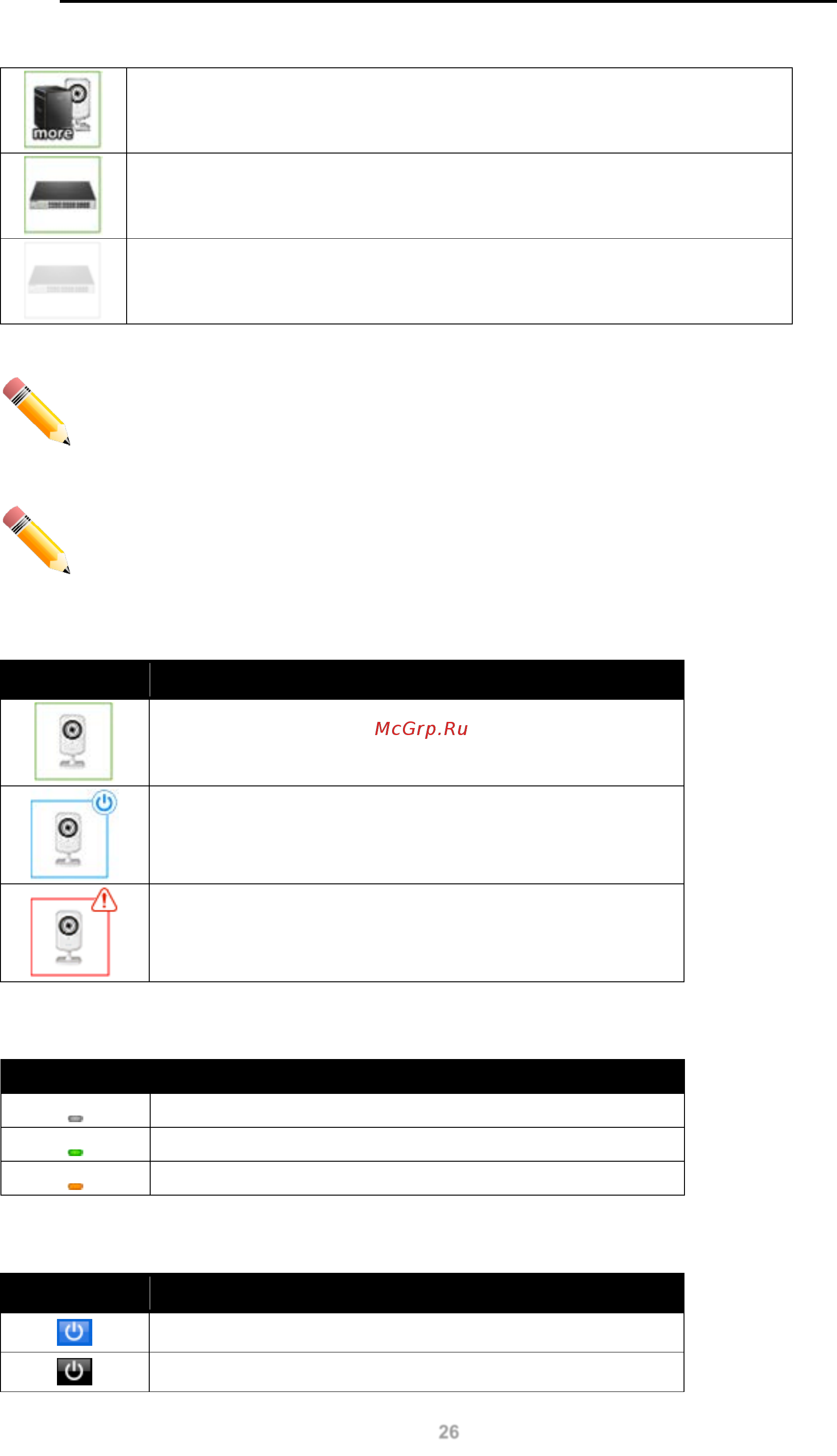

One ONVIF IP-Camera and multiple NVRs discovered on this port.
This port is set as uplink port and it is link up.
This port is set as uplink port and it is link down.
NOTE: A breakdown of the device icons can be found by clicking the Help menu
at the top of the page.
NOTE: The system probes for new IP-Cameras every 30 seconds.
The icon border indicates the PoE status for the port:
Icon Border Description
The device is operational but not powered by PoE.
The device is operational and is powered by PoE.
The device has malfunctioned and there is a problem with
the port or device.
The port status indicators dictate the speed and status of the link:
Port Status Description
The link is down.
The port is connected at 1 Gbps.
The port is connected at 10/100 Mbps.
The PoE status is indicated by the power icon on each port:
Port Status Description
PoE is enabled on the port.
PoE is disabled on the port.
