D-Link DGS-1100 MP/MPP Series Switch User Manual
25

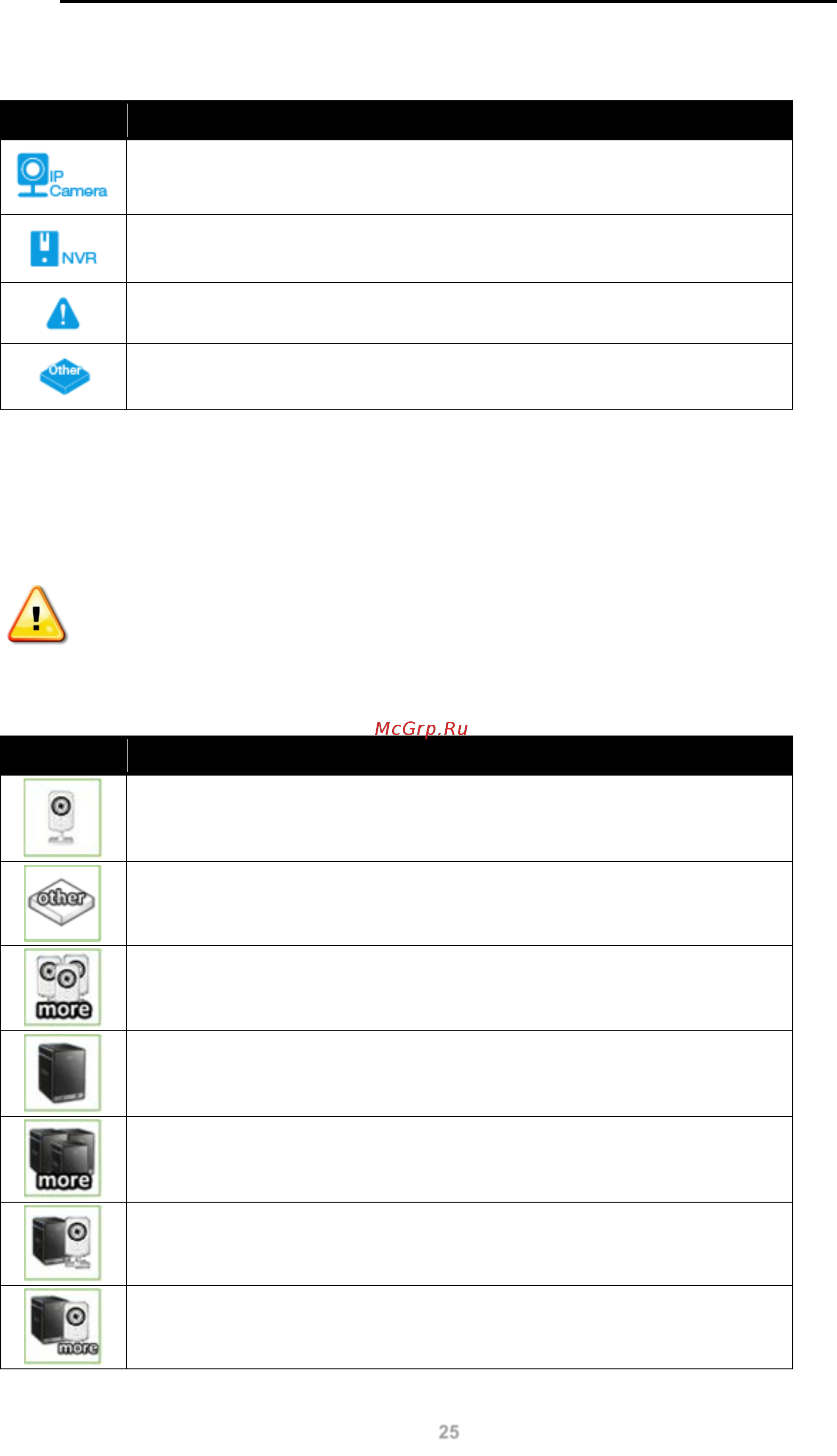

The icon descriptions are as follows:
Icon Description
The total number of IP-Cameras detected.
The total number of NVRs detected.
The number of warnings on the system. Consult the Surveillance Log and
Health Diagnostic pages for more information.
The number of ports that have an unknown device connected that does not
support ONVIF.
The Surveillance Topology gives you more information about what is connected to each port.
Hover over each device icon to get more information about the recognized devices, such as: the
number of devices, device type, IP address, power consumption, link speed and errors. Click on
the ‘more’ link to get more information about the devices connected to a port. Each port can also
be powered-on and off using PoE by clicking the power symbol on each port.
CAUTION: Before connecting the Powered Device (PD) and enabling 60/70 W
PoE, make sure it supports IEEE 802.3bt, as otherwise it will become damaged.
See below for more information on enabling and disabling PoE.
A breakdown of each device icon is below:
Icon Description
One ONVIF IP-Camera discovered on this port.
The link is up but no ONVIF IP-Camera or NVR has been discovered on this
port.
Multiple ONVIF IP-Cameras discovered on this port.
One NVR discovered on this port. Any device fetching surveillance stream
from IP-Camera will be recognized as NVR.
Multiple NVRs discovered on this port.
One ONVIF IP-Camera and one NVR discovered on this port.
Multiple ONVIF IP-Cameras and one NVR discovered on this port.
