Tp-Link TD-W8960N V4 [26/110] Layer2 interface

TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide

This Advanced Setup section mainly introduces how to configure the Router for adequate use.

The detailed explanations for each subsection are provided below.



Note:

To completely configure the WAN Interface, you need to first select the Layer2 Interface (4.4.1

Layer2 Interface) according to the connection ISP provides you, and then to select the type of the

connection (4.4.2

WAN Service) for the further configuration.

4.4.1 Layer2 Interface

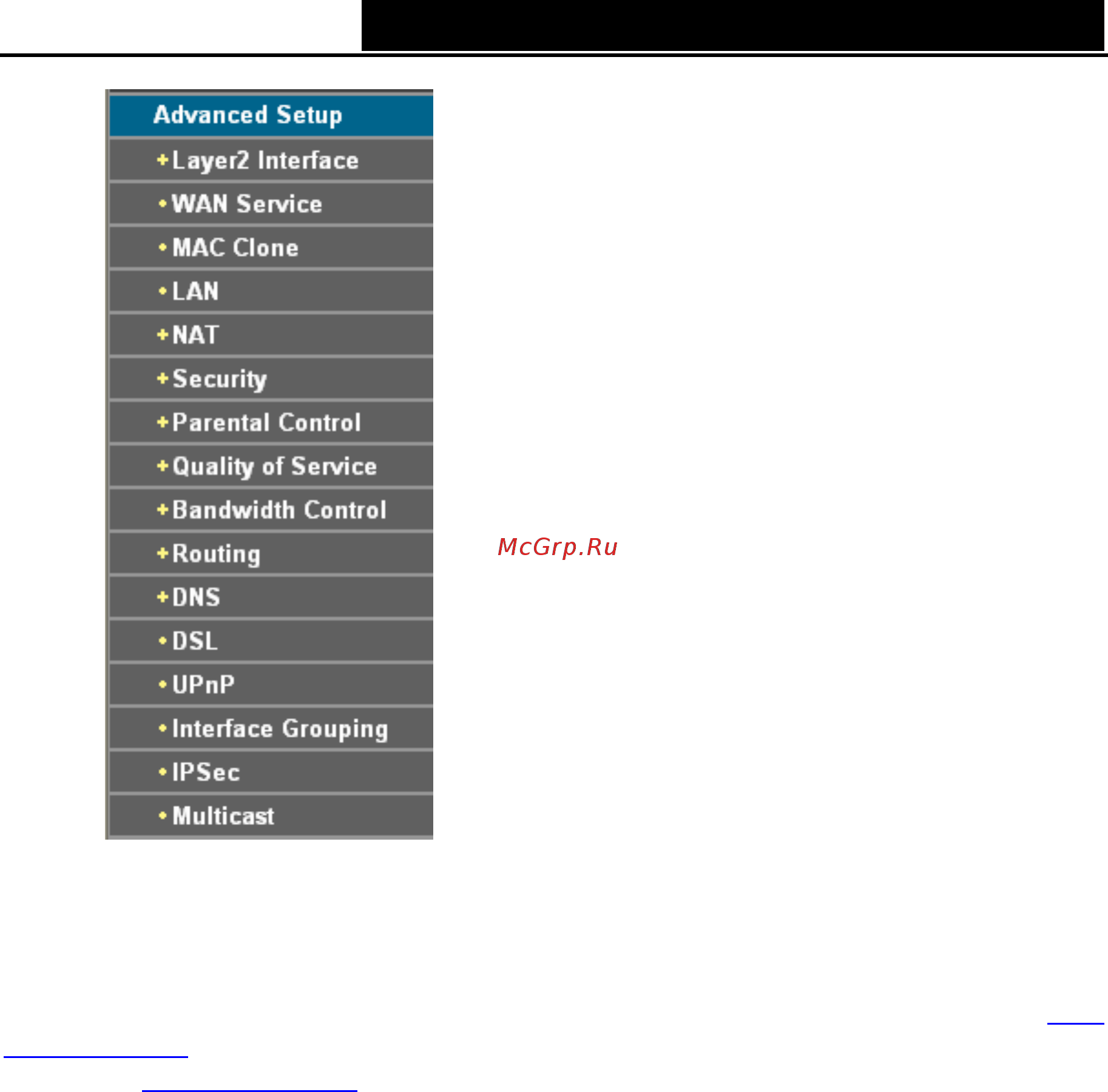

Choose “Advanced Setup”“Layer2 Interface”, and you can select WAN Service Interface

(layer2 interface) over ATM interface or ETH interface.

 ATM Interface: Configure the Router to access Internet as an ADSL user. ISP provides you

VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings and the DSL Interface

with RJ11 connector. (Figure 2-1)

 ETH Interface: Configu

re the Router to access Internet as an Ethernet user. ISP provides

you Broadband Internet Service and the Ethernet Interface with RJ45 connector.

4.4.1.1 ATM interface

Choose “Ad

vanced Setup”“Layer2 InterfaceATM interface”, you can Configure ATM

interfaces on the screen below.
