TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide

After

completing the above configuration, click the Save/Apply button to make it take effect and

then you will see the following list as shown in Figure 4-48. If you want to modify the rule, click the

Edit button. If you want to delete the rule, check

the Remove box first and then click the Remove

button.

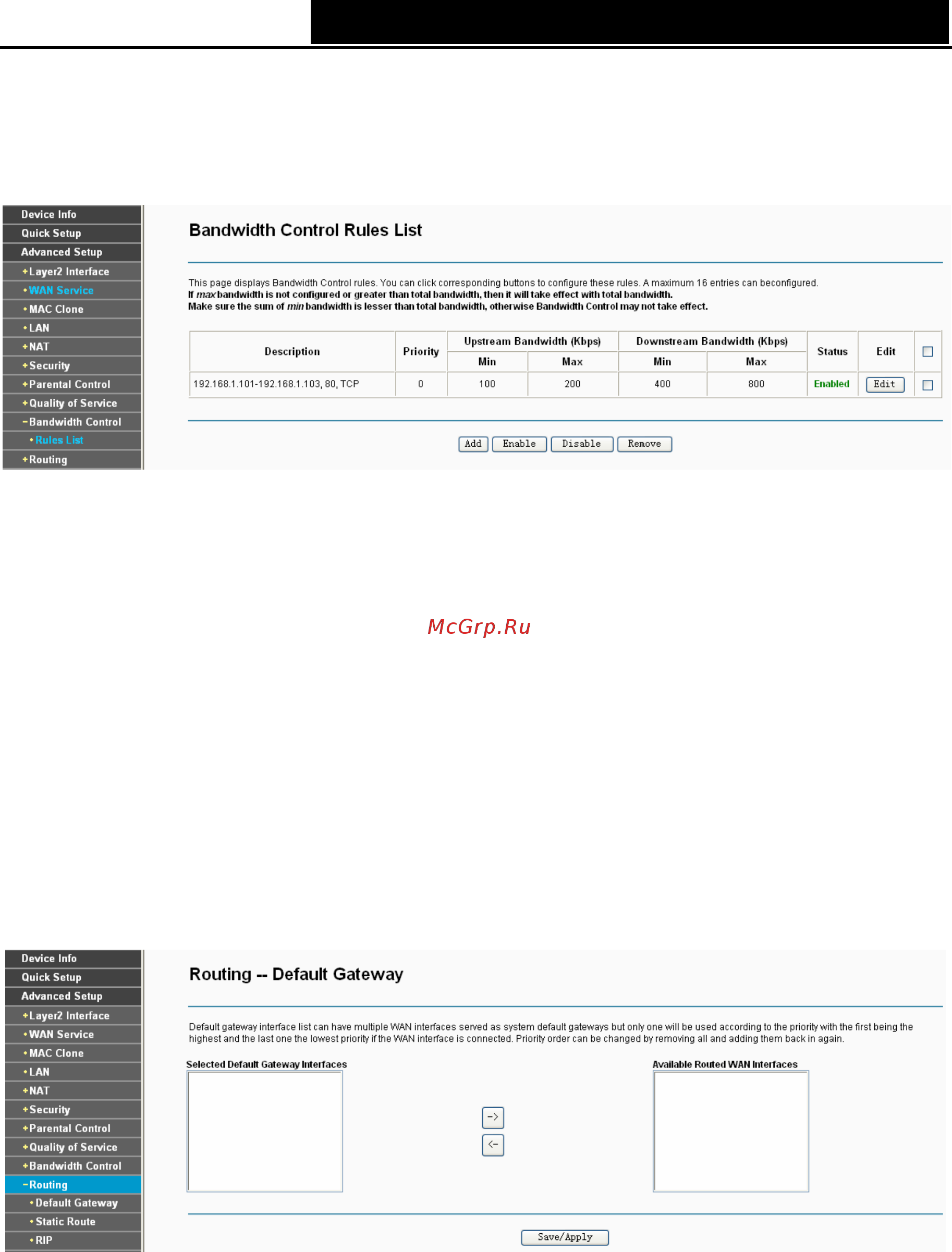

Figure 4-48



Note:

The priority, max upstream/downstream rate and min upstream/downstream rate work on

allocation of surplus upload/download bandwidth. For rules with different priority, the surplus

bandwidth is firstly allocated to the rule with the highest priority according to its max

upstream/downstream rate. If there still has surplus bandwidth, it is allocated to the rule with

hypo-high priority. For rules with the same priority, the surplus bandwidth is allocated to them

according to their min upstream/downstream rate. The greater a rule’s min upstream/downstream

rate is, the more bandwidth it gets.

4.4.10 Routing

Choose “Advanced Setup”“Routing”, it includes three menus: Default Gateway, Static Route

and RIP (shown in Figure 4-49). The detailed descriptions are provided below.

Figure 4-49

4.4.10.1 Default Gateway

Choose “Advanced Set

up”“Routing”“Default Gateway”, you can see the Default Gateway

screen.
