TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide

 Den

y: Block the PCs to access the specified URL.

To add a URL Filter entry:

1. Check the Deny or Allow radio button. Here we take Deny for example.

2. Click the Add button in Figure 4-38 and then you will see the next screen as shown in Figure

4-39. Enter the URL Address and Port Number.

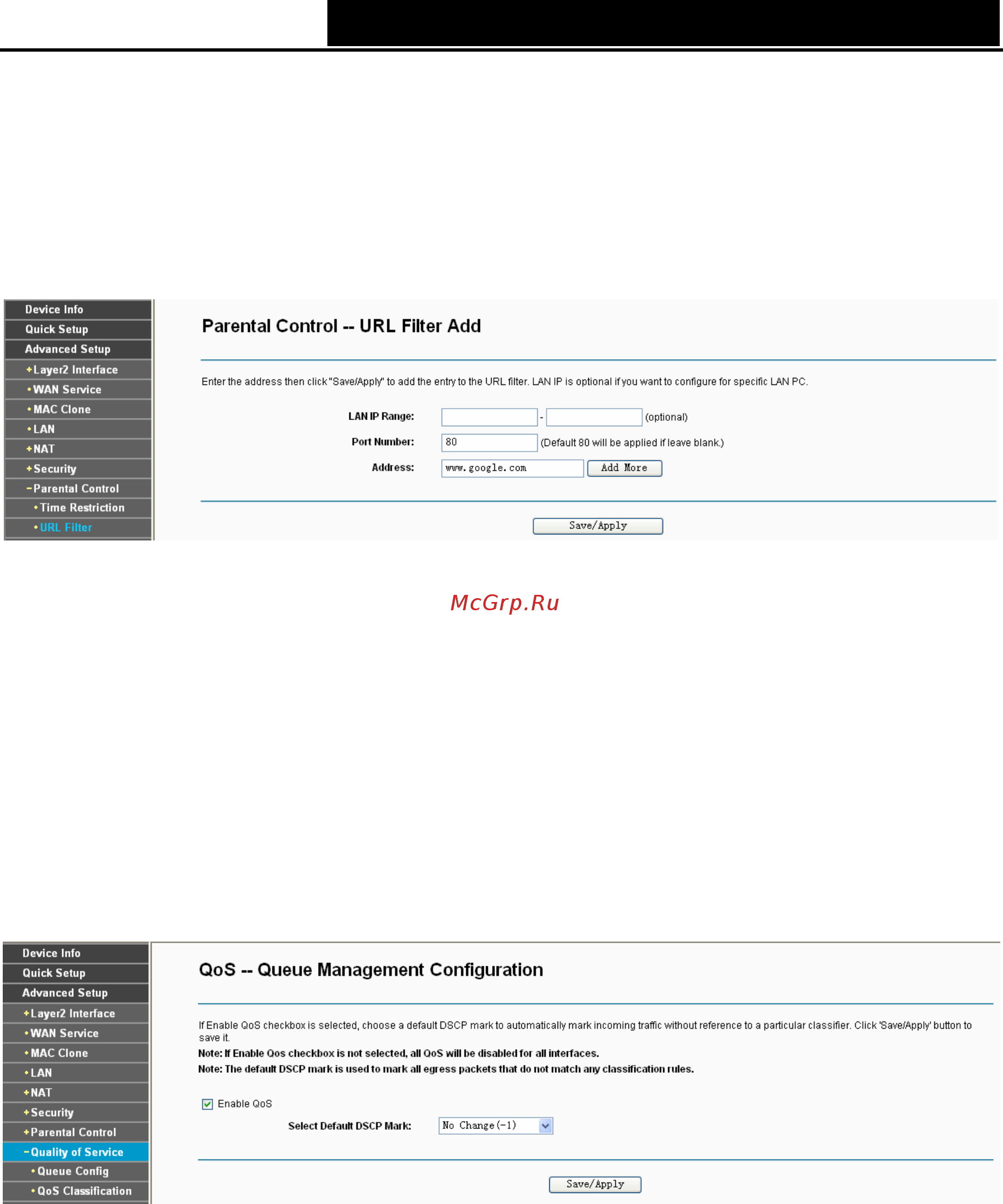

Figure 4-39

3. Click Save/Apply to save this entry and then you will see your settings as shown in Figure

4-38. Every computer connected to the router will not access this URL address on the p

ort.

4.4.8 Quality of Service

Choose “Advanced Setup”“Quality of Service”, you can enable QoS (Quality of Service) on

the screen shown in Figure 4-40. QoS helps to prioritize data as it enters your router. By attaching

special identification marks or headers to incoming packets, QoS determines which queue the

packets enter, based priority. This is useful when there are certain types of data you want to give

higher priority, such as voice data packets give higher priority than Web data packets. This option

will provide better service of selected network traffic over various technologies.

Figure 4-40

Select the Enable QoS checkbox to enable all QoS for all interfaces.

Select a Default DSCP make from drop-down list to automatically mark incoming traffic without

reference to a particular classifier.

Click Save/Apply to save the current configuration.



Note:

The default DSCP mark is used to mark all egress packets that do not match any classification

rules.
