Tp-Link TD-W8960N V4 [48/110] Url filter

TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide

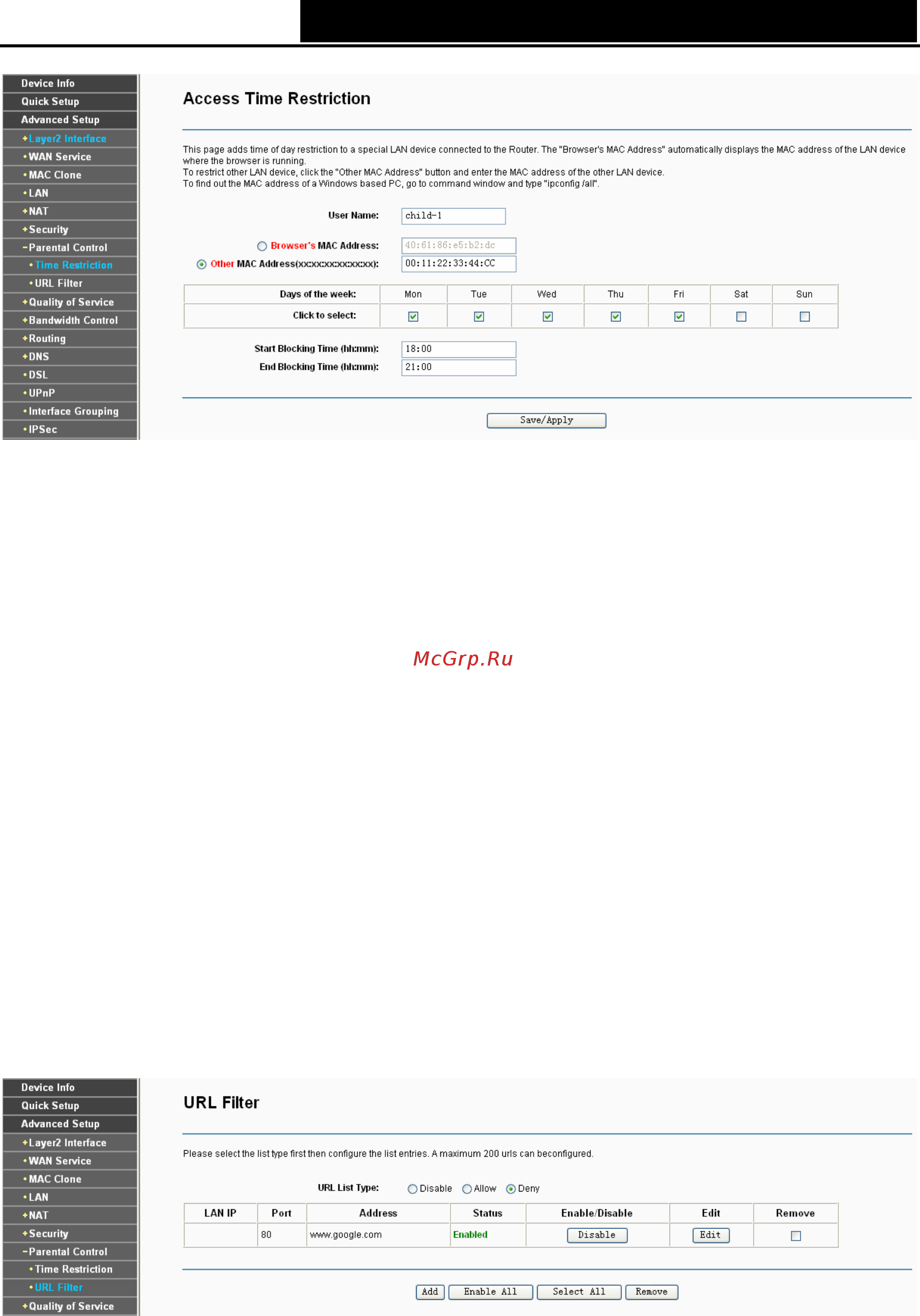

Figure 4-37

2. Enter the User Name of the LAN device connected to the Router.

3. To restrict the device where the browser is running, select the Browser's MAC Address

radio button. The MAC Address has been automatically displayed in the text box. To restrict

other LAN devices, click Other MAC Address radio button and enter the MAC address of the

other LAN device.

4. Select the day to allow the rule to take effect in the table.

5. Enter the Start Blocking Time and End Blocking Time in the text box separately, and then

the device controlled will then be unable to connect to the internet during that time.

6. Click Save/Apply to save this entry and then you will see your settings as shown in Figure

4-36.



Note:

The Time Restriction will not work correctly before the time of the device is set in “Management

 Internet Time”.

4.4.7.2 URL Filter

This feature allows you to

configure the filter rules based on URL to control all the computers in the

LAN to access the specified port, and it is independent with Time Restriction feature.

Figure 4-38

There are two policies for the URL Filter.

 Disable: URL Filter function will not take effect.

 Allow: Only allow the PCs to access the specified URL.
