04
Gigabit L2 Managed Switch
Introduction

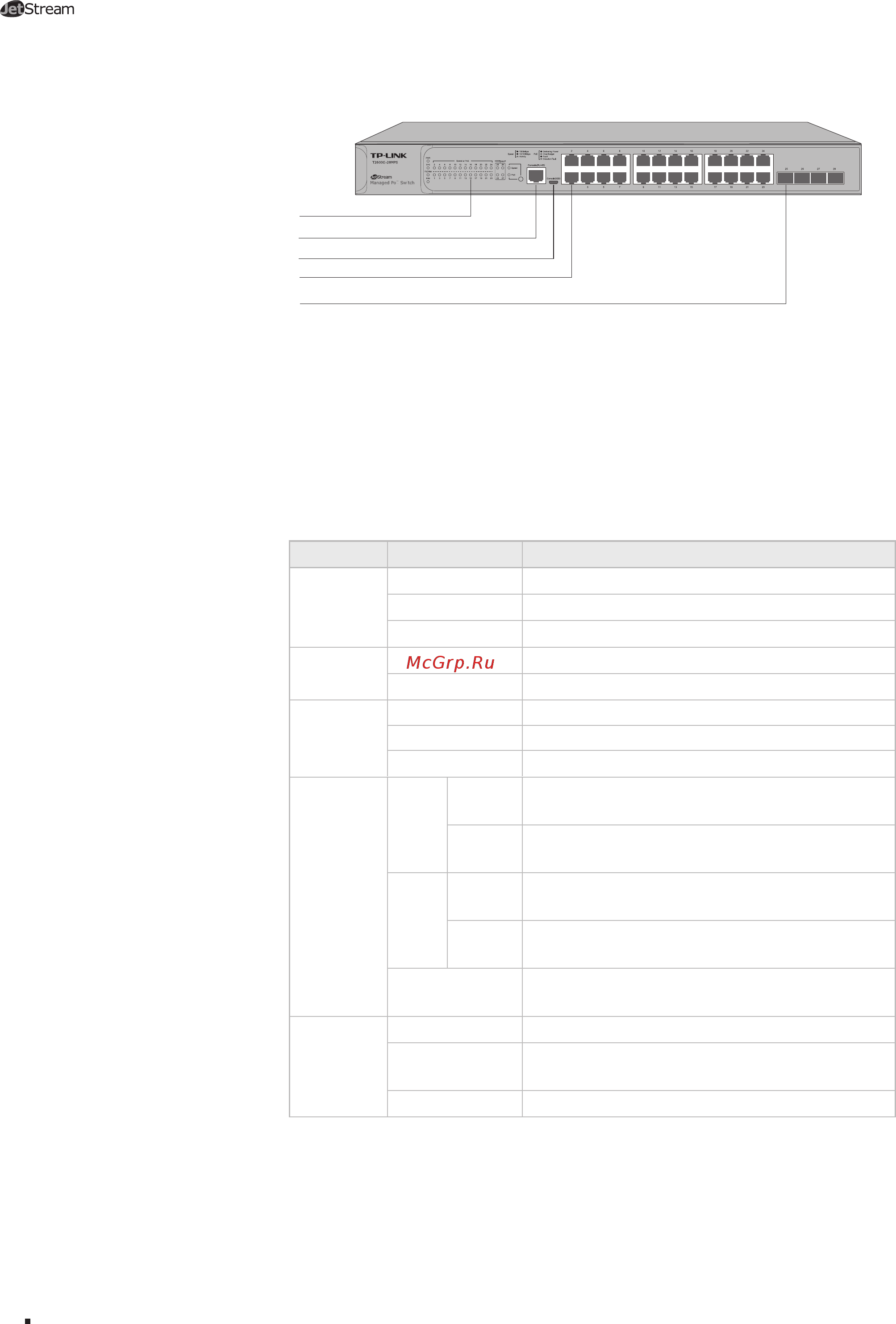

The front panel of T2600G-28MPS is shown as the following figure.
LEDs
10/100/1000 Mbps RJ45 Port
Console (RJ-45)
Console (USB)
SFP Port
Figure 1-3 Front Panel of T2600G-28MPS
T2600G-28MPS has an LED mode switch button which is for switching the LED
status indication. When the Speed LED is on, the port LED is indicating the data
transmission rate. When the PoE LED is on, the port LED is indicating the power
supply status. By default the Speed LED is on. Pressing the mode switch button, the
Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off
after being on for 60 seconds and the Speed LED will light up again.
When the Speed LED is on, the port LED is indicating the data transmission status.
LEDs
LED Status Indication
PWR
On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Flashing Power supply is abnormal.
SYS
Flashing The switch works properly.
On/Off The switch works improperly.
FAN
Green All the fans work properly.
Yellow Not all the fans work properly.
Off The switch works improperly.
Speed or PoE
(Por t 1-24
）
Green
On
A 1000Mbps device is linked to the corresponding port,
but no activity.
Flashing
A 1000Mbps device is linked to the corresponding port
and data is being transmitted or received.
Yellow
On
A 10/100Mbps device is linked to the corresponding
port, but no activity.
Flashing
A 10/100Mbps device is linked to the corresponding port
and data is being transmitted or received.
Off
No device is linked to the corresponding SFP port but
no activity.
1000Base-X
(Port 25-28)
On
There is a device linked to the corresponding port.
Flashing
The corresponding SFP port is transmitting or receiving
data.
Off There is no device linked to the corresponding SFP port.
