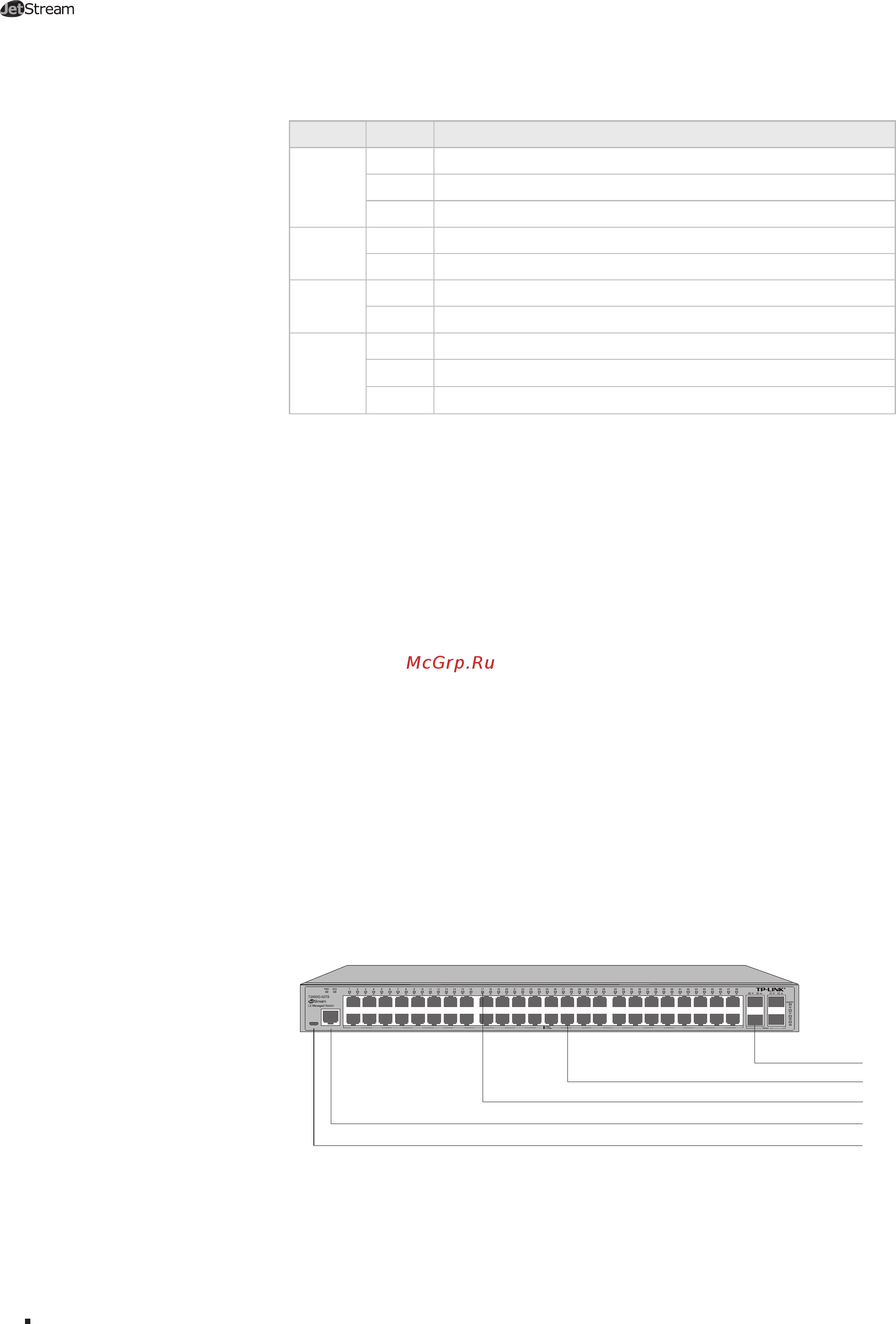

02
Gigabit L2 Managed Switch
Introduction
LEDs
LED Status Indication
PWR
On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Flashing Power supply is abnormal.
SYS
Flashing The switch works properly.
On/Off The switch works improperly.
1000Mbps
On A device is linked to the corresponding port and running at 1000Mbps.
Off A 10/100Mbps device or no device is linked to the corresponding port.
Link/Act
On A device is linked to the corresponding port and running properly.
Flashing Data is being transmitted or received.
Off No device is linked to the corresponding port.
Console (RJ-45) Port
Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the switch.
Console (USB) Port
Designed to connect with the USB port of a computer for monitoring and configuring
the switch. The switch has an RJ-45 console port and a micro-USB console port
available. Console input is active on only one console port at a time. By default, the
micro-USB connector takes precedence over the RJ-45 connector.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each 10/100/1000Mbps RJ45 port has a corresponding 1000Mbps LED
and Link/Act LED.
SFP Port
Designed to install the SFP module. T2600G-28TS features 4 individual SFP ports
and supports 1000M SFP module connection only.
The front panel of T2600G-52TS is shown as the following figure.
ConsoleConsole(USB)
Console (USB)
10/100/1000Mbps RJ45 Port
Console (RJ-45)
LEDs
SFP Port
Figure 1-2 Front Panel of T2600G-52TS
Console (USB) Port
Designed to connect with the USB port of a computer for monitoring and configuring
