Gigabit L2 Managed Switch

Introduction

Port Feature

Model 10/100/1000Mbps RJ45 Port SFP Port Console Port

T2600G-28TS 24 4 2

T2600G-52TS 48 4 2

T2600G-28MPS 24 4 2

■

Rear Panel

Due to the similarity of T2600G-28TS, T2600G-52TS and T2600G-28MPS in the rear

panel, here T2600G-28TS is used as an example.

100-240V~50/60Hz 0.5A

Grounding Terminal

Kensington Security Slot

Power Socket

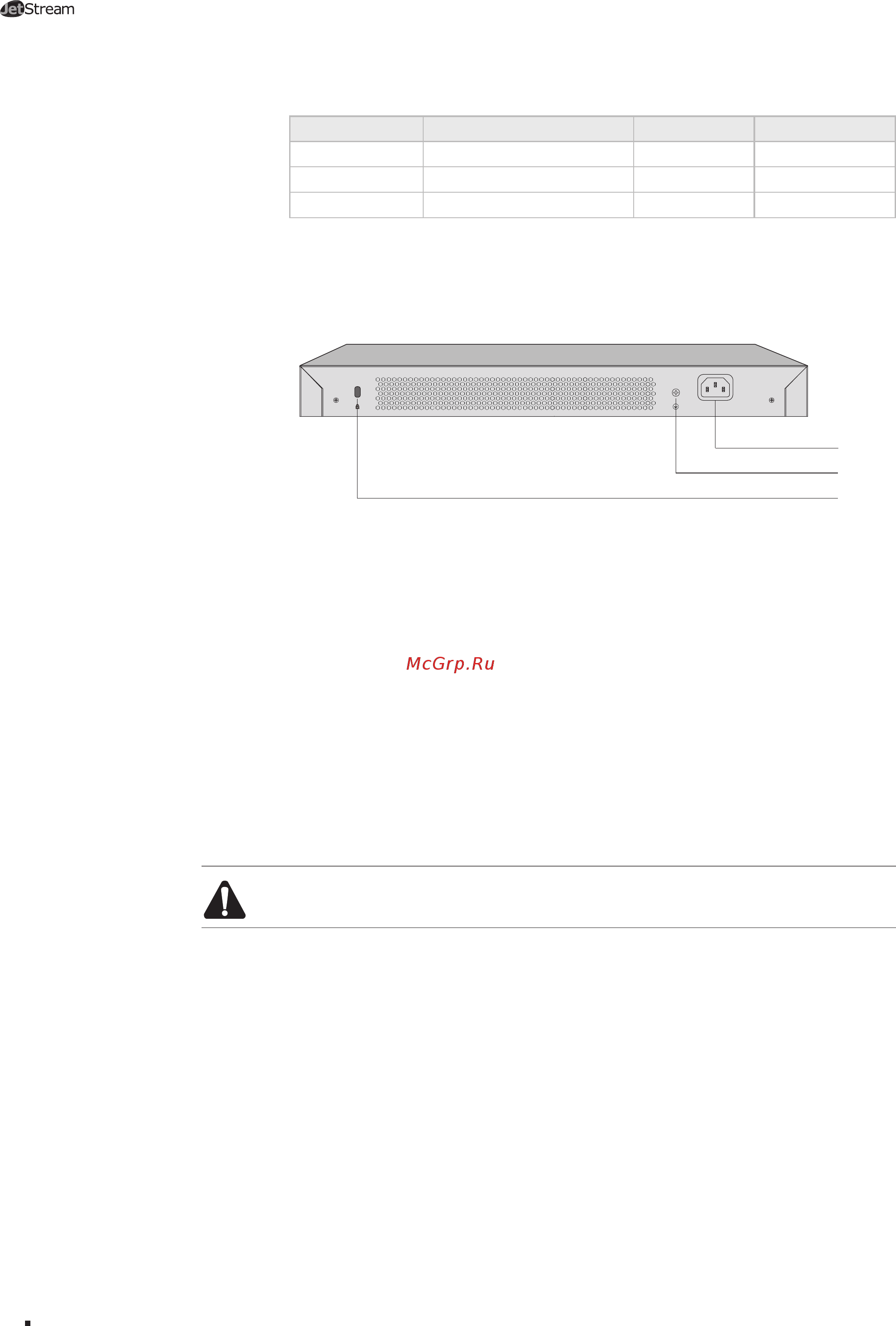

Figure 1-4 Rear Panel of T2600G-28TS

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being

stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Caution: Please use the provided power cord.
